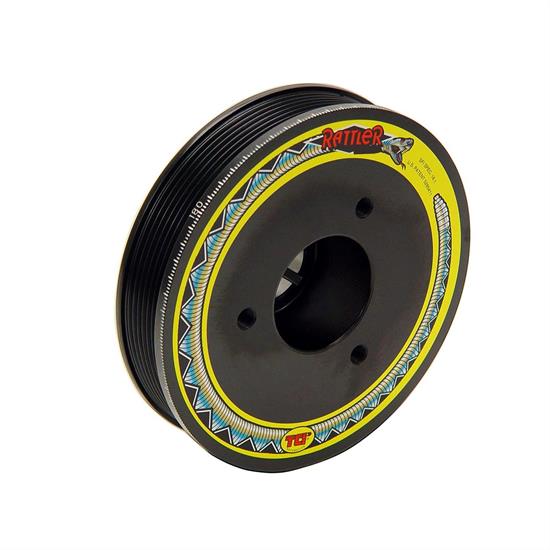

TCI 870030 LS Internal balance Rattler
TCI 870030 LS Internal balance Rattler

TCI 870030 LS Internal balance Rattler

Chevy LS V8, 18.1 SFI Rating, Steel, Black anodized, Degree Markings

0 Reviews | 1 Answered Question
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Limited Qty
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
TCI 870030 LS Internal balance Rattler
TCI 870030 LS Internal balance Rattler
TCI 870030 LS Internal balance Rattler
X
TCI 870030 LS Internal balance Rattler
Zoomed In Image
Part # 282870030
$396.95
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

MFG. Part #:
870030
SFI Rating:
18.1
Material Type:
Steel
Finish:
Black anodized
Sold in Quantity:
Each
Engine Balance:
Internal
Degree Markings:
Yes
GTIN Code:
788120041157
Harmonic Balancer Construction:
Elastomer
Mounting Hardware Included:
No

Info

All internal combustion engines display crankshaft torsional vibration. As the piston rises and falls so does cylinder pressure. The changing pressure results in forces being transmitted along the connecting rod and applied to the crankshaft journal. The TCI Rattler counteracts those vibrations by using internal rollers that automatically offset twisting forces that cause vibration (see Fig. 1). The Rattler is an absorber that eliminates the root cause of torsional vibration. It is effective for the entire RPM range and extends crankshaft and bearing life, as well as increases valve train stability and life. The design does not utilize viscous fluids and requires virtually no maintenance. And the unit s timing marks are etched onto the body and cannot move relative to crankshaft centerline. The Rattler is also lighter in weight than most units of the same size and material construction.

This TCI Rattler Harmonic Balancer is designed to fit 3-Bolt Pulley Chevrolet LS Series engines. This balancer is for internally balanced engines only. Overall Diameter - 6.500.

Application

2008 Chevy LS V8 L92
2008 Chevy LS V8 L99
2008 Chevy LS V8 LS3
2008 Chevy LS V8 LSA
1997-2004 Chevy LS V8 LS1
1997-2004 Chevy LS V8 LS6
2005-2007 Chevy LS V8 L76
2005-2007 Chevy LS V8 LQ4
2005-2007 Chevy LS V8 LQ9
2005-2007 Chevy LS V8 LS2
2005-2007 Chevy LS V8 LY6

Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
