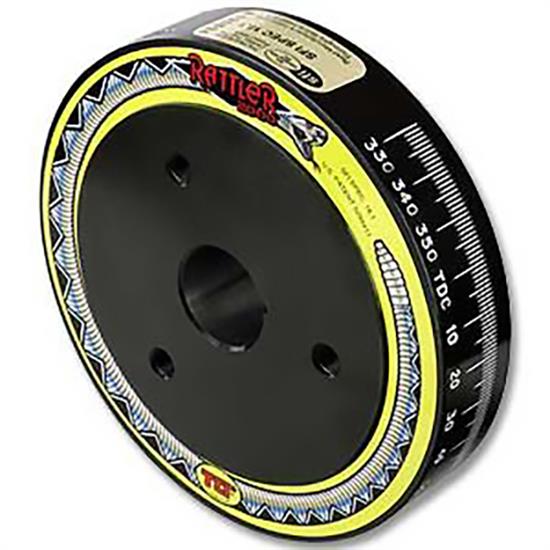

TCI 870001 Chevy S/B V8 Int Balance Rattler Harmonic Balancer
TCI 870001 Chevy S/B V8 Int Balance Rattler Harmonic Balancer

TCI 870001 Chevy S/B V8 Int Balance Rattler Harmonic Balancer

Chevy Small Block V8, 6.29" Outside Diameter, 18.1 SFI Rating, Steel, Black powdercoated

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
TCI 870001 Chevy S/B V8 Int Balance Rattler Harmonic Balancer
TCI 870001 Chevy S/B V8 Int Balance Rattler Harmonic Balancer
X
Zoomed In Image
We estimate this item will ship on or before June 10th.
Part # 282870001
Save 13%
$297.99
$343.75
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for TCI Automotive to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

MFG. Part #:
870001
Outside Diameter:
6.29"
SFI Rating:
18.1
Material Type:
Steel
Finish:
Black powdercoated
Sold in Quantity:
Each
Engine Balance:
Internal
Degree Markings:
Yes
GTIN Code:
788120020374
Harmonic Balancer Construction:
Nine internal rollers
Mounting Hardware Included:
No

Info

All internal combustion engines display crankshaft torsional vibration. As the piston rises and falls so does cylinder pressure. The changing pressure results in forces being transmitted along the connecting rod and applied to the crankshaft journal. The TCI Rattler counteracts those vibrations by using internal rollers that automatically offset twisting forces that cause vibration (see Fig. 1). The Rattler is an absorber that eliminates the root cause of torsional vibration. It is effective for the entire RPM range and extends crankshaft and bearing life, as well as increases valve train stability and life. The design does not utilize viscous fluids and requires virtually no maintenance. And the unit s timing marks are etched onto the body and cannot move relative to crankshaft centerline. The Rattler is also lighter in weight than most units of the same size and material construction.

This TCI Rattler Harmonic Balancer is designed to fit 3-Bolt Pulley Small Block Chevrolet engines. This balancer is for internally balanced engines only. Overall Diameter - 6.290.

Application

1955-1957 Chevy Small Block V8 265
1957-1967 Chevy Small Block V8 283
1962-1969 Chevy Small Block V8 327
1967-1968 Chevy Small Block V8 302
1967-1995 Chevy Small Block V8 350
1968-1973 Chevy Small Block V8 307
1975-1976 Chevy Small Block V8 262
1976-1995 Chevy Small Block V8 305
1979-1982 Chevy Small Block V8 267
Some parts are not legal for use in California or other states with similar laws/regulations
