TCI 1963-1972 Chevy C10 Torque Arm Rear Suspension Kit w/o Sway Bar
TCI 1963-1972 Chevy C10 Torque Arm Rear Suspension Kit w/o Sway Bar

TCI 1963-1972 Chevy C10 Torque Arm Rear Suspension Kit w/o Sway Bar

63-72 Chevy C10 Pickup, 63-72 Chevy C10 Suburban, 63-67 Chevy C10 Panel, 63-65 GMC 1500 Series

0 Reviews | 0 Answered Questions
In Stock
Select your vehicle to verify fitment.
Select Vehicle
TCI 1963-1972 Chevy C10 Torque Arm Rear Suspension Kit w/o Sway Bar
TCI 1963-1972 Chevy C10 Torque Arm Rear Suspension Kit w/o Sway Bar
Zoomed In Image
Part # 91053651021
Add to Cart
Call to Order
Add to Buildlist

Videos & Articles


Rear Suspension Type:
Solid Axle
Trailing Arm Style:
Torque Arm
Suspension Kit Type:
Suspension Height Adjustment:
5 Inch Lowered
Spring Type:
Shocks Included:
Shock Adjustability:
Single Adjustable
Axle Housing Included:
Material Type:
MFG. Part #:
Sold in Quantity:


Improve the handling of your 1963-1972 Chey C10 with this rear suspension kit from Total Cost Involved. This suspsension kit will give your truck a lower stance, lower the crossmember approximately 5" which will give your truck a better genter of gravity with less body roll. This kit will give you more controlled handling by the coil-over shocks and the rear sway bar with no suspension binding variables. True bolt-in system that requires no cutting in the truck bed makes for easy installation. (Cutting of the rail for C-Notch is required.) This kit utilizes multiple shock mounting points to further reduce installation time and possible installation error. This rear suspension kit is engineered to work seamlessly with most aftermarket rear mounted gas tanks. This kit is proudly made in the USA and is all heli-arc welded for the highest quality and strength.

Kit includes:

  • RideTech– 5” Stroke Single Adjustable Coil-Over Shocks
  • Energy Suspension - polyurethane greasable bushings
  • Bolt-on Torque Arm Differential Plate for multiple rear end applications
  • 1-1/2” x .156w U.S. DOM Trailing Arms with adjustable & greasable 2” Johnny Joints
  • Heavy Duty Rear Coil-Over Crossmember and brackets
  • Lowered stance and center of gravity
  • Greasable urethane bushings
  • Dramatically improves handling and braking
  • Rear Coil-Over Torque Arm Suspension
  • 1-1/4” x .120w U.S. DOM Panhard Bar
  • Bolt-on C-Notch Plate
  • Black Powder Coated Springs
  • Greasable Urethane Bushing
  • RideTech - Coil-Over Shocks
  • Detailed Installation Manual

Instructions (PDF)

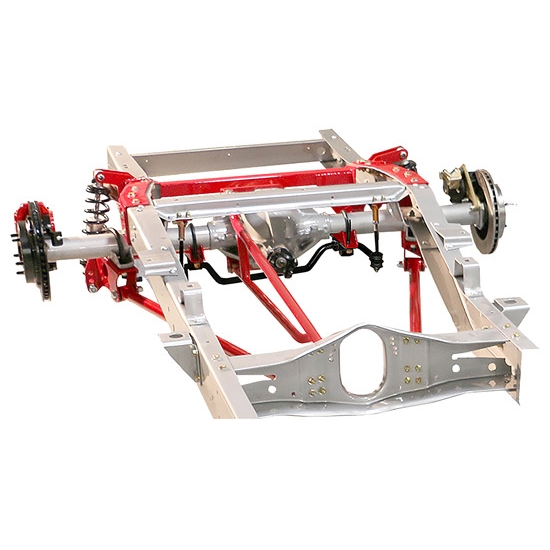

Note:  Vendor Show Package shown in photo - powder coating is not included.  Brakes, rear axle housing and frame rails are shown for reference only and are not included as part of kit contents.

Some parts are not legal for use in California or other states with similar laws/regulations
