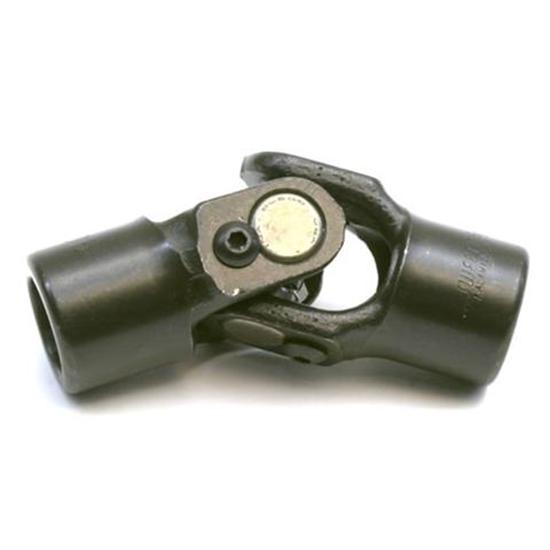

Sweet Mfg U-Joint, 1 In DD to 3/4 DD, IDIDIT/Flaming River Column
Universal Fit, Single Joint Universal Joint Style, 1" DD End #1, 3/4" DD End #2, Steel
- Features needle bearing u-joints
- They have full compliment bearings
- Made of the highest quality for racing
- Features Forged Vanadium steel yokes and u-joint
- There is a 3/4" DD on one end and a 1" DD on the other
Dont jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing.
These steering universal joints are CNC machined from aircraft steel to precision tolerances. The sealed needle bearing design will last ten times longer than a standard pin and block universal joint. The unique nickel plating prevents rust without the hassle of painting.
- Full compliment bearings
- Forged Vanadium steel yokes and u-joint
- Highest quality for racing or street
- Features needle bearing u-joints
Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1". DO NOT interchange these u-joints.
Item DetailsGM columns measure slightly less than 1" while Ididit and Flaming River columns measure a true 1".
ApplicationWhen purchasing U-Joints, 3 easy steps will help ensure that they will be correct for your application.
Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.
Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.
With these two pieces of information at hand, refer to our chart to find the appropriate part number of the ujoint for your specific application.
Tech Tip #1: When using more than two universal joints in a system, a support heim must be used.
Tech Tip #2: Increasing a U-Joint's angle of operation beyond 30° dramatically increases the stress on the joint, weakening the whole steering mechanism. If a greater angle is needed, add another u-joint.
