#9103220
Sweet Mfg. Double U-Joint, 1 In-48 Spline to 3/4 In Round, GM Column
3 Reviews
|
1 Question
$159.99
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Double Joint Universal Joint Style
See more details
Key Specs
| Universal Joint Style | Double Joint |

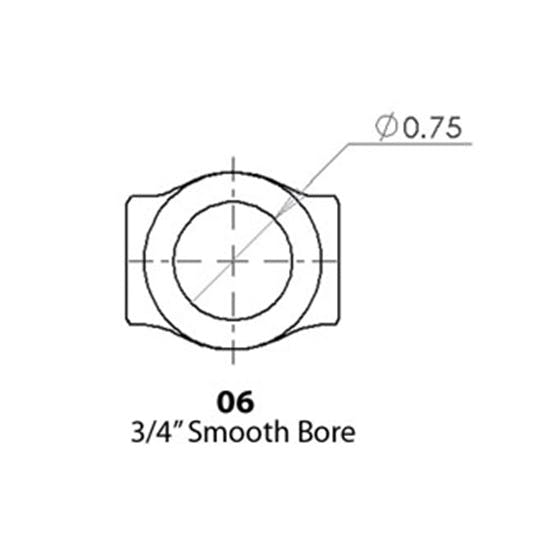

| End #1 | 3/4" Round |

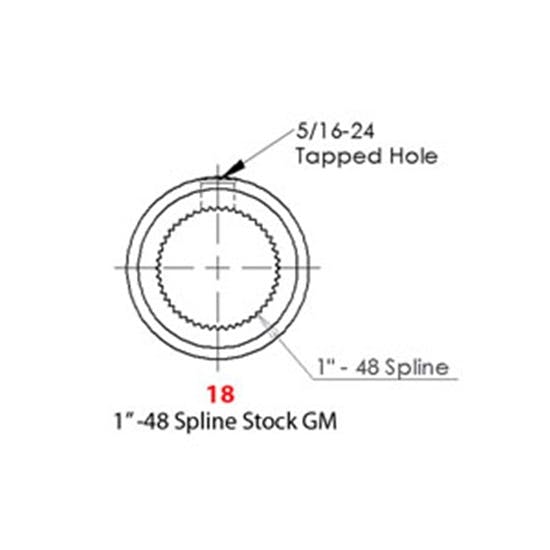

| End #2 | 1"-48 Spline |

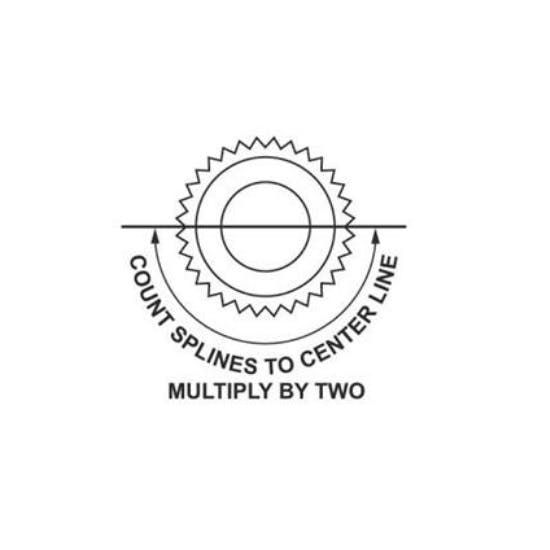

| Spline Count | 48 |
| Spline OD | 1.00" |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySweet Manufacturing 401-80618 Details
Sweet Manufacturing 401-80618 Details
Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints. 5-5/8" overall length.
- Overall length is 5-1/2”
- O.D. at ends is 1.12”
- O.D. in the middle is 1.476”
- O.D. at caps is 1.350”
- O.D. at cap retainer screws is 1.545”
- Length of center section is 2-3/4”
Item Details
GM Column1"-48 Spline
Guides & Documents
Sweet Manufacturing 401-80618 Specifications
Sweet Manufacturing 401-80618 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 401-80618 |
| Brand | Sweet Manufacturing |
| Universal Joint Style | Double Joint |
| End #1 | 3/4" Round |
| End #2 | 1"-48 Spline |
| Spline Count | 48 |
| Spline OD | 1.00" |
| GENERAL | |
| Spline End | 1"-48 |
| Overall Length | 5.6" |
| Outside Diameter | 1.355" |
| Max Operating Angle | 70 ° |
| Set Screw Included | Yes |
| Material Type | Steel |
| Finish | Oxide |
| Color | Black |
| Sold in Quantity | Each |
