Product Summary

Universal Fit, Single Joint Universal Joint Style

    Key Specs

    Universal Joint StyleSingle Joint
    End #11" DD GM OEM
    End #23/4"-36 Spline
    Spline Count36
    Spline OD.750"

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

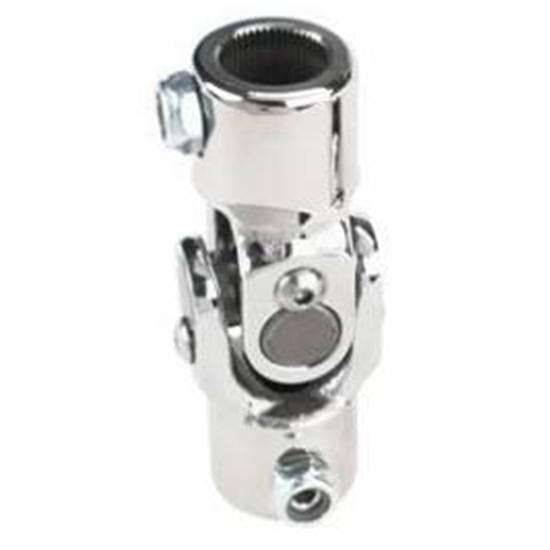

    Sweet Manufacturing 401-61220 Details

    Dont jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. They feature a double D end to make use of the double D shaft.

    • Full compliment bearings
    • Forged Vanadium steel yokes and u-joint
    • Highest quality for racing or street
    • Features needle bearing u-joints
    • 3/4"-36 Spline
    Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

    Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

    Item Details

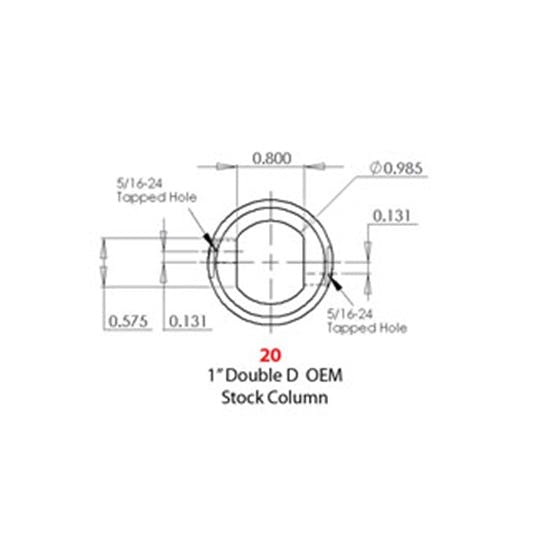

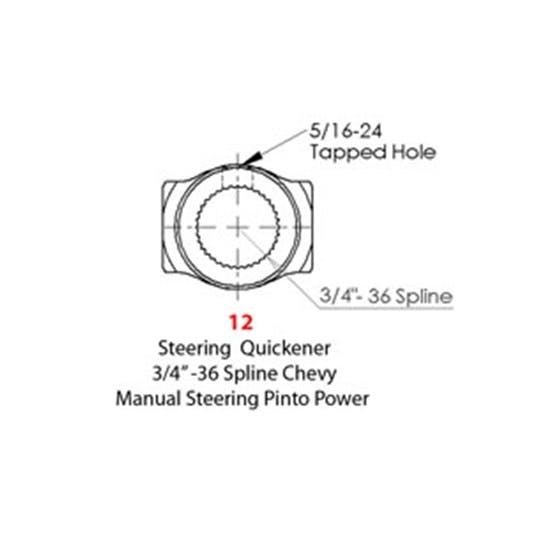

    3/4"-36 Spline to 1" Double D
    GM Manual, Mustang II Power


    When purchasing U-Joints, 3 easy steps will help ensure that they will be correct for your application.

    STEP 1

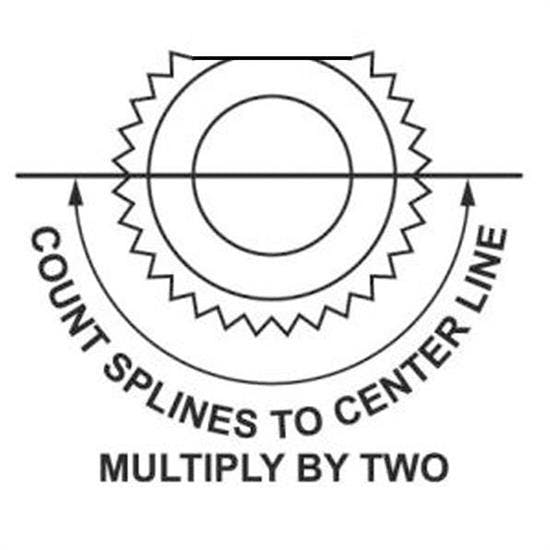

    Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.

    STEP 2

    Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.

    STEP 3
    With these two pieces of information at hand, refer to our chart to find the appropriate part number of the ujoint for your specific application.

    Sweet Manufacturing 401-61220 Specifications

    MFG. Part #401-61220
    BrandSweet Manufacturing
    Universal Joint StyleSingle Joint
    End #11" DD GM OEM
    End #23/4"-36 Spline
    Spline Count36
    Spline OD.750"
    Spline End3/4"-36
    Overall Length3.75"
    Outside Diameter1.355"
    Max Operating Angle30 °
    Set Screw IncludedYes
    Material TypeSteel
    Sold in QuantityEach
    NotesFor OEM GM columns, not for use with aftermarket columns.
