Product Summary

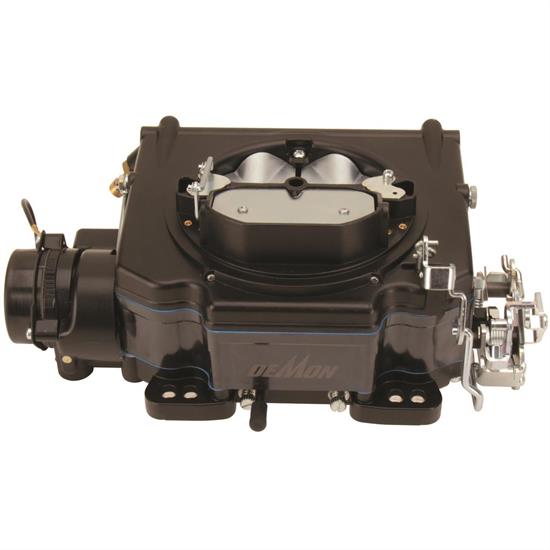

Universal Fit, 4-Barrel Carburetor Barrels, 625 CFM CFM

  • It is developed from the ground up with great looks and ease of use in mind
  • This 625 CFM carburetors is ideal for use on most stock to mildly modified V8s
  • The dual mounting bolt pattern fits any street 4bbl intake (square flange or spread bore)
  • An aerospace composite fuel bowl offers significant heat insulation benefits over aluminum fuel bowl
  • Small 1-3/8" primary throttle bores combined with proven Triple-Stack™ boosters deliver amazingly crisp throttle response and drivability

Key Specs

Carburetor Barrels4-Barrel
Fuel TypeGasoline
CFM625 CFM
Carburetor Flange Type4-Barrel Square Bore
FinishShadow Black

Need To Know

This Product Will Ship Free

Quick and Easy Returns

Details

WICKED POWER! This black Street Demon™ redefines the street carburetor with clean looks and ease of use! The Street Demon offers enthusiasts a straightforward four barrel carburetor designed to deliver a stable idle, amazingly crisp throttle response and smooth performance. Its optimized calibration and dual mounting pattern make it Run–Ready™ for a large variety of engines and vehicles!
  • 625 CFM airflow - ideal for use on most stock to mildly modified V8s
  • Dual mounting bolt pattern - fits any street 4bbl intake (square flange or spread bore)
  • Electric Choke Management means easy cold starts
  • Single fuel inlet for simple installation
  • Aerospace Composite fuel bowl offers significant heat insulation benefits over aluminum fuel bowl - keeps fuel up to 20° cooler for optimum performance with modern fuels
  • Integrated fuel bowl/main body design with gasket above fuel level and no plugged passages to eliminate all potential leak paths
  • Small 1-3/8" primary throttle bores combined with proven Triple-Stack™ boosters deliver amazingly crisp throttle reponse and drivability, superior fuel atomization and improved fuel economy
  • Goggle Valve Secondary (GVS™) throttle plate delivers over twice the aire flow of the primary bores for power you can hear and feel
  • GVS™ makes total air flow 625 CFM while maintaining the crisp throttle response delivered by small primary bores
  • Secondary air valve control - torsion spring valve control/adjustment permits seamless primary to secondary throttle response regardless of the throttle opening rate (unique contoured profile developed for better cylinder to cylinder fuel distribution)
  • Smooth styling - patented timeless design fits modern as well as traditional themed vehicles (Patent No.: US D648,746 S)
  • Developed from the ground up with great looks and ease of use in mind
  • Easy to clean and maintain
  • One-piece air horn assembly
  • 2 Stage metering rods control easily accessible without carburetor disassembly or removal
  • 4 optional vacuum step-up springs available to dial in hi-end performance
  • Optional sets of metering rods available to refine calibration
  • Multiple primary and secondary main jet orifice sizes available
  • Patent pending mechanical design
  • Integrated 700R4/200R4 transmission kickdown cable mounting location for proper shifts
  • Ford A/T kickdown(does not work with AOD transmissions)
  • Available TPS kit allows use with 4L60 and 4L80 transmissions

Charts

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Specifications

KEY SPECS
MFG. Part #1901BK
BrandDemon Carburetion
Carburetor Barrels4-Barrel
Fuel TypeGasoline
CFM625 CFM
Carburetor Flange Type4-Barrel Square Bore
FinishShadow Black
GENERAL
Choke TypeElectric
CFM Range600-699 CFM
Material TypeAluminum / Composite
ColorBlack
Secondary TypeMechanical
Gasket(s) IncludedYes
New or RemanufacturedNew
Supercharged ApplicationNo
Bolt Hole Pattern5.160" x 5.625"
GTIN Code792898400771
Sold in QuantityEach
