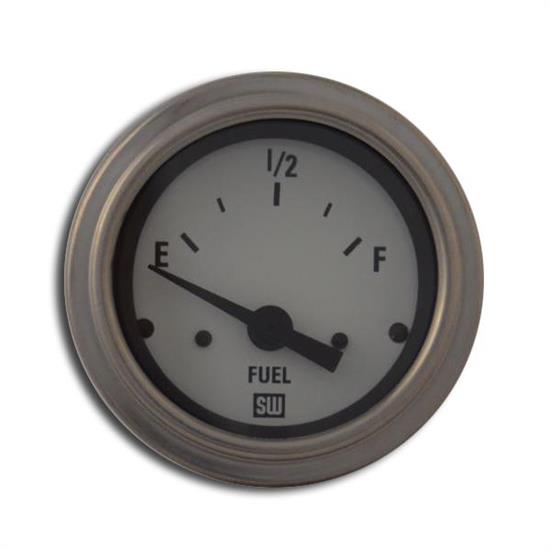

Stewart Warner 82303-WHT Deluxe 2-1/16 In Elec Fuel Level Gauge
Universal Fit, 2.06" Body Diameter, 240 ohms empty, 33 ohms full Ohm Range, Electric Gauge Type
Stewart Warner Deluxe Series Fuel Level Gauge features a white face with black lettering, polished stainless steel bezels and back lighting for night time visibility.
Individual Deluxe Series gauges do not come with sending units.
- 12 Volt
- 2-1/16" O.D.
- Lighted back
- Stainless bezel
- White face
- Requires sender, (sold separately)
Note: This gauge requires a sending unit operating from 33-240 ohms. Most GM senders are 0-90 ohms and will not operate the gauge correctly.
ChartsProduct Instructions (PDF)
