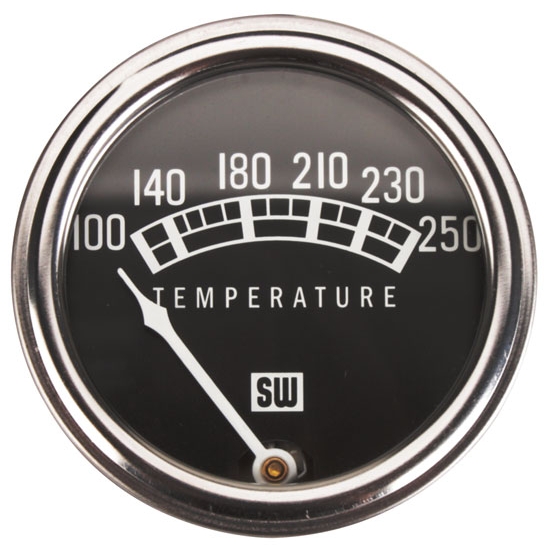

Stewart Warner 82210-36 Std Mech Water Temp Gauge-36 Inch Capillary
Stewart Warner 82210-36 Std Mech Water Temp Gauge-36 Inch Capillary
Universal Fit, 2-1/16" Gauge Diameter, Analog Gauge Series, Mechanical Gauge Style, Black
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Stewart Warner 82210-36 Std Mech Water Temp Gauge-36 Inch Capillary
X
Part # 66582236
$54.99
$59.99
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- Water temperature gauge has a range of 100-250 °F
- Measures 2-1/16" in diameter and comes with a stainless steel bezel
- White needle and lettering is designed to pop again the black background
- Features a sealed care designed to keep dust and debris out
- Comes with a 36" capillary tube for installation
Details
Gauge Diameter:
2-1/16"
Gauge Series:
Analog
Gauge Style:
Mechanical
Gauge Face Color:
Black
Lettering Color:
White
Needle Color:
White
Gauge Range:
100-250 °F
Body Diameter:
2.04"
Body Length:
.70"
Depth:
2.60"
Center to Center:
1.69"
Stud Length:
.75"
Stud Diameter:
.19"
Tube Length:
36.00"
Bezel Finish:
Stainless
MFG. Part #:
82210-36
Sold in Quantity:
Each
Info
Stewart Warner Standard Series 2-1/16" diameter gauges feature classic white graphics on a black face dial with a white pointer. Includes a flat, bright stainless steel bezel. Sealed case, non-illuminated gauge.
Water temperature gauge reads from 100-250 degrees F. Includes a 36" capillary tube.
Charts
Product Instructions (PDF)Important Messages:
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
