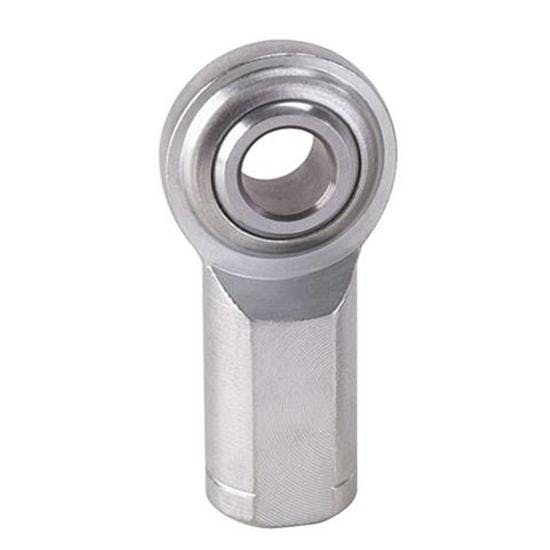

Standard Steel Heim Joint Rod Ends, 7/16-20 LH Female

-15%

#1750404

Standard Steel Heim Joint Rod Ends, 7/16-20 LH Female

Discontinued
Item is new and in unused condition. This product will no longer be stocked by Speedway Motors
This standard rod end is a general purpose two-piece design making it a very economical and replaceable item

Thread:

Left Hand

$5.09

/each

In Stock

$5.99

Save $0.90

Item is new and in unused condition. This product will no longer be stocked by Speedway Motors.

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, LH Female Thread Type, Steel, Natural

Discontinued
Item is new and in unused condition. This product will no longer be stocked by Speedway Motors
This standard rod end is a general purpose two-piece design making it a very economical and replaceable item
The carbon steel body and a hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
Useful for a wide variety of applications including clutch, brake, steering, and suspension components for mild to moderate horsepower applications
7/16"-20 LH female threads ensure strength and precision
21 degrees of misalignment provides a wide range of motion without binding

See more details

Key Specs

Garage Sale Type	Discontinued
Thread Type	LH Female
Rod End Attachment	Female Threads/Eyelet
Thread Pitch	7/16"-20
Material Type	Steel

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Ineligible for Return

Contains items that cannot be returned

Speedway Motors 1750404 Details

Standard rod ends are for general purpose applications and are a 2-piece design with a low carbon steel body and a hardened steel ball without a race (metal to metal contact).

Applications: Clutch, brake, steering linkage, & suspension components on moderate horsepower applications.

Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Item Details

2-3/8" overall length
1" thread length
1-13/16" from end to mounting hole center

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Speedway Motors 1750404 Specifications

KEY SPECS
MFG. Part #	1750404
Brand	Speedway Motors
Garage Sale Type	Discontinued
Thread Type	LH Female
Rod End Attachment	Female Threads/Eyelet
Thread Pitch	7/16"-20
Material Type	Steel
Hole Diameter	0.438"
Rod End Style	Metal-to-metal
Rod End Construction	2-piece
Grease Fitting	No
Finish	Zinc Plated
Color	Natural
Bushing Material	PTFE
Jam Nut Included	No

GENERAL
Sold in Quantity	Each
