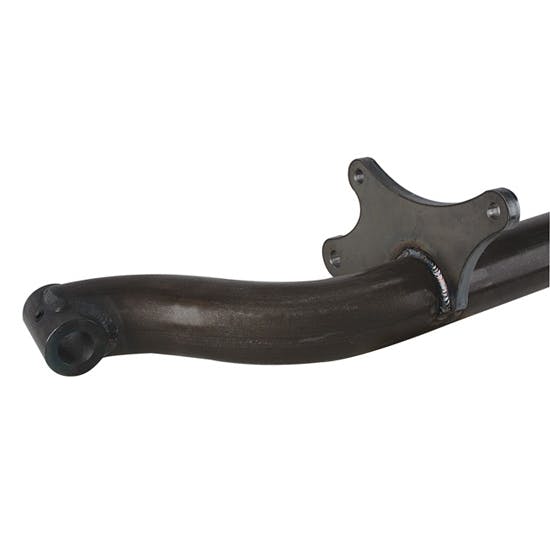

Spring Over Front Tube Axle, Chevy Spindle, 4 Inch Drop, Plain

#91335113

Spring Over Front Tube Axle, Chevy Spindle, 4 Inch Drop, Plain

For '49-'54 Chevy spindles
4" drop spring over
48" kingpin centers

Finish:

Plain

$547.99

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Chevy/GM Stock Spindle Style, Natural

For '49-'54 Chevy spindles
4" drop spring over
48" kingpin centers
.250" thick, 2" diameter steel tubing with Welded-on radius rod and spring brackets for 26" spring (91033026)
Plain finish

See more details

Key Specs

Spindle Style	Chevy/GM Stock
Straight Axle Style	Tube
Dropped Axle	Yes
Suspension Height Adjustment	4 Inch Lowered
Tube O.D.	2"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 91335113 Details

Speedway Double Dropped axles are constructed from 2" x .250" wall steel tubing. They feature welded-on radius rod and spring brackets and work with 1949-1954 Chevy style spindles.

Spring-over axle design
48" eye-to-eye
Use with 26" spring

Charts

Spring Over Suspension Image (JPG)

Leaf Spring Measuring Guide (JPG)

Caster Angle Illustration (GIF)

Specs

Axle Bracket Thickness: 3/8"
Axle Bracket Spacing: 5" eye to eye (outside holes)
Spring Shackle Pivot Hole to Center of the Axle: 3-3/4"

Guides & Documents

Front Spring Choices for Traditional Straight Axle Hot Rods

Solid Axle Choices for Your Traditional Hot Rod

Straight Axles Technical Information (91335113)

CA Prop 65

Speedway Motors 91335113 Specifications

KEY SPECS
MFG. Part #	91335113
Brand	Speedway Motors
Spindle Style	Chevy/GM Stock
Straight Axle Style	Tube
Dropped Axle	Yes
Suspension Height Adjustment	4 Inch Lowered
Tube O.D.	2"
Finish	Natural
Material Type	Steel

GENERAL
King Pin Centers	48"
Drilled	No
Material Thickness	0.250"
Front Leaf Spring Style	Spring-Over Axle
Sold in Quantity	Each

Ratings & Reviews

Be the first to write a review.

Questions & Answers

3 Questions • 3 Answers

Sort Questions

what is the measurement between radius rod brackets, and from center of king pin to radius rod plate, this is for a custom 54 chevy truck, far from stock.

by Young blood

• 7 years ago

1 answer

View Answer

What size is the kingpin this axle

by Rich

• 10 years ago

1 answer

View Answer

If this tube has welded on radious rod brackets, how would you mount your shocks?

• 14 years ago

1 answer

View Answer

3 of 3 questions shown
