#91339102

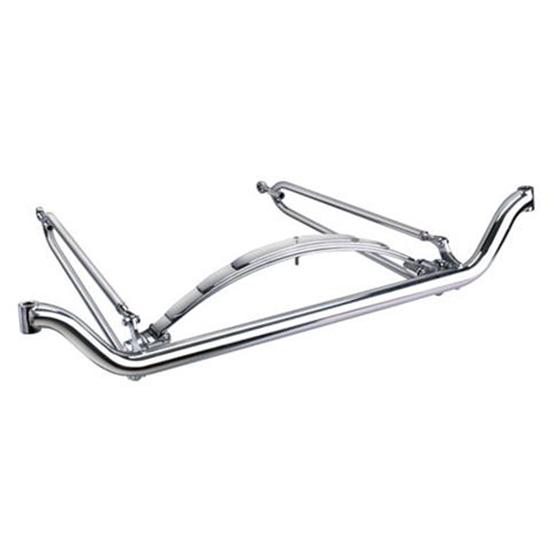

Spring-Behind 4 In Drop Tube Axle Front End for Ford Spindles
- 37-'48 Ford Spindles
- Max car weight 2500 lbs
- Stainless steel
See More
$1,619.99
kit
On Backorder
$1,704.80
Save $84.81
This part is Backordered. We currently do not have an estimate when this item will ship.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Straight Axle Front Suspension Type
- 37-'48 Ford Spindles
- Max car weight 2500 lbs
- Stainless steel
- Two 1-3/4" spring shackles w/ nylon bushings, two spring pivots, 26" 4-leaf spring w/ nylon buttons, two axle brackets, 48" eye-to-eye 4" dropped tube axle, two 27" radius rods, four clevises with jam nuts and bolts, two 5/8" Heims with jam nuts
- Spring U-bolts and frame mounts sold separately
Comes as a Kit
View Kit Components
See more details
Key Specs
| Front Suspension Type | Straight Axle |
| Suspension Height Adjustment | 4 Inch Lowered |
| Control Arm Style | Radius Rod |
| Shock Type | Not Included |
| Spring Type | Leaf Spring |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91339102 Details
Speedway Motors 91339102 Details
For 1937-1948 early Ford passenger car spindles. Maximum car weight 2500 lbs.
Kit includes:
- Two 1-3/4" spring shackles w/ nylon bushings
- Two spring pivots
- 26" 4-leaf spring w/ nylon buttons
- Two axle brackets
- Tube axle, 48" eye-to-eye, 4" dropped
- Two 27" radius rods
- Four clevises with jam nuts and bolts
- Two 5/8" Heims with jam nuts
- Spring U-bolts sold separately
Charts
Guides & Documents
Speedway Motors 91339102 Specifications
Speedway Motors 91339102 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91339102 |
| Brand | Speedway Motors |
| Front Suspension Type | Straight Axle |
| Suspension Height Adjustment | 4 Inch Lowered |
| Control Arm Style | Radius Rod |
| Shock Type | Not Included |
| Spring Type | Leaf Spring |
| Finish | Polished |
| Bolt Pattern | Not Applicable |
| Rotor Diameter | Not Included |
| Spindle Style | Ford Stock |
| Dropped Spindles | No |
| Dropped Axle | Yes |
| Dropped Control Arms | No |
| Front Leaf Spring Style | Spring-Behind Axle |
| Spindles Included | No |
| Steering Included | No |
| Welding Required | No |
