$1,349.99

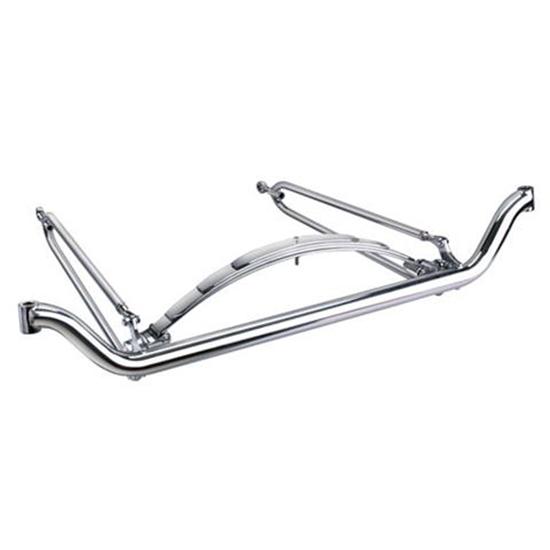

Spring-Behind 4 In Drop Tube Axle Front End - Chevy Spindles Stainless
Spring-Behind 4 In Drop Tube Axle Front End - Chevy Spindles Stainless

Spring-Behind 4 In Drop Tube Axle Front End - Chevy Spindles Stainless

Universal Fit, Straight Axle Front Suspension Type, 4 Inch Lowered Suspension Height Adjustment

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Spring-Behind 4 In Drop Tube Axle Front End - Chevy Spindles Stainless
Spring-Behind 4 In Drop Tube Axle Front End - Chevy Spindles Stainless
Spring-Behind 4 In Drop Tube Axle Front End - Chevy Spindles Stainless
X
Spring-Behind 4 In Drop Tube Axle Front End - Chevy Spindles Stainless
Zoomed In Image
Part # 91339104
$1,349.99
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • 49-'54 Chevy Spindles
  • Max car weight 2500 lbs
  • Stainless steel
  • Two 1-3/4" spring shackles w/ nylon bushings, two spring pivots, 26" 4-leaf spring w/ nylon buttons, two axle brackets, 48" eye-to-eye 4" dropped tube axle, two 27" radius rods, four clevises with jam nuts and bolts, two 5/8" Heims with jam nuts
  • Spring U-bolts and frame mounts sold separately

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Front Suspension Type:
Straight Axle
Suspension Height Adjustment:
4 Inch Lowered
Control Arm Style:
Radius Rod
Shock Type:
Not Included
Spring Type:
Leaf Spring
Finish:
Polished
Spindle Style:
Chevy/GM Stock
Dropped Spindles:
No
Dropped Axle:
Yes
Dropped Control Arms:
No
Front Leaf Spring Style:
Spring-Behind Axle
Spindles Included:
No
MFG. Part #:
91339104

Info

For 1949-1954 early Chevy passenger car spindles. Maximum car weight 2500 lbs.

Kit includes:

  • Two 1-3/4" spring shackles w/ nylon bushings
  • Two spring pivots
  • 26" 4-leaf spring w/ nylon buttons
  • Two axle brackets
  • Tube axle, 48" eye-to-eye, 4" dropped
  • Two 27" radius rods
  • Four clevises with jam nuts and bolts
  • Two 5/8" Heims with jam nuts
  • Spring U-bolts sold separately

Front Axle/Suspension Tech Tips (GIF)


Notes

Installation Guide (PDF)

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Spring Behind Front Tube Axle, Chevy Spindle, 4 Inch Drop, Stainless
    Qty x 1
  • Front Hairpin Radius Rods, 27 Inch, Polished Stainless
    Qty x 1
  • Super Glide® T-Bucket Front Spring, Standard Eye, Chrome
    Qty x 1
  • Chrome Plated Chromoly Heim Joint Rod Ends, 5/8-18 RH Male
    Qty x 2
  • Stainless Jam Nut, 5/8 Inch-18 RH NF Fine Thread
    Qty x 6
  • Stainless Steel Smoothie Clevis, 5/8 RH NF Thread, 3/8 Slot & Hole
    Qty x 4
  • Transverse Leaf Spring Shackles w/ Nylon Bushings, Stainless
    Qty x 1
  • Speedway Stainless 1-3/4 Inch Leaf Spring Front Suspension Pivot
    Qty x 2
  • S.S. Bolt Kit for Front End
    Qty x 1
  • Hairpin Front Axle Instruction Sheet
    Qty x 1
