Product Summary

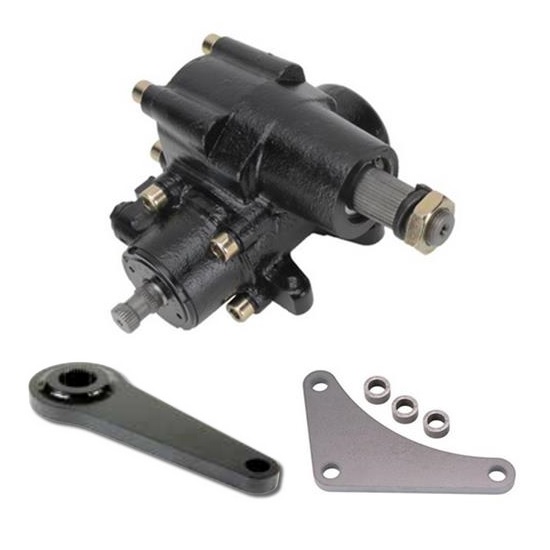

Universal Fit, Power Steering Box Type, Cast Iron

  • Direct bolt in replacement for an existing Vega cross steer set up but requires different U-joints and Pitman arm
  • 13.6:1 steering ratio
  • Common GM power steering hose fittings, 11/16"-18 and 5/8"-18 flare lines
  • Output spline is 32-4 master (GM 525/605 arms)
  • 3/4"-30 input spline for U-joint

Comes as a Kit

Key Specs

MFG. Part #9102340
BrandSpeedway Motors
Steering Box TypePower
Steering Box OrientationRear Steer
Steering System TypeCross-Steer

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

CPP 400 Series Vega Power Steering Box is a compact design power steering box that is an easy bolt on alternative to rack & pinion systems or the traditional Toyota box conversion for classic trucks. Uses 3/4"-30 coupler 910-32280 / u-joint 910-32293, common GM power steering pitman arm or reprooduction arm 910-23401 w/ 32 & 4 spline such as the 525/605 boxes, and the 11/16" & 5/8" inverted flare hoses 617-4837 or 910-32525. This box bolts directly to the manual Vega box frame bracket with no additional modifications or frame bracket alterations required.

  • 13:6:1 steering ratio
  • Cast iron construction
  • 11/16"-18 pressure & 5/8"-18 return inverted flare ports
  • Output spline is 32-4 master (GM 525/605 arms)
  • 3/4-30 spline input



Note:  This power box utilizes the common GM power steering box pitman arm  or reproduction arm 910-23401 with 32 & 4 spline such as the 525/605 boxes, and as such, will NOT accept or utilize the manual Vega box pitman arm.

This steering box will bolt to and can be utilized with the following steering box mounts:

  • 916-32005 Model T-1934 Ford Frame - Steering Box Mount
  • 916-32003 1935-41 Ford Frame -  Steering Box Mount
  • 916-32004 1941-48 Ford Frame Saginaw Steering Box Mount

This steering box will bolt to and can be utilized with the following steering box mounts:

  • 916-32005 Model T-1934 Ford Frame - Steering Box Mount
  • 916-32003 1935-41 Ford Frame -  Steering Box Mount
  • 916-32004 1941-48 Ford Frame Saginaw Steering Box Mount

Specifications

KEY SPECS
MFG. Part #9102340
BrandSpeedway Motors
Steering Box TypePower
Steering Box OrientationRear Steer
Steering System TypeCross-Steer
GENERAL
Steering Ratio13.6:1
Material TypeCast Iron
FinishNatural
Sold in QuantityKit
