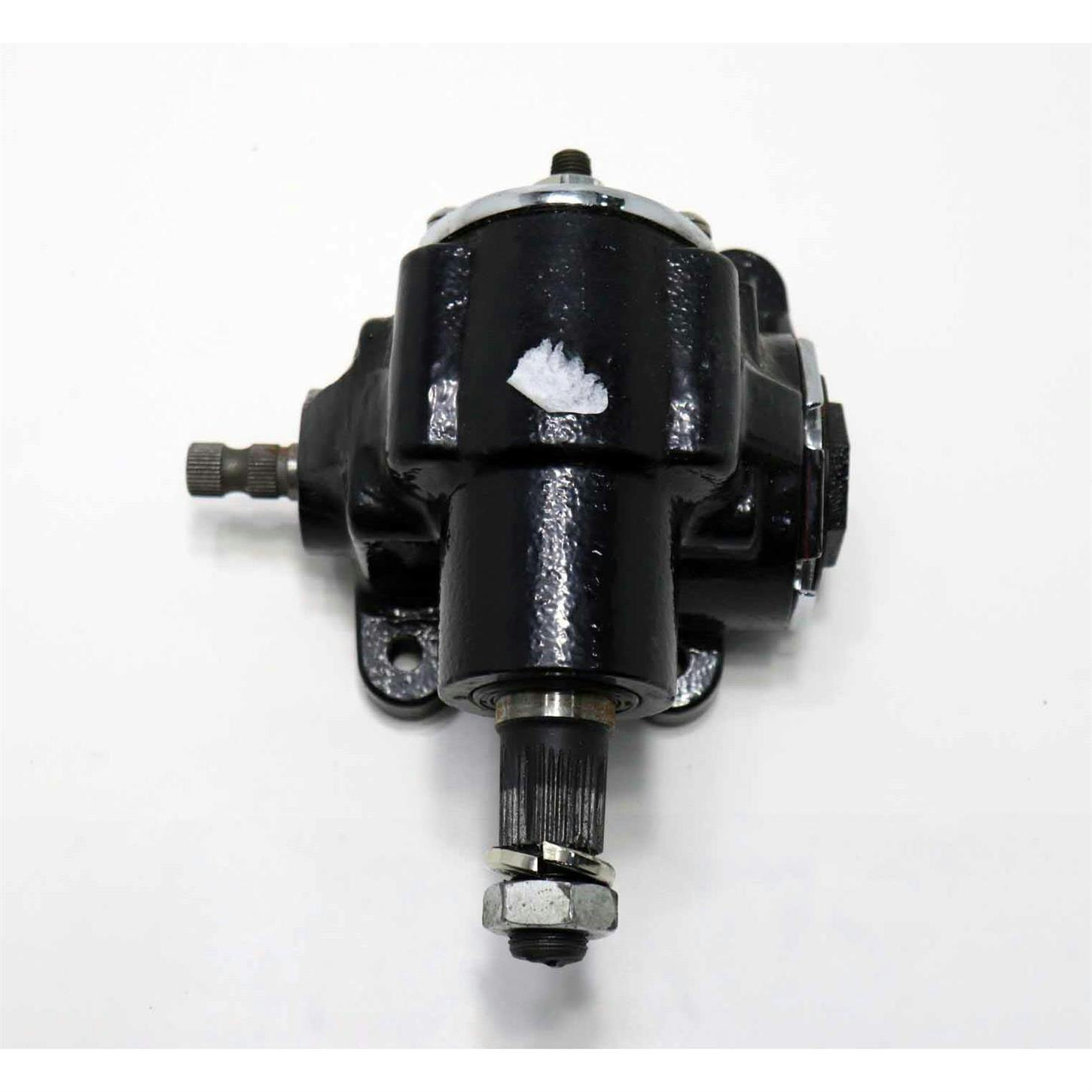

Speedway Vega Cross Steering Gear Box

This is garage sale priced because it was installed and will need to be adjusted.

No Warranty, No Returns on Garage Sale Items



The Vega Manual Steering Box is the foundation of a cross steering system, which is the most popular steering system for modern Hot Rods. These boxes are compact, durable and are getting more scarce every day.

This unit bolts up to all normal Vega-type brackets and accepts Vega-spline u-joints, pitman arms and accessories. Durable cast iron and machined steel construction will give years of high-mileage service.

• New castings and components
• Faithful reproduction of size, shape and mounting hole locations
• No core charge



Cross Steering Guide (GIF)

1. Must use pitman arm #702-2924 or #702-2925.
2. Recommended for vehicles under 2800 lbs.
3. The Vega box is the best choice for Model T - 1934 Ford chassis. 1935-48 chassis can use this Vega box or, if you need power steering, use Saginaw box 910-32500.

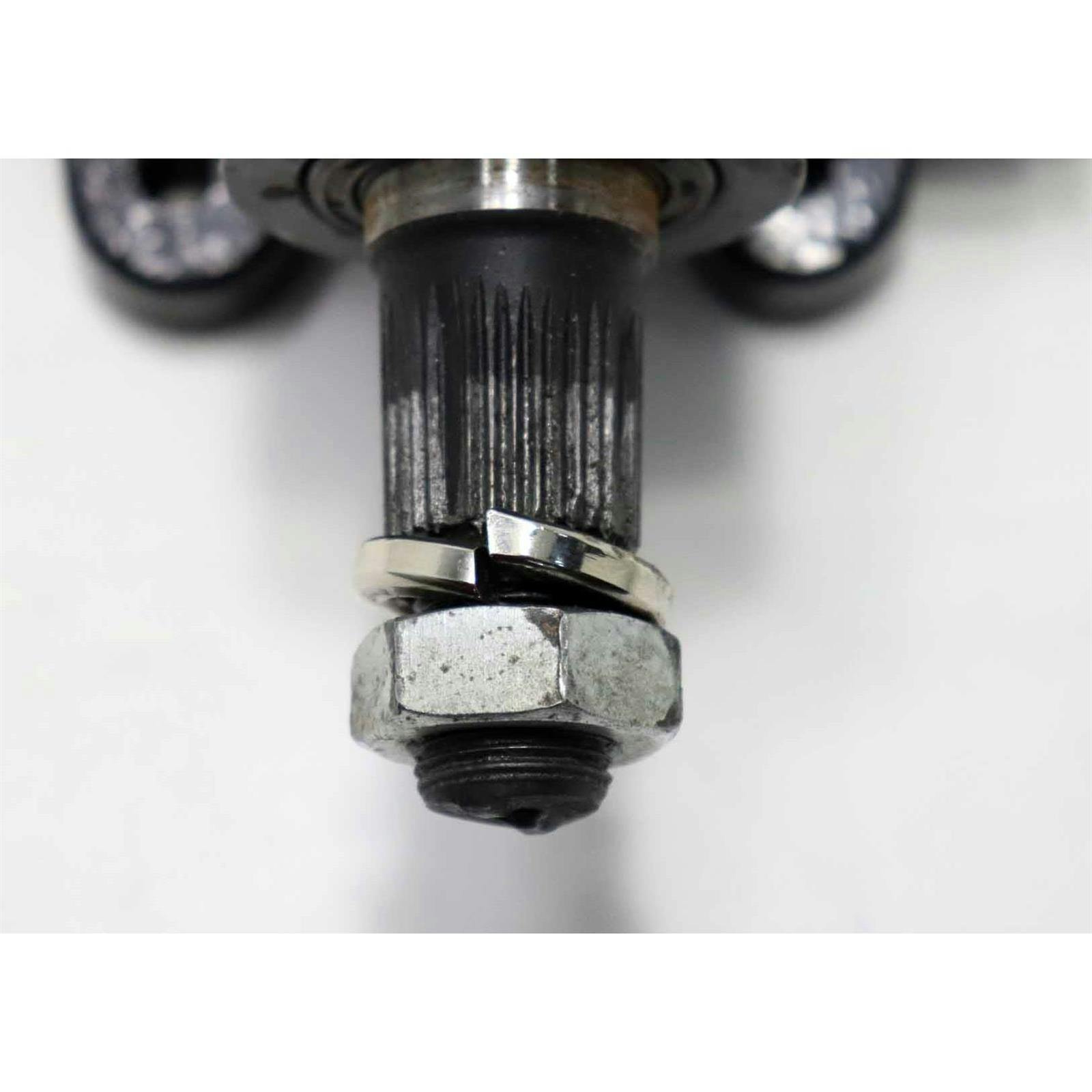

• Output Shaft (for Pitman arm):
  • Splined area tapers from .997" to .934"
• Input Shaft 5/8"-36 spline
• Centerline through the output shaft to the front of the box is about 3"
• Overall length of the box not including the input shaft is 5-3/4"
• Input shaft extend rearward 1-3/16"
• From adjust screw to end of output shaft is 8"
• From outside of box to area on mounting surface is 4-1/2"
• Box has a swell in the casting that extends past the mounting legs an additional 1/4"
• Mounting pattern is 2-3/4" and 4-3/8" center to center of the three mounting holes
