#910454
Street Rod Heater, 12 Volt 20,000 BTU, Universal for Hot Rods
- This universal street rod heater gives you the option of heat in your custom ride
- The compact size of 9.5" x 6.5" x 4.5" makes this easy to locate under your dash
- Features a 2 speed 12 volt fan making this perfect for use in almost any water cooled automobile
$226.99
each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 9.50" Overall Width, 6.5" Overall Height
- This universal street rod heater gives you the option of heat in your custom ride
- The compact size of 9.5" x 6.5" x 4.5" makes this easy to locate under your dash
- Features a 2 speed 12 volt fan making this perfect for use in almost any water cooled automobile
- 20,000 BTU rated output is sure to warm you up on those cold mornings during a hot rod run
- The adjustable louver allows you to direct the hot air flow as needed
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 910454 Details
Speedway Motors 910454 Details

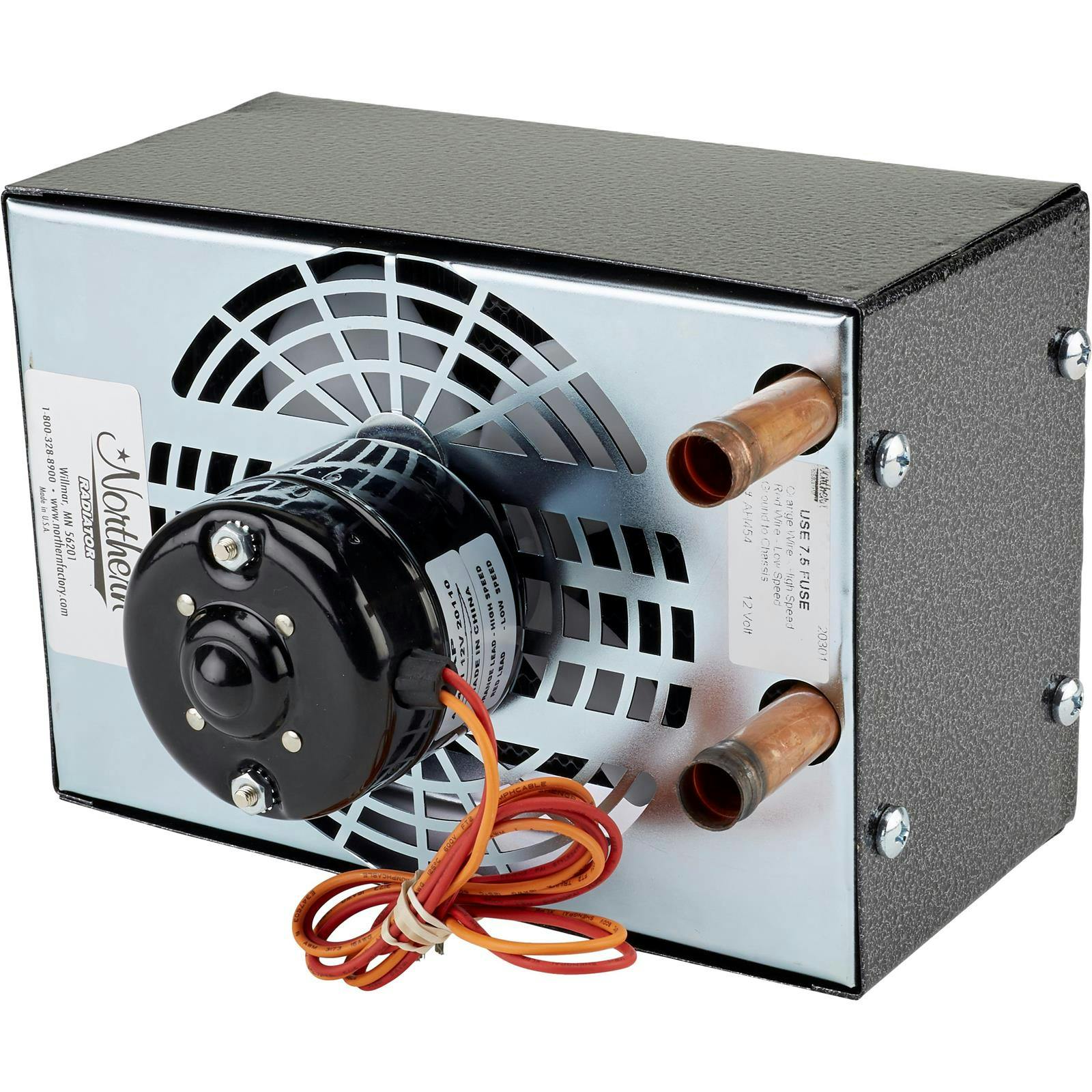

These all new universal street rod heaters give you the option of heat in your custom ride with the ease of installation. They feature a compact size, two-speed fan, and rear fan guard.
- 9-1/2" x 6-1/2" x 4-1/2" box dimensions
- 8” deep overall (from front of chrome grille to back of motor)
- 4-1/2” box depth (not including front grille or motor)
- Front grille protrudes 1/2” forward from face of box
- Motor protrudes 3” rearward from back of box
- Adjustable louver to direct heat flow
- 12V 20,000 BTU heater

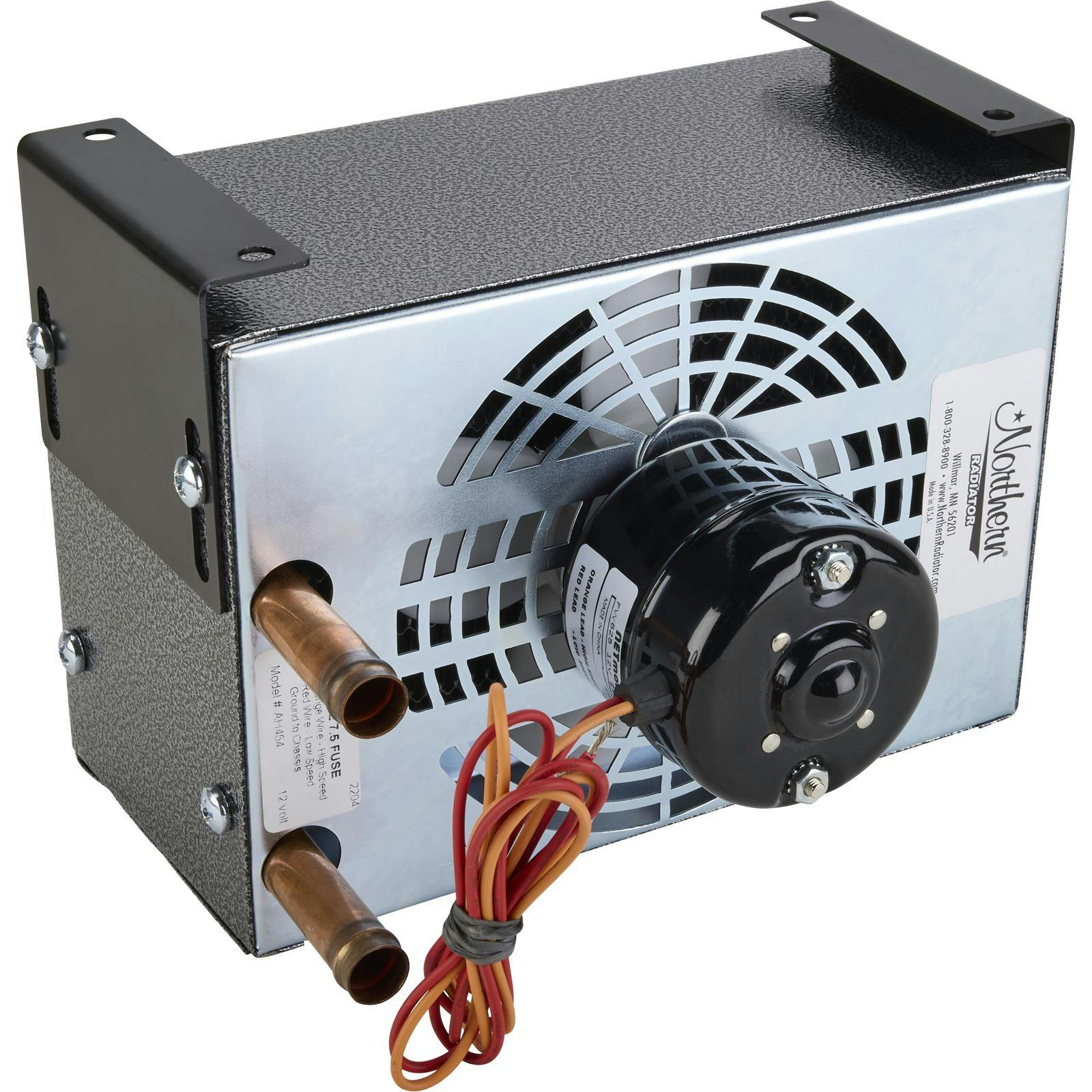

- Has rear exit hose connections for convenient mounting
- 5/8" male connections for use with 5/8" ID heater hose
- 2-Speed fan (red wire high speed - orange wire low speed)
Charts
Guides & Documents
Speedway Motors 910454 Specifications
Speedway Motors 910454 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 910454 |
| Brand | Speedway Motors |
| GENERAL | |
| Overall Width | 9.50" |
| Overall Height | 6.5" |
| Depth | 8" |
| Voltage | 12 volts |
| Sold in Quantity | Each |
| Notes | C-C Outlets tubes: 3 inches |
Ratings & Reviews
4.7
41 Reviews
Customers praise this heater for its excellent heat output, compact size, and good value for money. It's described as being easy to install and efficient, with many customers expressing they would buy it again. Despite the need for some fabrication work, such as filing the switch to fit bracket and possibility of needing to create mounting brackets, the overall consensus is that it is a high-quality, practical product. The unit's performance in cold climates is particularly highly rated, with positive feedback about its ability to quickly heat vehicle interiors ranging from cars to tractors, even in extremely cold weather.
Ratings & Reviews
4.7
41 Reviews
Customers praise this heater for its excellent heat output, compact size, and good value for money. It's described as being easy to install and efficient, with many customers expressing they would buy it again. Despite the need for some fabrication work, such as filing the switch to fit bracket and possibility of needing to create mounting brackets, the overall consensus is that it is a high-quality, practical product. The unit's performance in cold climates is particularly highly rated, with positive feedback about its ability to quickly heat vehicle interiors ranging from cars to tractors, even in extremely cold weather.
4.7
41 reviews
5
31
4
8
3
2
2
0
1
0
Most Liked Positive Review
5.0
Just the right size.
I drive my 1932 ford pickup year round. The winters in Denver aren't to bad the roads stay clear most of the time but it is COLD. I had a little motor aid heater just didn't cut it. I installed this unit this week and what a difference. On low speed heats the cab fast and really a good amount of warm air. On high makes way more heat than I expected. Easy to install was a plus under a tight dash. So glad to see this in your catalog. Michael L.
Most Liked Negative Review
3.0
decent heater, needs some redesign
I purchased (3) three of these heaters to install in street rods. The rocker switch would not install in plastic housing, too wide by about 1/32 inch. The mounting brackets were approximately 1/2 inch short to accommodate flush mounting because the fan motor protruded past the brackets. Fan motors fairly noisy, especially on high speed. On the positive side, small, compact, and attractive, but, with the sharp corners on the sheet metal housing.
Filter by Ratings
I would not buy it again
3.0
9 months ago
Sir
Meriden CT
Verified
Heater for a 1958 GMC. It's sturdy and works fine. But the fan on high is way too loud and the wiring diagram is wrong and the supplied hi-lo switch can't be mounted unless you have a drill that cuts rectangles. For 2 bills I expected better.
Would Not Recommend
THE SERVICE WAS GREAT. PLEASANT PHONE EXPERIENCE IN ORDERI
4.0
a year ago
PAPA
PERKINSVILLE, VT
Verified
ONLY THINGS WERE: HAD TO MAKE A MOUNTING PLATE BECAUSE THE MOTOR PROTRUDED OUT FURTHER THAN THE MOUNTING LEGS. THE SWITCH DIDN'T FIT THE MOUNTING PLATE SO I USED MY OWN SWITCH. ALL WORKS GREAT . NICE TO HAVE HEAT!!
Would Recommend
I WOULD BUY THIS AGAIN FOR SURE
5.0
3 years ago
PHIL
MAINE
Verified
GREAT HEATER, EASY HOOK UP
heater assembly
5.0
4 years ago
JC
Cheyenne Wy
Verified
Installed in a 1951 Ford F1. Mounts effortlessy. Works perfectly
Would Recommend
Good, but be prepared for possible fabrication work
4.0
4 years ago
Ken
Michigan
Fits well in my '31 Ford roadster. My issue is that the brackets are too short to mount the heater to the firewall without substantial spacers, or cutting a hole in the firewall for the blower motor. My mounting required fabbing brackets. Not a major issue, but it would have been better to have this thought through at the manufacturer's end. Also, depending on how you set up your brackets, you may end up pinching the hose grommets. Finally, requiring the hose connections to be made inside the vehicle seems like a leak looking to happen inside the car.
Would Recommend
