#91628903

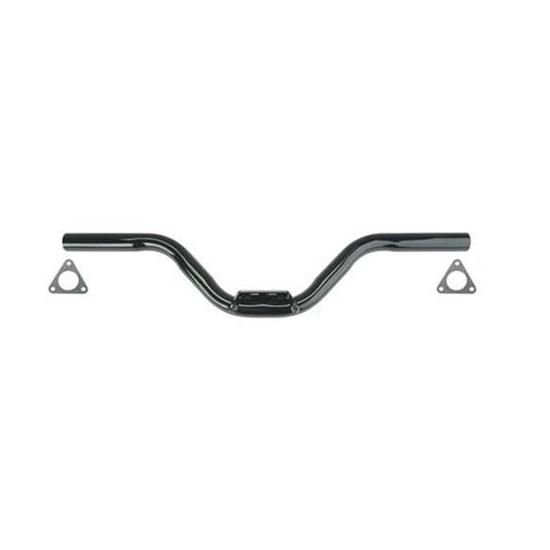

Universal Tubular Transmission Crossmember Kit, 2" Drop Mount
- Heavy duty 1 3/4" OD steel tubing with .109" wall thickness provides a stable foundation to mount your transmission
- Fits most GM, Ford, and Mopar manual or automatic transmissions
- Crossmember must be welded directly into frame or weld on the supplied 3-hole mounting flanges for a bolt-in application
$77.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 1.55" Tube I.D., 1.75" Tube O.D., Steel
- Heavy duty 1 3/4" OD steel tubing with .109" wall thickness provides a stable foundation to mount your transmission
- Fits most GM, Ford, and Mopar manual or automatic transmissions
- Crossmember must be welded directly into frame or weld on the supplied 3-hole mounting flanges for a bolt-in application
- Fits frames up to 38" wide making this crossmember versatile for a variety of applications
- The 2" drop is measured from the top of crossmember tube to top of mounting plate
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91628903 Details
Speedway Motors 91628903 Details
Universal rear transmission mounts and heavy duty tube crossmember. Fit most GM, Ford, and Mopar manual and auto transmissions. Raw steel finish. Crossmember must be welded directly into frame or to 3 hole mounting flanges for bolt-in application. Fits frames up to 38" wide.
Note: May require re-drilling of the mount holes when used with Ford C4/C6 trans cushion 910-18017.
Specs
- Fits frames up to 38" wide
- 9-3/4" from the ends to where the form starts
- Both ends, at center flat mount plate, forms go past this flat point at 6-1/4"
- The form starts at 5-3/4" but is below the flat surface of the mount
Speedway Motors 91628903 Specifications
Speedway Motors 91628903 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91628903 |
| Brand | Speedway Motors |
| Overall Length | 38.25" |
| Drop | 2" |
| Material Type | Steel |
| Finish | Natural |
| GENERAL | |
| Tube I.D. | 1.55" |
| Tube O.D. | 1.75" |
| Sold in Quantity | Each |
| Notes | The 2 inch drop is measured from the top of crossmember tube to top of mounting plate. |
Ratings & Reviews
4.9
58 Reviews
Customers appreciate the product's robust build, versatility, and practicality in different project applications. With minimal modifications, it fit a variety of vehicles, from vintage trucks to street rods. The crossmember's ease of use, adaptability, and high-quality fabrication were consistently highlighted. Most patrons commended its ready-to-fit state, which eliminated complex fabrication tasks, saving them time. Moreover, the crossmember was seen as a cost-effective solution for transmission mounting. Concerning quality, they attested that the product was sturdy, well-made, and efficiently served its intended purpose. A few pointed out the high gloss finish for added aesthetic appeal. Despite occasional feedback about the need for minor cuts or adjustments, the general sentiment remains positive, with high repurchase intent and a willingness to recommend the product to others.
Ratings & Reviews
4.9
58 Reviews
Customers appreciate the product's robust build, versatility, and practicality in different project applications. With minimal modifications, it fit a variety of vehicles, from vintage trucks to street rods. The crossmember's ease of use, adaptability, and high-quality fabrication were consistently highlighted. Most patrons commended its ready-to-fit state, which eliminated complex fabrication tasks, saving them time. Moreover, the crossmember was seen as a cost-effective solution for transmission mounting. Concerning quality, they attested that the product was sturdy, well-made, and efficiently served its intended purpose. A few pointed out the high gloss finish for added aesthetic appeal. Despite occasional feedback about the need for minor cuts or adjustments, the general sentiment remains positive, with high repurchase intent and a willingness to recommend the product to others.
4.9
58 reviews
5
53
4
5
3
0
2
0
1
0
Filter by Ratings
I would buy again
5.0
11 months ago
Dan
Valencia Pa
Verified
I have used these crossmembers many times. Looks good and saves time fabricating
Would Recommend
Perfect as described
5.0
2 years ago
Chris in Fontana CA
Fontana California
Verified
Easy to weld and very good quality
Would Recommend
Would buy this again
5.0
2 years ago
Bad Bob
Easley SC
Verified
Worked great for my application
Would Recommend
Nice product
5.0
2 years ago
Jake
Lincoln, NE
Verified
Worked great, well made, I welded it in and then went a different route and ended up cutting it out! Bought a different drop and welding that one in now. Good product though.
Would Recommend
Recommend this, great crossmember
5.0
2 years ago
C-10
South Carolina
Verified
Have no complaints at all, worked perfect.
Would Recommend
Great product
5.0
2 years ago
Brighton
Columbia mo
Verified
Shipping was fast, cut the transmission mount down to size and looks great. Exactly what I was looking for
Would Recommend
well worth it
5.0
3 years ago
mehollander
Van Dyne Wi.
Verified
worked great for my project, couldn't of asked for any better. cut to fit welded up drilled and tapped some holes, fits great and looks great
Would Recommend
Worked great
4.0
3 years ago
Copperhead
Rogers, AR
Verified
Worked great to make a mount for a 4l80. My only complaint is that it only comes with two flanges for mounting. I had to make a second set as they weren't available separately.
Would Recommend
I would buy it again
4.0
3 years ago
rob
Springfield ohio
Verified
fit just right
Would Recommend
Nice part for the price
5.0
3 years ago
Dan
Silverlake, WA
Verified
For the price they want for it I can't make one.
Would Recommend
Showing 10 of 58 reviews
Questions & Answers
9 Questions • 12 Answers
Questions & Answers
9 Questions • 12 Answers
What is the load capacity (in lbs) for the universal cross member? I am considering it for my Early Bronco and it would be supporting a ZF 5-speed trans and NP205 transfer case (both are heavy). Thanks!
by Jimbo
• 8 years ago
1 answer
View Answer
Will this work with a 4l80e? If so what cushion should I get? Do you guys sell a 4l80e cushion for this?
by Joe
• 9 years ago
1 answer
View Answer
what is the narrowest that this can be cut and still well on the flanges?
by chris
• 9 years ago
2 answers
View Answers
What is the length, width and thickness of the rectangular mounting pad? What is the location and hole size(slot?)of the holes in this pad? What is the hole size in the triangular mounting pad? Thanks!
by Nova Nut
• 10 years ago
1 answer
View Answer
What transmission mount is needed to bolt this crossmember to a Chrysler 727 or 904 auto.?
by tim
• 10 years ago
1 answer
View Answer
what are the measurements for the mounting flanges? Measurements for bolt hole centers on the flanges?
by DanP
• 12 years ago
1 answer
View Answer
What is O.D. of the tube?
by Rogerabbit
• 12 years ago
1 answer
View Answer
is it DOM or hrew? what thickness is the tube?
by tj06
• 13 years ago
1 answer
View Answer
is the transmission mount welded to the tube or is it able to be adjusted for different angle?
by gto
• 15 years ago
3 answers
View Answers
9 of 9 questions shown
