Speedway Strut Type Upper Control Arm, Aluminum Cross Shaft, 8-1/4 In

1 Question

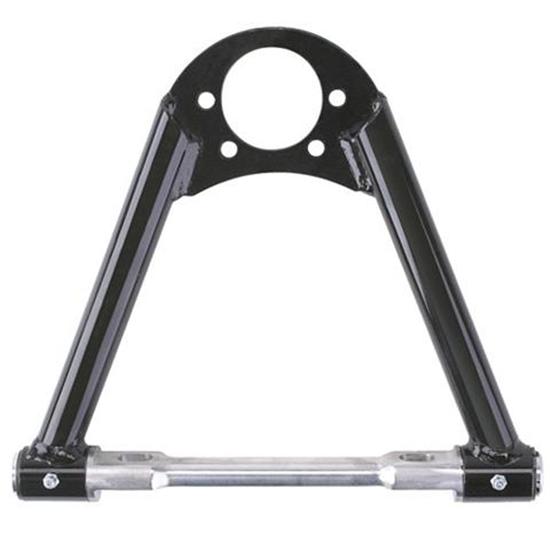

Strut style tubular steel upper control arms feature an aluminum cross shaft
Accept Moog K6024 or K6136 style bolt-in ball joints
Cross shaft bolt holes are on a 6" center

$43.99

In Stock

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Upper Position, Tubular Control Arm Style, Painted

Strut style tubular steel upper control arms feature an aluminum cross shaft
Accept Moog K6024 or K6136 style bolt-in ball joints
Cross shaft bolt holes are on a 6" center
Length is measured from cross shaft centerline to ball joint center

See more details

Key Specs

MFG. Part #	91720004
Brand	Speedway Motors
Position	Upper
Control Arm Style	Tubular

See more specs

Need To Know

Free Shipping on Orders Over $149

Need help?

Quick and Easy Returns

Speedway Motors 91720004 Details

These strut style tubular steel upper control arms feature an aluminum cross shaft. They accept Moog K6024 or K6136 style bolt-in ball joints. Cross shaft bolt holes are on a 6" center. Length is measured from cross shaft centerline to ball joint center.

CA Prop 65

Speedway Motors 91720004 Specifications

KEY SPECS
MFG. Part #	91720004
Brand	Speedway Motors
Position	Upper
Control Arm Style	Tubular

GENERAL
Speedway Motors Catalog Part #	917-20004
Mount Center to Ball Joint Center	8.25"
Mounting Bolt Center to Center	6.00"
Cross Pin Material	Aluminum
Bushing Material	Steel
Ball Joint Type	Bolt-in
Tube O.D.	1.00"
Shaft Diameter	1.00"
Finish	Painted
Notes	Accept Moog K6024 or K6136 style bolt-in ball joints. Mounting plate thickness is .20"
Sold in Quantity	Each
