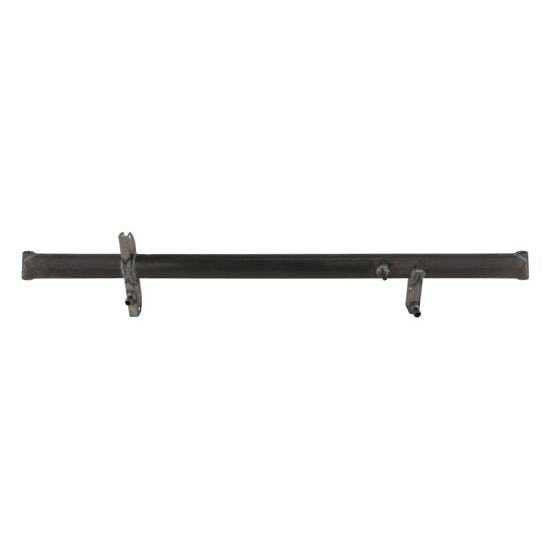

Speedway Sprint Car Front Axle, 2-1/2 Inch

Ask a Question

Replaces Maxim, J&J, Eagle, and other chassis
2.5" tube O.D.
2 widths to choose from

Width:

Select a width

$197.99

In Stock

$203.00

Save $5.01

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Sprint Car, Solid Tube Straight Axle Style, Natural

Replaces Maxim, J&J, Eagle, and other chassis
2.5" tube O.D.
2 widths to choose from
Available only in plain steel finish
0.100" material thickness

See more details

Key Specs

MFG. Part #	Select Width
Brand	Speedway Motors
Straight Axle Style	Solid Tube
Finish	Natural

See more specs

Need To Know

This Product Will Ship Free

Need help?

Quick and Easy Returns

Details

We offer you the choice of these 4130 chromoly Sprint axles which are replacements for Maxim, J&J, Eagle, and many other chassis. These axles are no longer chrome or nickel plated, available in a plain steel finish. Speedway axles are all reamed for correct kingpin fit.

The 2-1/2" x .095 wall axle is available on 49" with 1/2" offset, 50" with 1-1/2" offset, or 52" with 3-1/2" offset. It has 8° kingpin inclination on the left and 12° inclination on the right.

Charts

Front Axle Geometry (JPG)

Squaring the Front Axle (JPG)

Guides & Documents

Straight Axles Guide/Document (916355)

CA Prop 65

Specifications

KEY SPECS
MFG. Part #	Select Width to see
Brand	Speedway Motors
Straight Axle Style	Solid Tube
Finish	Natural

GENERAL
King Pin Centers	Select Width to see
Tube O.D.	2.5"
Material Type	Steel
Material Thickness	0.100"
King Pin Inclination	8 Degree / 12 Degree
Offset	Select Width to see
Sold in Quantity	Each
Notes	Has 8 deg. kingpin inclination on the left and 12 deg. inclination on the right.
