Speedway Motors Serpentine Front Drive Kit, LS Engine
LM4 Chevy LS V8, LM7 Chevy LS V8, LS1 Chevy LS V8, LS2 Chevy LS V8, LS3 Chevy LS V8

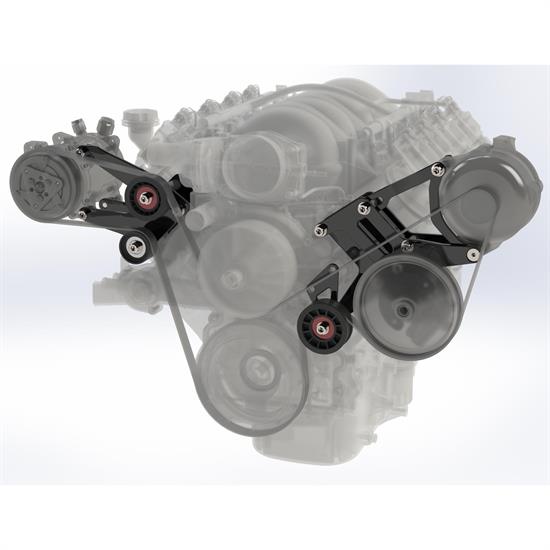

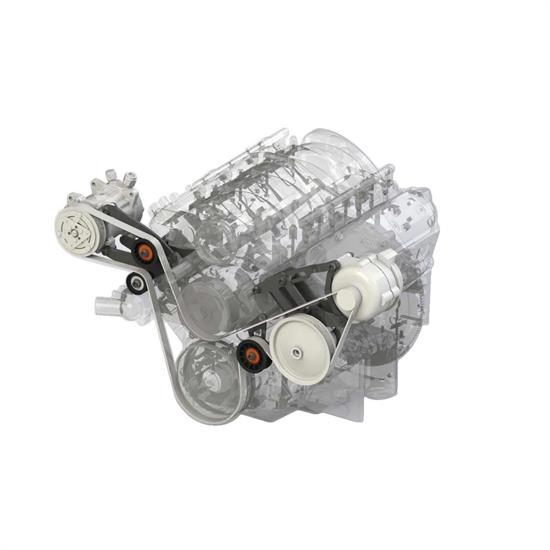

Speedway Motors introduces brackets for a serpentine system for LS engines. This kit includes a alternator, power steering pump, and air conditioning brackets that solve the issues with putting a LS into an older vehicle because of the frames with large crossmembers and steering boxes. These brackets relocate the accessories to a higher, outside position on the engine but well below the hood line of most vehicles. This combination alternator/power steering pump bracket kit is designed to use alternators from 1998-02 Camaro/Firebird, 2000-15 GM truck, Cadillac CTS-V LS6/LS2, and 2010-15 Camaro. Accepts power steering pumps from 1998-02 Camaro/Firebird (GM 26086074) and pulley (GM 12559885). It works with LS1/LS2/LS6 wide pulley water pump (GM 19256263), LS2 water pump (GM 89018052) or truck water pump (GM 19207665). Brackets come completely assembled with all stainless steel bolts and washers, illustrated instruction sheet, and belt size recommendations.
This A/C compressor bracket kit is designed to mount aftermarket Sanden SD-508 compressors onto Gen III/IV GM LS engines (non-supercharged). It works with LS1/LS2/LS6 wide pulley water pump (GM 19256263) and GM truck water pump (GM 19207665). Brackets come completely assembled with all stainless steel bolts and washers, illustrated instruction sheet, and belt size recommendations.
- Bracket fits both Gen III/IV LS series cylinder heads
- Repositions A/C compressor away from frame rail
- Utilizes commonly available and affordable Sanden 508 compressors
- Brackets come completely assembled with stainless hardware
- Utilizes commonly available and affordable GM alternators
- Available spacer kits (sold separately) allow easy fitment to F-Body LS1, GTO, Gen 5 Camaro, or GM truck drive depth/offset
- Choose between black powdercoated, chrome or raw steel finish
An additional spacer kit may be required to work with certain accessory combinations (depending on what vehicle your engine came from). If using accessories from a Corvette (non-supercharged), CTS-V LS6/LS2, or Pontiac G8, no additional spacers are necessary. If using accessories from a Camaro/Firebird LS1 or Pontiac GTO, you'll need additional spacer kit 91668043. If using accessories from a 2010-15 Camaro (non-supercharged) or GM truck, you'll need additional spacer kit 91668044.
91668042 Instructions (PDF)
91668041 Instructions (PDF)
What's In The Kit
