Speedway Motors Deluxe Claimer SBC Engine Rebuild Kit

#91602068

Speedway Motors Deluxe Claimer SBC Engine Rebuild Kit

1 Review

6 Questions

This engine rebuild kit is specially designed for the SBC engine
Kits include components from top brands you trust like Cloyes, Clevite, Fel-Pro, Isky, Keith Black, and of course, Speedway Motors
The solid flat tappet camshaft has a 2750-6500 RPM range

Out of Stock

This item is currently not available

Shop all Speedway Motors Claimer Engine Rebuild Kits

Product Summary

350

This engine rebuild kit is specially designed for the SBC engine
Kits include components from top brands you trust like Cloyes, Clevite, Fel-Pro, Isky, Keith Black, and of course, Speedway Motors
The solid flat tappet camshaft has a 2750-6500 RPM range
Timing chain will fit the 1955-84 small block Chevy
Cam bearing contact patterns provide increased oiling to rod bearings

See more details

Need To Know

Need help?

855.313.9176

View the Help Center

Ineligible for Return

Contains items that cannot be returned

Installation Details

Engine Rebuild Kits Installation Instructions (91602068)

Installation Tips

SBC Solid Mechanical Lifters

Any time you put in a new cam, you must use new lifters!

Mechanical lifters feature precision ground bodies for long life and durability. For engines that require top end oiling through the lifter.

Our lifters feature precise oil metering to ensure proper lubrication of the rocker arms and related components, while eliminating excess oil to the rest of the valve train. All 1955-86 Chevy V8. Set of 16.

Cloyes Gear SBC Timing Chain

These heavy duty double-roller timing chain sets for S/B Chevy V8s feature .200" diameter rollers, cast iron cam sprockets and high-quality, heat-treated steel crank sprockets with triple keyways.

V8 1955-84 small block Chevy
90° V6 1978-89
.200"diameter rollers

Clevite P-Series SBC Cam Bearings

Not to be confused with standard "passenger" car bearings, Clevites P-Series is their oldest line of premium high performance bearings.

Use P-Series rod bearings where extremely high RPM's cause severe rod bore close-in.
Use P-Series main bearings where higher eccentricity is desired to narrow bearing contact patterns and to provide increased oiling to rod bearings.
Standard Size

SBC High-Volume Oil Pump

Thse high-volume oil pumps move 25% more volume than stock volume oil pumps. Pumps are preset to 55-65 psi. Fits Small Block Chevy.

25% more volume than stock
5/8" pickup
Standard Pressure
.625" inlet size

Fel-Pro SBC 350 Overhaul Gasket Set

The Fel Pro Overhaul Gasket Set includes the composite head gasket, valve cover, water pump, intake, front seal and cover gasket, oil pan and rear main seal.

For 1967-1985 Chevy 350 Engines
Set contains oil pan gaskets for drivers side dipstick only.

SBC Steel Freeze Plug Set

Complete freeze plug kits available in steel for 283-350 small block Chevy V8.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Details

Make your claimer Small Block Chevy engine new again with these rebuild kits from Speedway Motors. These engine overhaul kits include components from top brands you trust like Cloyes, Clevite, Fel-Pro, Isky, Keith Black, and of course, Speedway Motors.

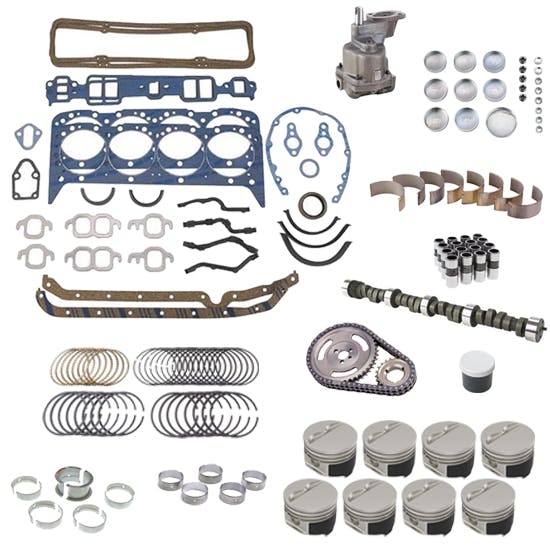

Kit Includes:

(1) SBC Solid Lifter Tight Lash Camshaft
(1) SBC Solid Mechanical Lifter Set
(1) Cloyes Gear C3023X SBC Double Roller Timing Chain Kit
(1) Clevite SH290S P-Series SBC Cam Bearing Set
(1) SBC High-Volume Oil Pump
(1) Fel-Pro KS2600 SBC Overhaul Gasket Set
(1) SBC Steel Freeze Plug Set
(1) Isky RL-48 Camshaft Rev Lube, 4 oz.
(1) Keith Black KB 9902HC Claimer SBC Piston Set
(1) Style A Moly SBC Piston Ring Set
(1) Clevite SBC P-Series Large Journal Rod Bearing Set
(1) Clevite SBC P-Series Main Bearing Set

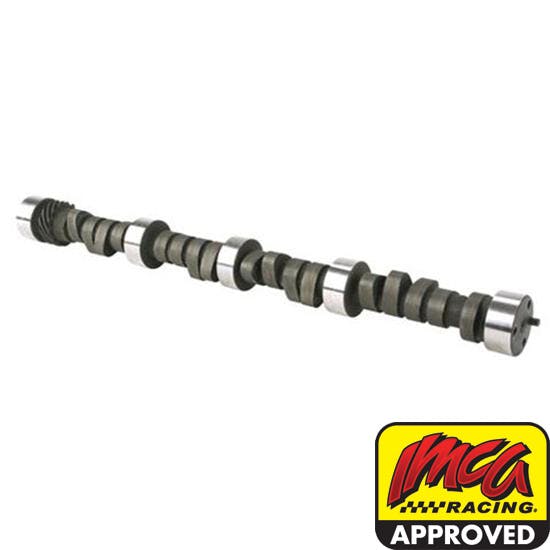

SBC Camshaft

Speedway Tight Lash cams produce a broad range of power due to the short amount of cam degrees it takes to go from .020" lift to .050" cam lift. This is known as major intensity. The shorter the span the more torque the lobe will produce, and for the lobe to run excellent up at higher RPM, it must have an excellent area under the curve. You can tell these do because of the very high duration at .200" cam lift.

355-377 ci, high torque 1/4-3/8 mile oval power.

Solid Flat Tappet
2750-6500 RPM Range
282 Intake Duration
301 Exhaust Duration
106° Lobe Separation
Intake Duration @ .050" Lift - 245
Exhaust Duration @ .050" Lift - 251
IMCA Racing Approved

Application

Suggested / Related Items For Consideration:

577-S1035 – Rod Bolts
577-810107 – Valve Springs
915-39741 – Retainers
915-34 – Push Rods
910-14140-1 – Intake Valve
910-14145-1 – Exhaust Valve
917-15120 – Claimer Oil Pan
910-17401 – Timing Cover
910-15358 – Harmonic Balancer

Charts

Cam Card - 91515001 (PDF)

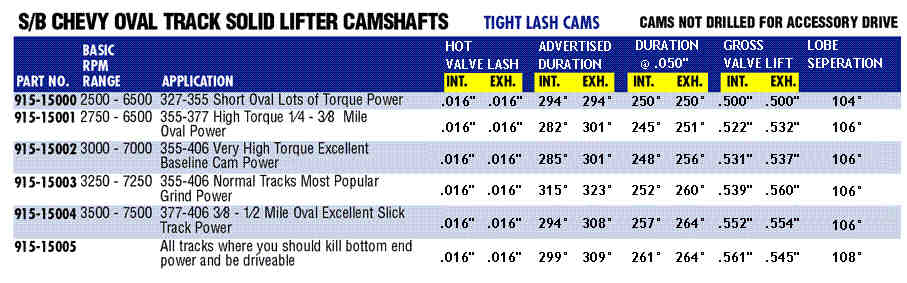

Cam Application Chart (GIF)

915-15001 Instructions (PDF)

P-Series Features (JPG)

Guides & Documents

Engine Rebuild Kits Installation Instructions (91602068)

Engine Rebuild Kits Technical Information (91602068)
