Speedway Motors Battery Cable Installation Kit, Ends/Switch
Universal Fit
Important Messages:
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Build Your Kit
You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.Details
Info
Custom create your own battery cables with this installation kit from Speedway Motors. Kits feature cables, terminals, clamps, and battery kill switch to complete your charging system wiring.

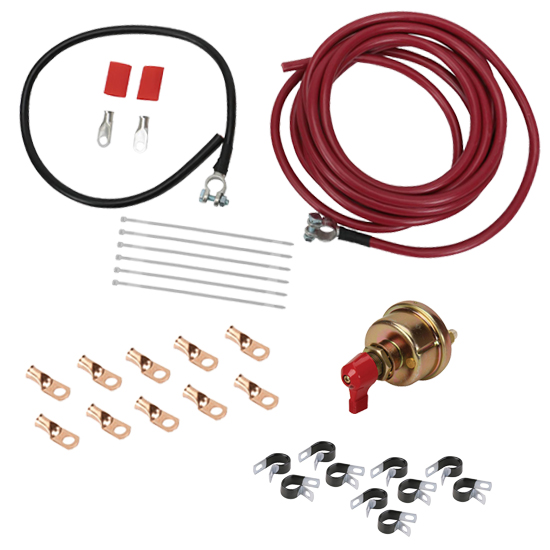

Kit Includes:
- (1) 2-Gauge Battery Cable Kit, 18 ft.
- (1) Bag of 10 Battery Cable Ends - 2 GA, 3/8" Hole
- (1)Â 2-Post Battery Disconnect Switch
- (1) Insulated Cable Mount Clamps, 1/2"
2-Gauge Battery Cable Kit, 18 ft
Two-gauge standard copper battery wire with ends. This kit is intended for use with top-post batteries. It contains a 2 ft. long negative battery cable with terminals on both ends. The 18 ft. positive cable has a terminal (post clamp) at the 'battery' end, and a terminal to crimp on the other end.
Includes 2' long black negative cable, crimp end terminal, 6 E-Z ties, and 4 short pieces of shrink sleeve.
Two-Post Battery Disconnect Isolation Kill Switch
Remote battery disconnect switch for safety and theft protection. A battery kill switch is required for use with alternators by the NHRA. Battery shut off switch can be remote mounted or where specified for saftey and convenience.
- 180 amp continuous, 1000 amp instantaneous
- Die cast lever
- Fits panel through 3/16" thick
- Two 3/8" copper terminal studs
910-64500 Instructions (PDF)
Copper Battery Cable Ends - 2 Gauge, 3/8" Hole
Tubular copper battery cable ends with ring-style lugs.
- .09" material thickness
- .40" hole diameter
- Copper material type
- Accepts 2 GA wire
- 10 terminals per bag
Insulated Line/Tubing Mount Clamps, 1/2"
You will need these rubber coated fuel line tube clamps and brake line clamps to finish your plumbing job. These tube clamps are made from zinc plated steel, are easy to work with, durable, and corrosion resistant.Â
10 clamps per package.
What's In The Kit
-
Speedway 2-Gauge Battery Relocation Cable Kit, Copper, 18 Ft. LengthPart # 91064505Qty x 1
-
Copper Battery Cable Ends, 2 Gauge, 3/8 Inch HolePart # 91022388Qty x 1
-
Speedway Two-Post Battery Disconnect Isolation Kill SwitchPart # 91064500Qty x 1
-
Speedway Insulated Fuel Line Tubing Mount Clamps, 1/2 Inch, Bag of 10Part # 91031312-1/2Qty x 1
