Product Summary

.75" Shaft Diameter, .75" Spline OD, 2:1 Ratio

    Comes as a Kit

    Key Specs

    MFG. Part #91673130
    BrandSpeedway Motors

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Speedway Motors 91673130 Details

    Our affordable Speedway steering system come with everything you'll need for your IMCA racer. This kit includes everything to build a steering column for your race car.

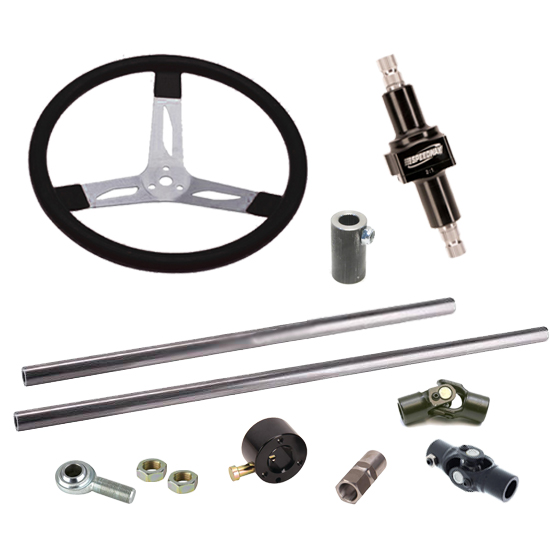

    Kit includes:

    • (1) 3/4" x .120 Steering Shaft, 48" long
    • (1) 3/4" x .120 Steering Shaft, 36" long
    • (1) 3/4"-30 Weld-on U-Joint
    • (1) 3/4"-36 Weld-on U-Joint
    • (1) 3/4"-36 Steering Coupler
    • (1) 3/4" RH Steering Shaft Heim
    • (2) 3/4" RH Jam Nuts
    • (1) Small 2:1 Steering Quickner
    • (1) Alum 15" Black Dished Steering Wheel
    • (1) 3/4" Hex Q/R Assembly
      • (your choice color: Black, Blue, Red, Purple, Polished)

    Steering wheel is only available in black. Includes one 48" and one 36" long steering shafts.

    3/4" x .120 Steering Shaft

    Speedways steering shaft is made for cut-to-fit applications and universal builds.

    •  3/4" DOM
    • .120" wall hollow round steering shaft
    • Available in 24", 36", 48", 60" and 72" length
    • Steel Steering shaft, perfect for building your own racing steering columns, steering linkages, etc.

    Steering U-Joint, 3/4-36 Spline to 3/4 In Weld-On

    • Forged steel
    • 3/4" 36-spline to 3/4" round weld-on
    • The overall length of this steering universal joint is 3-3/4".

    Steering Coupler, 3/4"-36 to 3/4" Round, Non-Flex

    These steel couplers are splined on one end and has a 3/4" round hole on the other

    • 3/4"-36 to 3/4" round
    • Steel
    • Black oxide coating
    • Commonly used on GM Manual and Mustang II Power rack
    • 2" L x 1.060" OD

    U-Joint 3/4 - 30 Spline to 3/4 Round

    Dont jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. These steering universal joints have a 3/4" round weld-on end.

    • Full compliment bearings
    • Forged Vanadium steel yokes and u-joint
    • Highest quality for racing or street
    • Features needle bearing u-joints
    • 3/4"-30 Spline

    Steel Heim Joint Rod Ends for Steering Shaft, 3/4-16

    Support your custom steering shaft with the perfect heim joint - designed specifically for hot rod steering shafts!

    • Perfect for custom suspension components and steering shaft mounting
    • Heavy-duty 3/4" right-hand heim to support steering shaft
    • Clearance for 3/4" steering shafts
    • Jam nut sold separately

    Hex Steering Wheel Quick-Release Assembly, 3/4 Inch

    These quick release hubs come with a one-piece hex steel sleeve that must be welded to your steering column. Features a spring-loaded push button release. Bolt holes for mounting steering wheel are 1/4"-20 thread.

    • Billet aluminum hub with one-piece steel sleeve
    • Anodized finish
    • No pins just push button

    Thin Steel Jam Nuts, 3/4-16 RH

    • Plain steel fine thread jam nut
    • Special half thickness nuts for securing steering heims to a panel or flange

    Small Body 2:1 Steering Quickner, Black, 3/4 Inch 36 Spline

    This small body steering quickener weighs less than 1.8 lbs. and takes up a lot less space than other steering quickeners

    • Small lightweight aluminum body - 1.8 lbs
    • 3/4"-36 spline on both ends
    • Requires minimal space for mounting 2-1/2" x 2-1/2" x 8" overall
    • Anodized black finish

    15 Inch Cushioned Alum 3-Spoke Steering Wheel

    • Three spoke, 15" diameter aluminum steering wheel available in flat or 2-1/4" dish
    • Features a colored rubber cushion with a comfortable grip diameter of 1"
    • Choose from black, blue, red or purple

    Speedway Motors 91673130 Specifications

    KEY SPECS
    MFG. Part #91673130
    BrandSpeedway Motors
    GENERAL
    Shaft Diameter.75"
    Spline OD.75"
    Ratio2:1
    Dish2.25 inch
    Steering Wheel StyleReplacement
    NotesIncludes steering shafts, u-joint, couplers, heim, jam nuts, steering quickener, and steering wheel.
    Sold in QuantityKit
