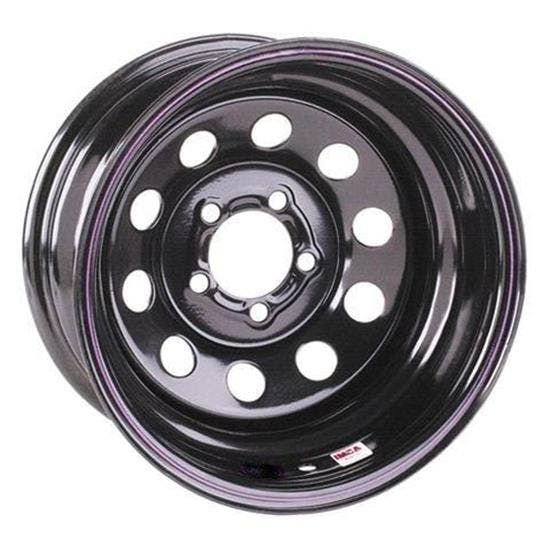

Speedway 15 x 8 IMCA Black Wheel 3 Backspace, Non-Beadlock, 5 on 5

Name: Speedway 15 x 8 IMCA Black Wheel 3 Backspace, Non-Beadlock, 5 on 5
Brand: Speedway Motors
SKU: 278328-3
Price: 81.99 USD
Availability: InStock
Rating: 4.9 (20 reviews)

20 Reviews

6 Questions

This Speedway steel 15 x 8 wheel is IMCA approved at an affordable price
They are lightweight to reduce unsprung and rotating weight yet strong enough for a 3500 pound stock car
5/8" stud holes allow for stud sizes from 7/16" to 5/8" when used with the required 1" hex lug nuts

Backspace:

3 Inch

$81.99

each

In Stock

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

15 Inch Wheel Diameter, 8" Width, 3" Wheel Backspace

This Speedway steel 15 x 8 wheel is IMCA approved at an affordable price
They are lightweight to reduce unsprung and rotating weight yet strong enough for a 3500 pound stock car
5/8" stud holes allow for stud sizes from 7/16" to 5/8" when used with the required 1" hex lug nuts
5 on 5" bolt pattern
Choose from 2", 3" or 4" backspace

See more details

Key Specs

Wheel Diameter	15 Inch
Width	8"
Wheel Bolt Pattern (in.)	5x5 in.
Wheel Bolt Pattern (mm)	5x127 mm
Wheel Backspace	3"

See more specs

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

How To Measure Wheel Bolt Pattern

Wheel Lug Nut Size Guide + Torque Spec Chart

Wheel Offset vs Backspacing Explained

Installation Tips

For off-road use only. The following must be considered when using Speedway circle track wheels for on-highway/street use when the wheel/tire assembly is being balanced. Speedway circle track wheels are lug-centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug-centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.

Have a Question?

Talk with one of our experts!

Call Us - 1.855.313.9176

Speedway Motors 278328-3 Details

Speedway IMCA approved non-beadlock 15 inch wheels at an affordable price. This 5 on 5 inch wheel weighs 20.5 pounds. They do not come with a beadlock ring. These durable wheels are lightweight, yet strong enough for 3500 lbs. stock car.

Steel
15 Inch Wheel
5 on 5" bolt pattern
15" x 8"
Weigh 20.5lbs
5/8" stud hole
IMCA approved
Non-Beadlock
Black painted finish
Durable
Lightweight, yet strong enough for 3500 lbs. stock car
Choose: 2", 3", or 4" backspace

Learn more about determining the proper wheel offset, torque sequence, and bolt pattern for your application by reading our tech article. Racing Wheel Principles.

Guides & Documents

How To Measure Wheel Bolt Pattern

Wheel Lug Nut Size Guide + Torque Spec Chart

Wheel Offset vs Backspacing Explained

CA Prop 65

Speedway Motors 278328-3 Specifications

KEY SPECS
MFG. Part #	278328-3
Brand	Speedway Motors
Wheel Diameter	15 Inch
Width	8"
Wheel Bolt Pattern (in.)	5x5 in.
Wheel Bolt Pattern (mm)	5x127 mm
Wheel Backspace	3"
Wheel Offset	-38 mm
Wheel Backspace Range	3.000" - 3.499"
Finish	Powder Coated
Color	Black
Beadlock Included	No
Material Type	Steel

GENERAL
Speedway Motors Catalog Part #	278-328
Wheel Material Type	Steel
DOT-Approved	No
Diameter	15"
Weight	20.5 lbs.
Sold in Quantity	Each
Valve Stem Included	No
Lug Nut Seat Style	45 Degree Conical
Center Cap Included	No
Beadlock	No
Bolt Pattern	5 on 5"
Lug Nuts Included	No
