Add to Cart
$134.99

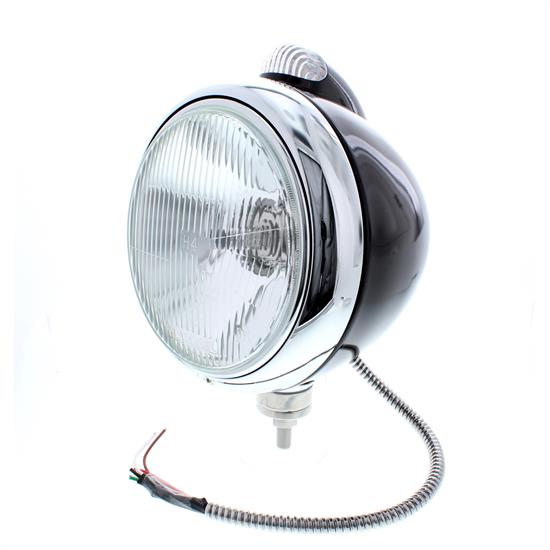

Speedway Guide 682-C Style 12 Volt Headlight, Black
Speedway Guide 682-C Style 12 Volt Headlight, Black

Speedway Guide 682-C Style 12 Volt Headlight, Black

Universal Fit, Bulb/Lens/Housing Assembly Headlight Component, Round Shape, H4 Bulb Type, Clear

21 Reviews | 11 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Speedway Guide 682-C Style 12 Volt Headlight, Black
Speedway Guide 682-C Style 12 Volt Headlight, Black
Speedway Guide 682-C Style 12 Volt Headlight, Black
Speedway Guide 682-C Style 12 Volt Headlight, Black
Speedway Guide 682-C Style 12 Volt Headlight, Black
Speedway Guide 682-C Style 12 Volt Headlight, Black
Speedway Guide 682-C Style 12 Volt Headlight, Black
Speedway Guide 682-C Style 12 Volt Headlight, Black
Speedway Guide 682-C Style 12 Volt Headlight, Black
X
Speedway Guide 682-C Style 12 Volt Headlight, Black
Speedway Guide 682-C Style 12 Volt Headlight, Black
Speedway Guide 682-C Style 12 Volt Headlight, Black
Speedway Guide 682-C Style 12 Volt Headlight, Black
Speedway Guide 682-C Style 12 Volt Headlight, Black
Speedway Guide 682-C Style 12 Volt Headlight, Black
Speedway Guide 682-C Style 12 Volt Headlight, Black
Zoomed In Image
Part # 91101020
$134.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • These Guide 682-C Style headlights will give you that period correct look you need for your old school hot rod
  • These 7" headlights with H4 halogen bulbs are sure to light up the night for your midnight cruise
  • Clear turn/marker light with five LED panel lights up amber to add function and style
  • Marker lights are able to function as both turn and marker lights with their dual brightness circuits
  • Wiring conduit is included making this a complete ready to install headlight set

Details

Headlight Component:
Bulb/Lens/Housing Assembly
Position:
Driver or Passenger Side
Shape:
Round
Overall Diameter:
8.5"
Bulb Type:
H4
Turn Signals Included:
No
Lens Color:
Clear
Housing Material:
Steel
Bezel Finish:
Chrome
Housing Color:
Black
Voltage:
12 volts
Overall Height:
10.75"
Depth:
8.50"
Stud Length:
1.30"
Thread Pitch:
1/2"-20
Sold in Quantity:
Each
MFG. Part #:
91101020
Notes:
Wires extend approx. 14" from housing.

Info

To get that period correct look, these headlights are what you need. They have a clear marker light with five amber LEDs, and H4 halogen blub. 12 volt operation with a 7" diameter light.

Clear lens marker light features a 5 led panel with a dual circuit function.  One circuit will function as a low brightness output with the second circuit having a high brightness output.  This allows for the marker light to be used for both the running/marker light and for the turn signals as needed.

  • This headlight has a standard 7” headlight that has a replaceable H4 bulb
  • Overall diameter at front is 8-1/2”
  • Front to back overall dimension is 8-1/2”
  • Overall height from mounting base surface to top of marker light is 10-3/4”

Sold each, two make a pair.

Headlight Wiring Chart (GIF)

Notes

Headlight Wiring Instructions:

Headlight metal housing - must be grounded (-)

5 Wire loom:

Braided Green - Headlight bulb low beam (+)

Braided Red   - Headlight bulb high beam (+)

Braided Black - Ground wire for headlight bulb (-)

Braided White- Top Mount Marker Light Low function (+)

Braided Brown- Top Mount Marker Light High function (+)

Specs

  • Overall Diameter:  8 ½"
  • Overall Depth:  8 ½"
  • Height from bottom of mount to top of upper light is 10 ¾"
