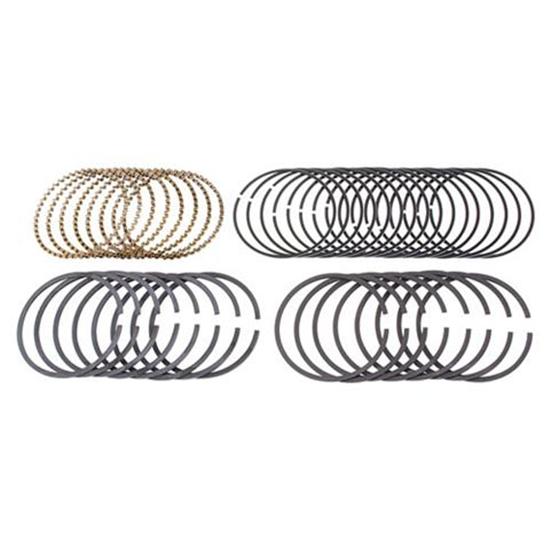

Speedway Gas Proven Series Piston Rings, 4.00 Bore, Styles A, C, D
Speedway Gas Proven Series Piston Rings, 4.00 Bore, Styles A, C, D

Speedway Gas Proven Series Piston Rings, 4.00 Bore, Styles A, C, D

Chevy Small Block V8, Conventional Piston Ring Design, Cast Iron Top Ring Material

6 Reviews | 2 Answered Questions
In Stock
Can Ship FREE
Select your vehicle to verify fitment.
Select Vehicle
Speedway Gas Proven Series Piston Rings, 4.00 Bore, Styles A, C, D
Speedway Gas Proven Series Piston Rings, 4.00 Bore, Styles A, C, D
X
Zoomed In Image
Part # 9152271
Starting from
$49.99
Quantity:
Ring Style
Add to Cart
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Piston Ring Style:
Select Over Bore/Ring Style to see
Piston Ring Diameter:
Select Over Bore/Ring Style to see
Piston Ring Design:
Conventional
Top Ring Material:
Cast Iron
Second Ring Material:
Cast Iron
Top Ring Thickness:
Select Over Bore/Ring Style to see
Second Ring Thickness:
Select Over Bore/Ring Style to see
Oil Ring Thickness:
Select Over Bore/Ring Style to see
Oil Ring Tension:
Standard Tension
Sold in Quantity:
Set
MFG. Part #:
Select Over Bore/Ring Style to see

Info

Speedway Gas Proven piston rings are the best value in piston rings! These tough rings will withstand 12.5 maximum compression, 7000 maximum sustained RPM, and up to 450 HP. First and second rings are cast iron yielding 55,000 psi strength with end gap factory set at .012" to .018". Three piece oil ring features chrome rails over a stainless steel expander, which gives uniform wall pressure and efficient oil control.

Designed for gasoline use. Not recommended for use with alcohol.

Ring Style Chart (GIF)

Installation Guide (PDF)

Notes

Speedway Piston Ring Hierarchy

  • Good - Speedway Gas Proven Series
  • Better -Speedway Moly
  • Best - Speedway Plasma Moly
  • Ultimate Race - Speedway Pro Series
Some parts are not legal for use in California or other states with similar laws/regulations
