Speedway Front Disc Brake Kit for Spindle-Mount Wire Wheels
Speedway Front Disc Brake Kit for Spindle-Mount Wire Wheels

Speedway Front Disc Brake Kit for Spindle-Mount Wire Wheels

Universal Fit, Front Position, Spindle Mount Bolt Pattern, 10 Inch Rotor Diameter, Gray

3 Reviews | 8 Answered Questions
On Backorder
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Speedway Front Disc Brake Kit for Spindle-Mount Wire Wheels
Speedway Front Disc Brake Kit for Spindle-Mount Wire Wheels
Speedway Front Disc Brake Kit for Spindle-Mount Wire Wheels
Speedway Front Disc Brake Kit for Spindle-Mount Wire Wheels
Speedway Front Disc Brake Kit for Spindle-Mount Wire Wheels
Speedway Front Disc Brake Kit for Spindle-Mount Wire Wheels
X
Speedway Front Disc Brake Kit for Spindle-Mount Wire Wheels
Speedway Front Disc Brake Kit for Spindle-Mount Wire Wheels
Speedway Front Disc Brake Kit for Spindle-Mount Wire Wheels
Speedway Front Disc Brake Kit for Spindle-Mount Wire Wheels
Zoomed In Image
We estimate this item will ship on or before May 20th.
Part # 7154050
$599.99
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • Includes 360 degree caliper brackets, steel rotors, Wilwood aluminum single piston, floating calipers and hardware
  • Works with '37-'48 style Ford passenger car spindles
  • Wire wheel and spindle are shown in photo for reference only and are NOT included in the brake kit
  • Caliper uses the .49” thick, 1.1 cubic inch Dynalite Single quick change pads
  • Black anodized to resist corrosion

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Position:
Front
Bolt Pattern:
Spindle Mount
Rotor Diameter:
10 Inch
Rotor Type:
Solid
Caliper Pistons:
One
Caliper Finish:
Type III Anodized
Color:
Gray
Parking Brake Provision:
No
MFG. Part #:
7154050
Rotor Thickness:
.25"
Rotor Shape:
Round
Hardware Included:
Yes
Sold in Quantity:
Kit
Notes:
Includes rotors, calipers, caliper brackets, brake pads, rotor spacers, and hardware.
Rotor Style:
Drilled
Front Rotor Included:
Yes
Front Rotor Diameter:
10 Inch
Rear Rotor Included:
No
Front Caliper Included:
Yes
Front Caliper Piston Quantity:
1
Front Caliper Finish:
Gray Type III Anodized
Rear Caliper Included:
No
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No

Info

Our lightweight T-bucket disc brake kit for wire wheels includes 360 degree caliper brackets, steel rotors, Wilwood aluminum single piston, floating calipers and hardware. Works with '37-'48 style Ford passenger car spindles.

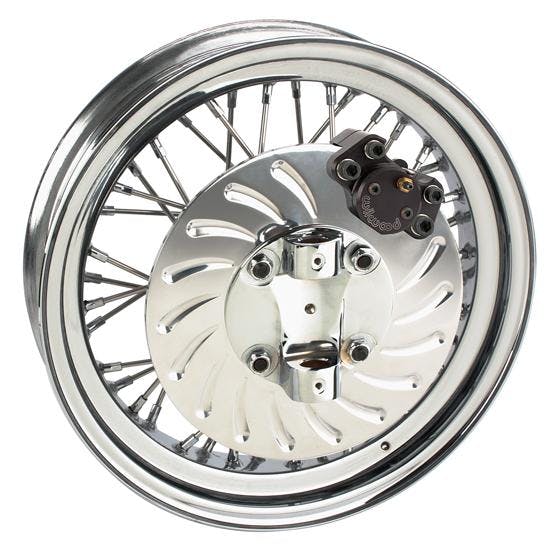

Note: Wire wheel and spindle are shown in photo for reference only and are NOT included in the brake kit.

  • Caliper uses the .49” thick, 1.1 cubic inch Dynalite Single quick change pads
  • Multiple 1/8"-27 NPT inlet and bleed screw locations
  • Black anodized to resist corrosion



Notes

  1. OEM-style rubber brake hoses generally cannot be adapted to Wilwood calipers. The caliper inlet fitting is a 1/8-27 NPT. The preferred method is to use steel adapter fittings at the caliper, either straight, 45 or 90 degree and enough steel braided line to allow for full suspension travel and turning radius, lock to lock.

Specs

  • Piston Bore: 1.75"
  • Maximum Rotor Width:  0.25"
  • Minimum Rotor Width:  0.18"
  • Caliper Weight:  1.40 lbs.
  • Caliper Dimensions (Link)

Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.

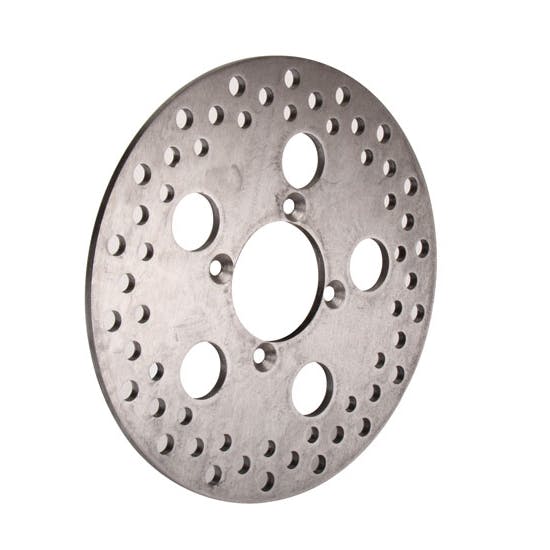

  • 1/4" X 10" Wire Wheel Rotor
    Qty x 2
  • Bolt Kit for 715-4050
    Qty x 1
  • LH Caliper Bracket 715-4050
    Qty x 1
  • RH Caliper Bracket 715-4050
    Qty x 1

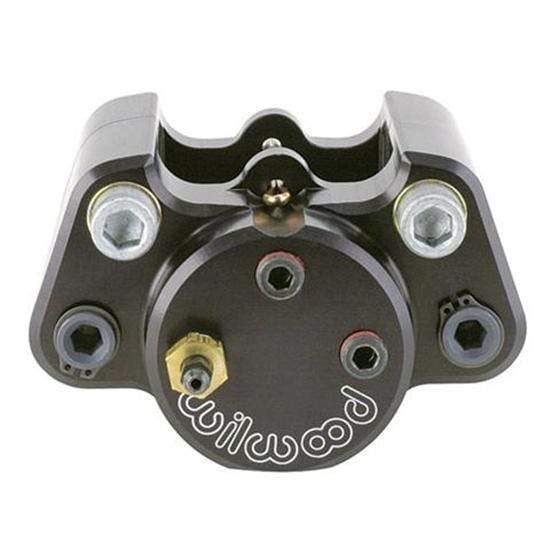

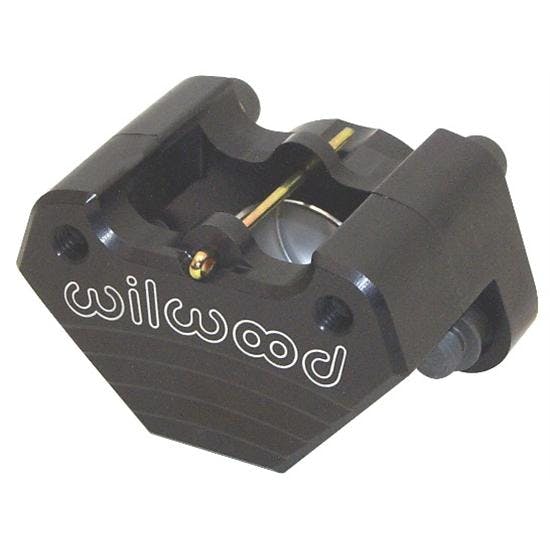

  • Wilwood 120-2498 Dynalite Floater Caliper, 1.75 Piston/.25 Disc
    Qty x 2
  • Rotor Spacer for 715-4050
    Qty x 2
  • Speedway 338 Medium Brake Pad
    Qty x 4
