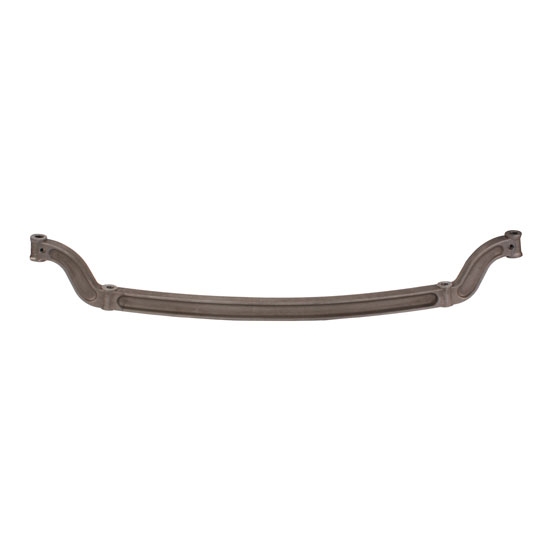

Speedway Forged 4 Inch Drop I-Beam Front Axle, Plain

#91035140

Speedway Forged 4 Inch Drop I-Beam Front Axle, Plain

Name: Speedway Forged 4 Inch Drop I-Beam Front Axle, Plain
Brand: Speedway Motors
SKU: 91035140
Price: 251.99 USD
Availability: InStock
Rating: 4.6 (17 reviews)

17 Reviews

13 Questions

Accepts stock or reproduction '37-'48 Ford spindles
Keeps your wheels inside the fenders
Allows for a lower ride height with adequate tire clearance

Finish:

Plain

Chrome

$251.99

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Ford Stock Spindle Style, Dropped Axle

Accepts stock or reproduction '37-'48 Ford spindles
Keeps your wheels inside the fenders
Allows for a lower ride height with adequate tire clearance
Features 4 inch drop and is designed as a replacement Ford front axle
Sized by original mount specs, making conversion easy

See more details

Key Specs

Spindle Style	Ford Stock
Straight Axle Style	Solid I-Beam
Dropped Axle	Yes
Suspension Height Adjustment	4 Inch Lowered
Finish	Natural

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 91035140 Details

These forged steel drop axles are perfect for your next street rod project! Our dropped front axle sizes keep the wheels inside the fenders. Keeping the wheels tucked in the fenders allows for a lower ride height with adequate tire clearance. All of our I-beam axles feature a 4 inch drop and are designed as a replacement Ford front axle. With a versatile design, these dropped axles also allow you to use your stock 1937-48 Ford spindles or our Ford I-beam reproduction spindles. 47" wide from king pin centers, our street rod axles are sized according to original mounting specs, making a stress free conversion for your classic Ford styled front end.

1-piece forged steel design
Axle forging is ground smooth and bead blasted for a superior finish
4" drop
47" wide (king pin centers)
Accepts stock '37-'48 Ford spindles or Speedway Ford-style reproduction spindles
34" spring perch centers
Use with 29" cross spring
2-1/4" tall wishbone boss

Note: In order to use this axle with 2 inch wishbones, you will need to machine the inside of your wishbones and/or the axle for them to work together. The spring perch bosses on stock Model A wishbones are 2-1/4 inches, as are '37-and-later Fords, but '32-36 Ford wishbones come in at 2 inches.

Charts

Front Axle/Suspension Tech Tips (JPG)

Guides & Documents

Straight Axles Technical Information (91035140)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Speedway Motors 91035140 Specifications

KEY SPECS
MFG. Part #	91035140
Brand	Speedway Motors
Spindle Style	Ford Stock
Straight Axle Style	Solid I-Beam
Dropped Axle	Yes
Suspension Height Adjustment	4 Inch Lowered
Finish	Natural
Material Type	Steel

GENERAL
King Pin Centers	47"
Drilled	No
Perch Centers	34.00"
King Pin Diameter	.812"
Sold in Quantity	Each
Notes	950812 REAMER .812 91032121 KING PIN SET

Ratings & Reviews

4.6

17 Reviews

Overall Assessment

Customers generally find the product well-built, with many describing it as high-quality and perfect for their projects. It's appreciated in the hot rod world for its suitability in ford axle and hardware systems. Most customers found that it fit well and exactly met their needs. Some skepticism was voiced about whether the axle was truly forged, but despite this, the customer recognized its heavy-duty nature and confirmed a willingness to repurchase. Overall, its qualities seem to set it apart in the market, with customers repeatedly praising its construction and stating they would buy it again.

Write A Review

4.6

17 reviews

Most Liked Positive Review

5.0

Quality axle at good price

Bought this axle for a 1929 Model A project I am working on- It looks to be high quality and the cost was very affordable.

Most Liked Negative Review

3.0

Doesn't appear to be forged.

Although this axle is "very stout" it is lacking the telltale signs of a true forging. The thick parting line down the center (usually ground down but still prevalent) leading me to believe this is a casting not a true forging. Even a casting would have a parting line (though a lot thinner) this is lacking a parting line altogether leading me to wonder just how this axle was made. Again this axle is very heavy duty and should work fine for many applications but I wanted to see some evidence of a true forging. This is the only reason I gave it 3 stars and not 5. Would I buy it again? Yes I would. Speedway has never let me down yet.

Filter by Ratings

Sort Reviews

l like it

5.0

a year ago

omer

ma.

Verified

put in a 1926 dodge bros sedan with a few modified parts but worked perfick

Would Recommend

Yes I will buy again

5.0

a year ago

Drew

New Zealand

Verified

Excellent product Excellent quality Speedway Motors you sell the best parts.

Would Recommend

Quality axle at good price

5.0

a year ago

JoeC

Laurens, SC

Verified

Bought this axle for a 1929 Model A project I am working on- It looks to be high quality and the cost was very affordable.

Would Recommend

Dropped axle

1.0

4 years ago

Tom

Virginia

Verified

Problems with fitment of spindles to axle had to recut to make fit.

Would Not Recommend

yes

5.0

5 years ago

Jeff

Wenatchede, WA

Verified

Well made

Would Recommend

I would purchase this axle again!

5.0

6 years ago

Rusty

Fallon, Nevada

Verified

In the hot rod world, finding a quality early ford axle and relating hardware is made easy with Speedway!

Would Recommend

Thanks

5.0

6 years ago

Gart

Winchester Idaho.

Verified

It looks great and fits great

Would Recommend

Front Axel

5.0

6 years ago

Richard

San Jose, CA

Verified

Rebuilding an 32 Ford street rod

Would Recommend

Yes

5.0

6 years ago

Flathead Alley

Montezuma, Ohio

Verified

Another well built product

I would buy this again.

5.0

6 years ago

AdamA

Ottawa, Ontario

Verified

Great quality

Would Recommend

Load More Reviews

Showing 10 of 17 reviews

Questions & Answers

13 Questions • 14 Answers

Sort Questions

Will this axel work with my stock 29 A model springs? I'm using your spring perch's with the shock mount.

by Louie Louie

• 4 years ago

1 answer

View Answer

I'm planning to use this axle in a 40 ford. I will split the bones with your kit. Which spring will fit. Thanks

by Vinnie

• 7 years ago

1 answer

View Answer

Hi what steering arms do I use with this in push pull type steering ?

by Cliffy

• 7 years ago

1 answer

View Answer

what is the king pin diameter, I have .812 pins, will they work with the axle you sell??

by mike

• 8 years ago

1 answer

View Answer

Will this axle work with steering kit https://www.speedwaymotors.com/Ford-Front-Axle-Steering-and-Brake-Kit-48-Inch-Axle,35260.html?sku=9133902-4%201/2-TRAD-PLN

by Zachariah

• 8 years ago

3 answers

View Answers

Are the forged drop axles ready to accept king pins, or will they require reaming first? Thank you

by Dw

• 8 years ago

3 answers

View Answers

I want to put a 4 inch drop I-beam front axle on my t-bucket. do you make it for a chevy all I see is for a ford

by no go joe

• 10 years ago

1 answer

View Answer

Will hairpins work with this axle if so what are the parts needed. If not do you have a forged axle that is compatible with both a model A and hairpins

by Drew

• 10 years ago

1 answer

View Answer

Can I use this axle on my T ? I want to use a beam axle and wish bones on my T. Is this the ideal axle? I want to use a reversed eye spring. What spring and shackles will I need?

by Ben23

• 11 years ago

1 answer

View Answer

Will this work with unsplit wishbones These are a direct fit as you say but at 34" it's narrower than the factory 37

by Whitetrashfabrications

• 11 years ago

1 answer

View Answer

Load More Questions

10 of 13 questions shown
