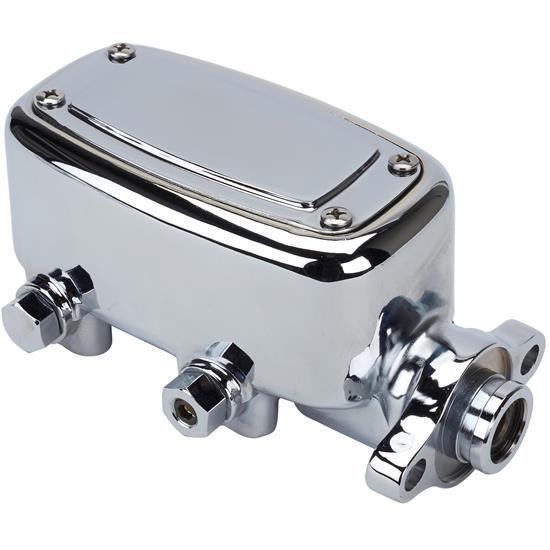

Speedway Deluxe Chrome Aluminum Master Cylinder, 1 Inch Bore
Universal Fit, Firewall Position, Disc/Drum Brake System Type, Tandem Outlet Count, Chrome
- Features a double adjustable proportioning valve, removable metering valve, stop light switch port and a larger fluid capacity
- 1" bore with 3/8"-24 IFF outlets
- Same size as the Corvette master cylinder, but only weighs 5 lbs.
This aluminum master cylinder features a double adjustable proportioning valve, removable metering valve, stop light switch port and a larger fluid capacity. It is approximately the same size as the Corvette master cylinder but only weighs 5 lbs. 1" bore. 3/8"-24 IFF outlets.
Learn more about selecting the proper master cylinder for your vehicle by reading our tech article, Brake System Selection.
- Brake System Builder's Tip (Link)
- This master cylinder must be bled using a syringe to push fluid back through the cylinder to achieve a true prime. A bird feeder syringe with curved end from your local pet supply store will work.
- You will also need to check the power brake booster pin adjustment to ensure proper release of the master cylinder to prevent a slight brake drag from incorrect installation.
- 3/8"-24 inverted flare outlets
- 1/8" female NPT port for stop light switch
- Master cyl over all mounted length 8 ½’
- Body length 7 ½”
- Body width not including bungs on side 4”
- Bungs stick out LH side 5/8”
- Master is 3 3/8” tall
- Lines hook up in the bottom or has adaptor to put them on the lh side.
910-31455 Instructions (PDF)
