Speedway Deluxe 37 Degree AN Line Flaring Tool
Speedway Deluxe 37 Degree AN Line Flaring Tool

Speedway Deluxe 37 Degree AN Line Flaring Tool

8 Reviews | 2 Answered Questions
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Limited Qty
Speedway Deluxe 37 Degree AN Line Flaring Tool
Speedway Deluxe 37 Degree AN Line Flaring Tool
Speedway Deluxe 37 Degree AN Line Flaring Tool
Speedway Deluxe 37 Degree AN Line Flaring Tool
Speedway Deluxe 37 Degree AN Line Flaring Tool
Speedway Deluxe 37 Degree AN Line Flaring Tool
Speedway Deluxe 37 Degree AN Line Flaring Tool
Speedway Deluxe 37 Degree AN Line Flaring Tool
Speedway Deluxe 37 Degree AN Line Flaring Tool
Speedway Deluxe 37 Degree AN Line Flaring Tool
Speedway Deluxe 37 Degree AN Line Flaring Tool
Speedway Deluxe 37 Degree AN Line Flaring Tool
X
Speedway Deluxe 37 Degree AN Line Flaring Tool
Speedway Deluxe 37 Degree AN Line Flaring Tool
Speedway Deluxe 37 Degree AN Line Flaring Tool
Speedway Deluxe 37 Degree AN Line Flaring Tool
Speedway Deluxe 37 Degree AN Line Flaring Tool
Speedway Deluxe 37 Degree AN Line Flaring Tool
Speedway Deluxe 37 Degree AN Line Flaring Tool
Speedway Deluxe 37 Degree AN Line Flaring Tool
Speedway Deluxe 37 Degree AN Line Flaring Tool
Speedway Deluxe 37 Degree AN Line Flaring Tool
Zoomed In Image
Part # 91089528
$97.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • The perfect tool to make 37-degree flares required for AN fittings
  • Standard brake and fuel lines are flared at 45-degrees which are not compatible with AN hardware
  • Forms stronger flares assured by a smooth, even radius formed at base of every flare with its precision machined chamfer
  • Slip-on yoke permits use in tight quarters
  • Works on 3/16", 1/4", 5/16", 3/8", 1/2" and 5/8" OD tubing such as aluminum, copper, brass and mild steel

Details

MFG. Part #:
91089528

Info

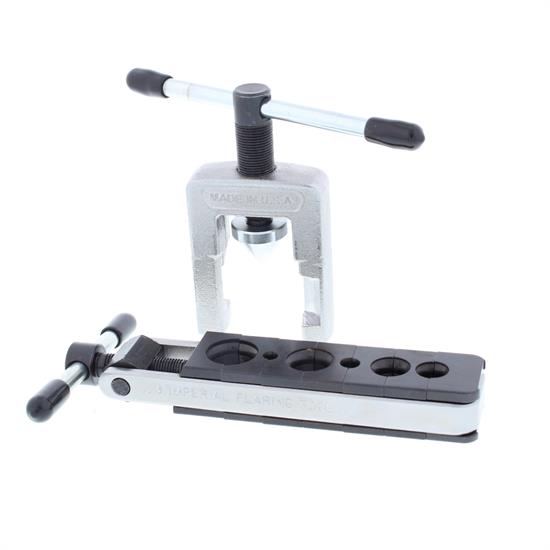

This is the tool you need to make the 37° flares required for AN fittings. Standard brake and fuel lines are flared at 45° which are not compatible with AN hardware. This tool forms stronger flares assured by a smooth, even radius formed at base of every flare with its precision machined chamfer. Plus, its also self gauging - just insert tube flush with top of die for accurate flare size.

  • Hardened steel, chrome-finished cone makes exceptionally smooth, high-strength flares with a radius at base of
    flare – instead of the sharp angle formed by ordinary tools
  • Slip-on yoke permits use in tight quarters
  • Allows flaring where there is little space between nut and tube end
  • Feed screw design provides smooth, easier operation
  • Positive gripping and self-gauging of tube for exact flare size
  • Sliding die blocks lock in place by clamp action

Works on 3/16", 1/4", 5/16", 3/8", 1/2" and 5/8" OD tubing such as aluminum, copper, brass and mild steel.

Learn more about flaring lines for our automotive fittings by reading our tech article. The Principles of Automotive Fittings

Item Details

Made in the U.S.A.

Notes

  1. We recommend using this tool only on soft material lines. Extensive use on 3/16" or larger steel lines may result in wearing out the tool quicker. We recommend using a lubricant on the swedge.
  2. If flaring stainless steel line or a great deal of mild steel line, we strongly recommend our ratcheting flaring tool 910-89524.

Charts

910-89528 Instructions (PDF)
