Add to Cart
$649.99
$589.99
Speedway Boost Reference Fuel System Kit with Walbro Pump
Speedway Boost Reference Fuel System Kit with Walbro Pump

Speedway Boost Reference Fuel System Kit with Walbro Pump

Universal Fit, -6 AN, Hoses Included, Fuel Pressure Regulator Included

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Speedway Boost Reference Fuel System Kit with Walbro Pump
Speedway Boost Reference Fuel System Kit with Walbro Pump
Speedway Boost Reference Fuel System Kit with Walbro Pump
Speedway Boost Reference Fuel System Kit with Walbro Pump
Speedway Boost Reference Fuel System Kit with Walbro Pump
Speedway Boost Reference Fuel System Kit with Walbro Pump
Speedway Boost Reference Fuel System Kit with Walbro Pump
Speedway Boost Reference Fuel System Kit with Walbro Pump
Speedway Boost Reference Fuel System Kit with Walbro Pump
Speedway Boost Reference Fuel System Kit with Walbro Pump
X
Speedway Boost Reference Fuel System Kit with Walbro Pump
Speedway Boost Reference Fuel System Kit with Walbro Pump
Speedway Boost Reference Fuel System Kit with Walbro Pump
Speedway Boost Reference Fuel System Kit with Walbro Pump
Speedway Boost Reference Fuel System Kit with Walbro Pump
Speedway Boost Reference Fuel System Kit with Walbro Pump
Speedway Boost Reference Fuel System Kit with Walbro Pump
Speedway Boost Reference Fuel System Kit with Walbro Pump
Zoomed In Image
Part # 91012812
Save 9%
$589.99
$649.99
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Sold in Quantity:
Kit
AN Size:
-6 AN
Fuel Filter Included:
Yes
Hoses Included:
Yes
Fuel Pressure Regulator Included:
Yes

Info

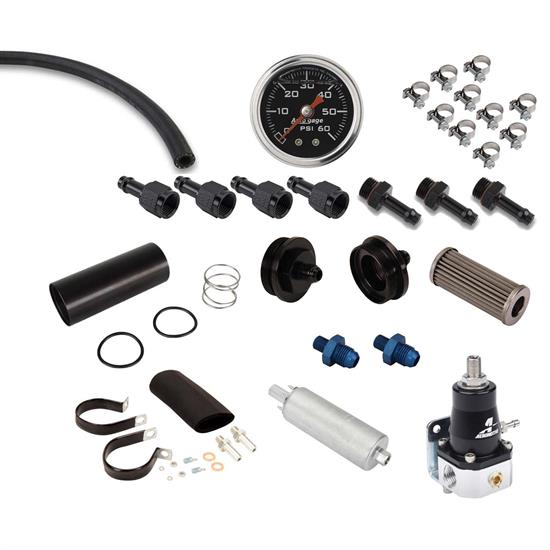

This kit includes all of the essentials to run your boost referenced fuel system. Complete with a Walbro pump, Aeromotive regulator, a stainless steel fuel filter, fittings, 20 feet of hose, and installation hardware, your turbocharged monster will get the fuel it needs at a fuel pressure rate that rises on a 1:1 ratio.

Kit includes:

  • (1) 910-13129 Aeromotive 13129 EFI Bypass Fuel Pressure Regulator, 30-70 PSI
  • (1) 960-392 Walbro GSL392 Inline Racing Fuel Pump
  • (1) 960-939 Walbro Inline Fuel Pump Installation Kit with Brackets
  • (2) 960-3039 AN 6 Fitting for Walbro GL392 Fuel Pump
  • (1) 910-11762 Short Black Fuel Filter Housing w/ Hardware
  • (1) 910-11702 OTR 4 Inch Stainless Steel Fuel Filter Element, 140 Microns
  • (2) 910-11753-AN6 AN-6 Filter Inlet/Outlet
  • (3) 425-785066ERL Earls 785066ERL Vapor Guard 9/16-18 O-Ring Port to 3/8
  • (4) 425-750166ERL Earls 750166ERL Vapor Guard Straight Hose End -6 to 3/8 Inch
  • (1) 425-750066ERL-20 Earls 750066ERL Vapor Guard EFI 3/8 Inch Hose, 20 Ft.
  • (2) 425-75006ERL Earls 75006ERL Vapor Guard Screw Type 3/8 Hose Clamp 5-Pack
  • (1) 182-2173 AutoMeter 2173 Auto Gage Mechanical Pressure Gauge, 1-1/2, 0-60

Notes

Additional Information:

910-13129 Aeromotive 13129 EFI Bypass Fuel Pressure Regulator, 30-70 PSI

  • Base pressure adjustable from 30-70 psi
  • Rising rate fuel pressure regulator rises on a 1:1 ratio with boost
  • 1/8" NPT gauge port
  • Vacuum boost port
  • Stainless steel mounting bracket

960-939 Walbro GSL392 Inline Racing Fuel Pump

  • Pusher style fuel pump - to be mounted as close to tank as possible
  • Must be mounted below fuel tank for proper fuel feed to pump
  • Overall Length: 6.44"
  • Outside Diameter: 1/70"
  • Aluminum material
  • Natural finish
  • 255 LPH free flow rate
  • 60 psi maximum pressure
  • 10mm x 1.0 inlet/outlet size
  • Lightweight, compact design

960-939 Walbro Inline Fuel Pump Installation Kit with Brackets

  • Insulated pump body clamps
  • 3/8" hose barb fuel fittings & crush washers
  • GSL392 wiring eyelets, nuts, and washers

910-11702 OTR 4 Inch Stainless Steel Fuel Filter Element, 140 Microns

  • Safe for use with E85, methanol, race gas, or pump gas

425-750066ERL-20 Earls 750066ERL Vapor Guard EFI 3/8 Inch Hose, 20 Ft.

  • 225 psi
  • Primary Barrier Layer (innermost) offers high resistance to heat and aggressive fuels
  • Three-way shield against hose deterioration
  • Vapor Guard Barrier (middle) is a Thermoplastic layer that provides superior fuel isolation and virtually eliminates vapors from escaping through the hose
  • Exterior Cover Barrier (outermost) provides extreme tolerance to heat and ozone

425-75006ERL Earls 75006ERL Vapor Guard Screw Type 3/8 Hose Clamp 5-Pack

  • Stainless Steel

182-2173 AutoMeter 2173 Auto Gage Mechanical Pressure Gauge, 1-1/2, 0-60

  • 0-60 psi
  • 1.5" Direct Mount
  • Liquid Filled
  • Black w/ Fluorescent Red Needle

910-13129 Instructions

182-2173 Instructions

Fuel Filter Configurations

Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Aeromotive 13129 EFI Bypass Fuel Pressure Regulator, 30-70 PSI
    Qty x 1
  • Walbro GSL392 Inline Racing Fuel Pump
    Qty x 1
  • Walbro Inline Fuel Pump Installation Kit with Brackets
    Qty x 1
  • AN 6 Fitting for Walbro GL392 Fuel Pump
    Qty x 2
  • BLK SHORT FILTER HSING W/HW
    Qty x 1
  • OTR 4 Inch Stainless Steel Fuel Filter Element, 140 Microns
    Qty x 1
  • -6 AN Fuel Filter Inlet/Outlet
    Qty x 2
  • Earls 785066ERL Vapor Guard 9/16-18 O-ring Port to 3/8
    Qty x 3
  • Earls 750166ERL Vapor Guard Straight Hose End -6 to 3/8 Inch
    Qty x 4
  • Earls 750066ERL Vapor Guard EFI 3/8 Inch Hose Bulk, 20 ft
    Qty x 1
  • Earls 750006ERL Vapor Guard Screw Type 3/8 Hose Clamp 5/Pack
    Qty x 2
  • AutoMeter 2173 Auto Gage Mechanical Press. Gauge, 1-1/2 , 0-60
    Qty x 1
