Speedway 1955-59 Chevy Pickup Under Box Aluminum Fuel Tank Kit

Speedway 1955-59 Chevy Pickup Under Box Aluminum Fuel Tank Kit
55-59 Chevy, 55-59 GMC, Custom Replacement Fuel Tank Style, Carbureted Fuel System Type
On Backorder
Ships FREE
Select Vehicle








Speedway 1955-59 Chevy Pickup Under Box Aluminum Fuel Tank Kit
X







We estimate this item will ship on or before April 1st.
Part # 91604039
$570.99
kit
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
- Compatible with 1955-59 Chevy Pickup

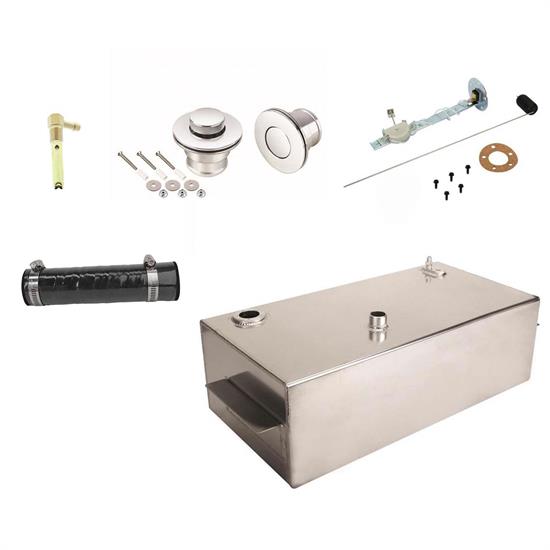

- Includes fuel tank, roll-over vent valve, fuel filler hose, billet aluminum filler neck w/ pop-up gas cap, and a fuel level sender
- Male AN#6 fitting affixed to a pick-up tube threaded into tank with 3/8" NPT threads
- Measures 28.38" x 14.63" x 9"
- Includes 12" length of fuel resistant 1-1/2" diameter hose and two tube clamps
Build Your Kit
You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.Next
Details
Fuel Tank Style:
Custom Replacement
Fuel System Type:
Carbureted
Fuel Capacity Range:
15.00-19.99 Gallons
Capacity:
17 gallons
Material Type:
Aluminum
Finish:
Natural
Color:
Natural
Sending Unit Included:
Yes
Ohm Range:
33-240
Fuel Pump Included:
No
Filler Neck Included:
Yes
Hardware Included:
Yes
Overall Length:
28.38"
Overall Width:
14.63"
Overall Height:
9.00"
Outlet Fitting:
3/8 NPT to AN6
MFG. Part #:
91604039
Sold in Quantity:
Kit
Info
If you've been wanting to replace your rusty old fuel tank with a shiny new one under the box of your 1955-59 Chevy Pickup, then look no further! This kit features everything you will need to mount a brand new fuel tank under your pick-up bed and comes with a fuel tank, roll-over vent valve, fuel filler hose, billet aluminum filler neck w/ pop-up gas cap, and a fuel level sender.
This kit includes:
- 910-76055 1955-59 Chevy Pickup Under Box Aluminum Fuel Tank
- 15 gallon aluminum fuel tank
- Designed to be mounted under the 1955-59 Chevy Pickup box
- DOES NOT accept original truck fuel sending unit
- DOES accept common aftermarket gauge sending units (included in kit)
- Measures 28.38" x 14.63" x 9"
- 1/4" female NPT thread for vent hose/fitting (works perfectly with included 458-400)
- Male AN#6 fitting affixed to a pick-up tube threaded into tank with 3/8" NPT threads
- 458-400 Speedway Fuel Tank Roll-Over Vent Valve
- Automatically stops fuel flow if your car somehow gets upside down
- Inside is a needle/ball seat which stops fuel flow out the vent (if you get upside down)
- Accepts 5/16" hose
- Fits into 1/4" NPT port
- Measures 3" bottom-to-top
- 617-9060-12 Fuel Filler Hose Kit, 1-1/2" I.D., 12 Inch
- Includes 12" length of fuel resistant 1-1/2" diameter hose and two tube clamps
- 910-12521 Speedway Billet Aluminum Fuel Filler Neck w/ Pop-Up Gas Cap
- Polished billet aluminum pop-up flush mount gas cap
- Measures 2-1/2" O.D. and 1.600" tall
- Works with 1-1/2" hose
- Does not have a vent hole. Some air might get past the threads that hold the cap on, but there is no dedicated venting passage
- 910-65082 Speedway Fuel Level Sender, 240-33 Ohm, 6-24 Inch
- Works in tanks from 6" to 24" deep
- Can be used as RH or LH swing with minor adjustment
- Comes with seal and all mounting hardware
- 240 ohms empty, 33 ohms full
- 2-3/4" flange OD
- Overall Length: 15.50"
Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
What's In The Kit
Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
-
1955-59 Chevy Pickup Under Box Aluminum Fuel TankPart # 91076055Qty x 1
-
Speedway Fuel Tank Roll-Over Vent ValvePart # 458400Qty x 1
-
Installation Hose Kit for 617-9040, 12 Inch LengthPart # 6179060-12Qty x 1
-
Speedway Billet Aluminum Fuel Filler Neck w/ Pop-Up Gas CapPart # 91012521Qty x 1
-
Universal Aftermarket Fuel Tank Gas Gauge Level Sender UnitPart # 91065082Qty x 1
