#9173423

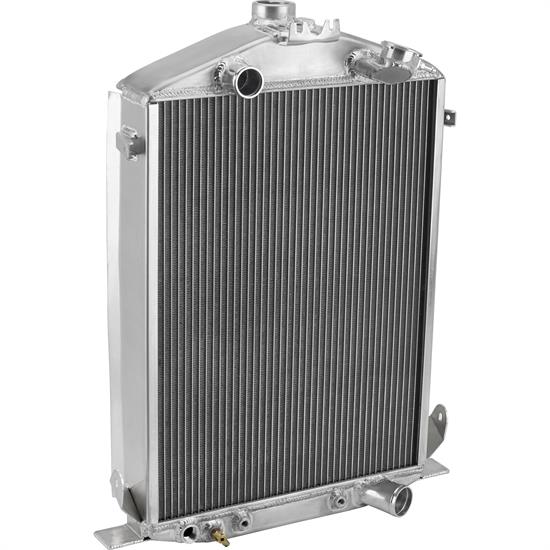

1932 Ford Aluminum Radiator, Chevy Engine, Stock Height
- Designed for Chevy engines in a 1932 Ford chassis and work with stock '32 grille shells
- Quality, rugged, 100% TIG-welded aluminum construction won't come apart or leak like epoxy
- Two rows of 1" furnace brazed cores offer more cooling fins per inch over smaller copper radiators
$415.99
/each
In Stock
Garage Sale alternatives: from $302.59
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Single Pass Radiator Style, Aluminum, 2 Row Quantity
- Designed for Chevy engines in a 1932 Ford chassis and work with stock '32 grille shells
- Quality, rugged, 100% TIG-welded aluminum construction won't come apart or leak like epoxy
- Two rows of 1" furnace brazed cores offer more cooling fins per inch over smaller copper radiators
- Dummy filler neck in the original location for that stock look, 1.50" Left Offset inlet and 1.75" passengers side outlet and includes brackets for radiator support rods
- Built-in automatic transmission cooler - 1/8" NPT inlet and outlet, 1/2" NPT port at the bottom for sending unit
Key Specs
| Radiator Style | Single Pass |
| Radiator Flow Direction | Downflow |
| Material Type | Aluminum |
| Inlet Location | Upper driver side |
| Outlet Location | Lower passenger side |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9173423 Details
Speedway Motors 9173423 Details
There is no reason not to run an aluminum radiator in your '32 Ford hot rod anymore. At first, people were leery they would not stand up to vibration. Then they thought they would be damaged easily. Our radiators have stood the test of time and have proven themselves to be reliable, tough and efficient in both cooling and cost. These radiators are designed for Chevy engines in a 1932 Ford chassis and work with stock '32 grille shells.
- Quality, rugged, 100% TIG-welded aluminum construction
- For Chevy engine in a 1932 Ford chassis
- Use with stock height '32 Ford grille shell
- Two rows of 1" furnace brazed cores
- Dummy filler neck in the original location
- Includes brackets for radiator support rods
- Built-in automatic transmission cooler - 1/8" NPT inlet
- Drain petcock
- 1/2" NPT port at the bottom for sending unit
- Stamped upper & lower tanks
- Lower tank depth is 3” front to back
- Upper tank depth is 3-¾” front to back
- Side straps/baffles are 4” from front to back
- Radiator neck extends 1” up past upper tank
Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
Specs
Guides & Documents
Speedway Motors 9173423 Specifications
Speedway Motors 9173423 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9173423 |
| Brand | Speedway Motors |
| Radiator Style | Single Pass |
| Radiator Flow Direction | Downflow |
| Material Type | Aluminum |
| Inlet Location | Upper driver side |
| Outlet Location | Lower passenger side |
| Row Quantity | 2 |
| Tube Size | 1.00" |
| Overall Width Range | 17.00" to 17.99" |
| Overall Width | 17.25" |
| Overall Height Range | 27.00" to 27.99" |
| Overall Height | 27" |
| Overall Thickness | 3.75" |
| Core Width Range | 16.00" to 16.99" |
| Core Width | 16.5" |
| Core Height Range | 21.00" to 21.99" |
| Core Height | 21.75" |
| Core Thickness | 3" |
| Finish | Natural |
| Cooling Fan | Not Included |
| Transmission Cooler | Yes |
| Shroud Included | No |
| Inlet Size | 1.5 |
| Radiator Cap Included | No |
| GENERAL | |
| Fan Included | No |
| Notes | Uses stock '32 grille shell. Cooler port is 1/8" NPT, Sensor port is 1/2" NPT. |
| Sold in Quantity | Each |
