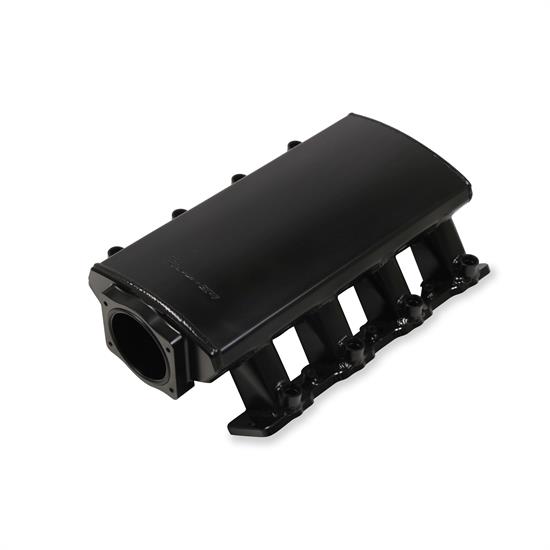

Sniper 830102 EFI Low-Profile Sheet Metal Intake Manifold, 92mm
Sniper 830102 EFI Low-Profile Sheet Metal Intake Manifold, 92mm

Sniper 830102 EFI Low-Profile Sheet Metal Intake Manifold, 92mm

LS7 Chevy LS V8, EFI Fuel System Type, Multi-port Injection Style, 1,800-6,400 RPM Range, Black

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Sniper 830102 EFI Low-Profile Sheet Metal Intake Manifold, 92mm
Sniper 830102 EFI Low-Profile Sheet Metal Intake Manifold, 92mm
Zoomed In Image
We estimate this item will ship on or before June 27th.
Part # 425830102
Save 7%
$597.99
$644.95
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Sniper to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Fuel System Type:
EFI
Injection Style:
Multi-port
RPM Range:
1,800-6,400
Material Type:
Aluminum
Finish:
Anodized
Color:
Black
EGR:
No
Throttle Body Bore Size:
92mm
Intake Section Included:
Complete
Plenum Material:
Aluminum
Plenum Finish:
Black Anodized
Throttle Body Included:
No
Injectors Included:
No
Aftermarket Fuel Rail Required:
No
Fuel Rails Included:
Yes
Runners Included:
Yes
Runners Removable:
No
Supplemental Bosses Cast-In:
No
Supplemental Bosses Machined:
No
MFG. Part #:
830102
Sold in Quantity:
Each
GTIN Code:
090127740101

Info

Holley Sniper Fabricated Manifolds continues to push the aftermarket by introducing Low Profile intakes for GM LS Engines. These Intakes are a good looking, perform well, and offer an extremely good value for a performance sheet metal style intake manifold for the very popular GM LS engine family.

Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit. This updated design was developed to allow the end user to fit under a stock hood.

Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. Choice of Throttle Body opening sizes of 92mm & 102mm are available

Hi-Ram Sheet Metal Fabricated Intake Manifold LS7 92mm Throttle Body opening + Fuel Rail Kit Black with Sniper logo -Low Profile

  • Low Profile Design (overall 1.875” shorter) allows fitment under stock hoods on Corvette, Camaro, Firebird, GTO, and others where hood clearance is at a minimum
  • Shortened runners allow for compact design. Overall plenum volume maintained by increasing the overall width of the plenum and increasing the overall dimensions of the runner.
  • 3mm (1/8") thick T6061 Sheet Aluminum construction, strong and durable even under high horsepower and boosted conditions
  • Available in 92mm and 102mm bore Throttle Body Openings
  • 100% TIG welded
  • Intakes include 3/8" Fuel rail kits with -8AN fittings and crossover braided line capable of supporting 750+ horsepower (laser engraved Sniper logo)
  • Runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders

Installation Instructions

Some parts are not legal for use in California or other states with similar laws/regulations
