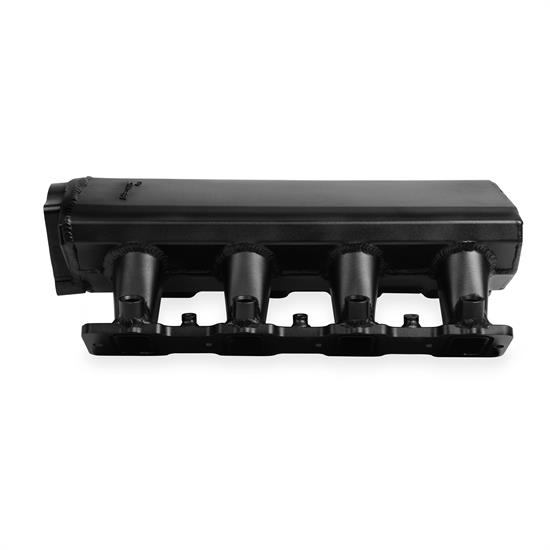

Sniper 820102 EFI Low-Profile Sheet Metal Intake Manifold, 92mm
Chevy LS V8, EFI Fuel System Type, Multi-port Injection Style, Hi-Ram Intake Manifold Type
- This item ships directly from the manufacturer. It may take an additional 2 business days for Sniper to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit. This updated design was developed to allow the end user to fit under a stock hood.
Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. Choice of Throttle Body opening sizes of 92mm & 102mm are available
Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 92mm Throttle Body opening + Fuel Rail Kit Black with Sniper logo -Low Profile
- Low Profile Design (overall 1.875” shorter) allows fitment under stock hoods on Corvette, Camaro, Firebird, GTO, and others where hood clearance is at a minimum
- Shortened runners allow for compact design. Overall plenum volume maintained by increasing the overall width of the plenum and increasing the overall dimensions of the runner.
- 3mm (1/8") thick T6061 Sheet Aluminum construction, strong and durable even under high horsepower and boosted conditions
- Available in 92mm and 102mm bore Throttle Body Openings
- 100% TIG welded
- Intakes include 3/8" Fuel rail kits with -8AN fittings and crossover braided line capable of supporting 750+ horsepower (laser engraved Sniper logo)
- Runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders
