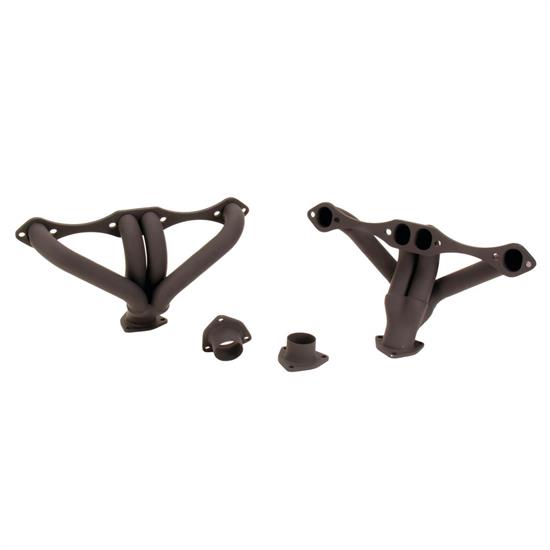

Small Block Chevy Hugger Tight-Fit Headers for Angle Plug Heads, Raw

#9308037

Small Block Chevy Hugger Tight-Fit Headers for Angle Plug Heads, Raw

Name: Small Block Chevy Hugger Tight-Fit Headers for Angle Plug Heads, Raw
Brand: Speedway Motors
SKU: 9308037
Price: 261.99 USD
Availability: InStock
Rating: 4.2 (9 reviews)

9 Reviews

8 Questions

Designed to be used with standard exhaust port S/B Chevy heads that have angle spark plugs
1 5/8" primary tubes and 2 1/2" collectors
Complete with reducers, gaskets and bolts

Finish:

Black

Silver Ceramic Stainless Steel

$261.99

/pair

In Stock

Garage Sale alternatives: from $197.19

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Universal Fit, Block Hugger Header Tube Type, Steel

Designed to be used with standard exhaust port S/B Chevy heads that have angle spark plugs
1 5/8" primary tubes and 2 1/2" collectors
Complete with reducers, gaskets and bolts

See more details

Key Specs

MFG. Part #	9308037
Header Tube Type	Block Hugger
Exhaust Port Shape	Round
Flange Style	Standard
Primary Tube Diameter	1-5/8"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 9308037 Details

These tight-fit headers are designed to be used with standard exhaust port Small Block Chevy heads that have angle spark plugs. Features 1-5/8" primary tubes and 2-1/2" collectors with 2-1/4" outlets. These shorty headers are perfect for tight-fit installations.

The block hugger hearders come with bolts, gaskets and reducers. The port openings on the tight fit headers are round and work fine on heads with round or rectangle ports.

Application

Can be used with most oil filter systems and transmission/starter combinations.
Does not fit '55-'57 Chevy cars, Camaros, or other modern vehicles which have a crossmember below the engine's center two exhaust ports.

Charts

Header Dimensions (GIF)

Guides & Documents

Headers Sizing Chart (9308037)

Choosing the Right Headers

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

WARNING:

Cancer and Reproductive Harm – www.P65Warnings.ca.gov

CARB warning

Speedway Motors 9308037 Specifications

KEY SPECS
MFG. Part #	9308037
Brand	Speedway Motors
Header Tube Type	Block Hugger
Exhaust Port Shape	Round
Flange Style	Standard
Primary Tube Diameter	1-5/8"
Material Type	Steel
Color	Natural
Weld-Up	No
Collector Diameter	2-1/2 Inch
Finish	Raw
Hardware Included	Yes
Gasket(s) Included	Yes
Collector Reducers Included	Yes
Collector Reducer Exit Diameter	2.25"
Collector Attachment Type	3-bolt flange

GENERAL
Sold in Quantity	Pair
Flange Thickness	.32"
Port Height	1.55"
Port Width	1.5"
Overall Height	10.25"
Header Dimension A	4.15"
Header Dimension B	10.30"
Header Dimension C	18.25"

Ratings & Reviews

4.2

9 Reviews

Overall Assessment

Customers have highlighted the product's quality and fit as key features. Reviewers noted that it was a close fit and stayed clear of plug wires, which enhanced its usability. They appreciated its practicality, with a minor modification needed in certain case to clear the steering column. Some customers had to modify the bolts for a perfect fit. Despite issues with fit in a few cases, the general consensus was that the product is well-made. Users recommend the product due to its superior adaptability compared to competitor products.

Write A Review

4.2

9 reviews

Filter by Ratings

Sort Reviews

Exact fit/ no issues!

5.0

2 years ago

Terry

Virginia

Verified

Every item I've purchased from SM has been 100% PERFECT! And tech help is more knowledgable than Jegs!!!! Hands down!

Would Recommend

I would use this again

5.0

7 years ago

Tuff

Utah

Verified

Worked great for my application

Would Recommend

doesnt fit cant use it

3.0

8 years ago

Bummer Dude

was told these would fit my 68 C10 short box with the 68 factory 327 and the 68 tranny including missing the clutch pedal arm and linkage and it doesnt even come close to fitting not happy about that the product its self isnt bad just bad info just going to go back to the factory set up

Would Recommend

O.K. so far

3.0

8 years ago

mike

stockton, ca

Verified

I have the engine on a stand making sure everything fits before sticking in the chassis. The header bolts are too long, need to shorten them or buy shorter. The collector bolts are too short, have to buy longer.

Would Recommend

Just What Was needed!

5.0

8 years ago

Sam

Columbu, OH

Verified

Installing sbc in 46 Studebaker. I'd used this same engine earlier but sold the car with prior headers. A set I had would not work with angle plug heads. Very pleased, fit and cleared everything with plenty of room. Speedway hits a home run again, and affordable too!

Would Recommend

Almost a perfect fit for my 240dl volvo v8 conversion

5.0

8 years ago

Brad

Middle river, md

Verified

Only a minor modification to clear the steering column. Tons of plug and wire clearance!

Would Recommend

Well made

4.0

9 years ago

Mark

Verified

Well-made headers, just didn't work for my application.

Would Recommend

Got just what I ordered

4.0

11 years ago

A/C Man

Lawton, Oklahoma

Verified

These went on a 93 Volvo with an LT1 and TKO 5 speed. Passenger side was an easy fit. Drivers side needed a bit of modification to clear the stearing and the knock sensor had to be moved but all in all they worked out nicely. Thank you

Would Recommend

This product is a nice close fit

4.0

12 years ago

curlcurl

Undisclosed

Verified

This product is a nice close fit. The header tubes stay away from the plug wires but hug the engine tight. Had to cut and extend the driver side because of steering column interference.

Would Recommend

Showing 9 of 9 reviews

Questions & Answers

8 Questions • 8 Answers

Sort Questions

Will these fit a 1962 impala with sbc 327?

by JP

• 7 years ago

1 answer

View Answer

Will this fit a 1992 Isuzu Rodeo 3.1 Liter XS 2 wheel drive?

by Edward

• 10 years ago

1 answer

View Answer

will this product fit a 1964 -10 pick up with a 350 turbo?

by woody

• 11 years ago

1 answer

View Answer

Will these fit a 4x4

by Smokey

• 11 years ago

1 answer

View Answer

Will these work with straigh plug heads too??

by Hemirrhoid

• 11 years ago

1 answer

View Answer

Will these fit a 1987 s-10 with a 350 and angle plug heads?

by ericq1977

• 11 years ago

1 answer

View Answer

will these headers fit a 1974 nova with an engine swap?

by alexhz

• 12 years ago

1 answer

View Answer

What gauge steel are these headers made of?

by glenn1234

• 13 years ago

1 answer

View Answer

8 of 8 questions shown

Fitment

1959 Chevy 3A

2-Piece Rear Main Chevy 283

1959 Chevy 3B

2-Piece Rear Main Chevy 283

1959 Chevy 3C

2-Piece Rear Main Chevy 283

1959 Chevy 3D

2-Piece Rear Main Chevy 283

1959 Chevy 3E

2-Piece Rear Main Chevy 283

1959 Chevy 3F

2-Piece Rear Main Chevy 283

1959 Chevy 3G

2-Piece Rear Main Chevy 283

1957 Chevy Bel Air

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1958-1967 Chevy Bel Air

2-Piece Rear Main Chevy 283

1968 Chevy Bel Air

Gen 1 L14 Small Block Chevy

1970-1975 Chevy Bel Air

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1958-1967 Chevy Biscayne

2-Piece Rear Main Chevy 283

1968 Chevy Biscayne

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Biscayne

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1969-1973 Chevy Blazer

Gen 1 L14 Small Block Chevy

1958-1961 Chevy Brookwood

2-Piece Rear Main Chevy 283

1969 Chevy Brookwood

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Brookwood

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400
Gen 1 L14 Small Block Chevy

1960-1967 Chevy C10

2-Piece Rear Main Chevy 283

1968-1973 Chevy C10

Gen 1 L14 Small Block Chevy

1976-1980 Chevy C10

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1960-1967 Chevy C10 Suburban

2-Piece Rear Main Chevy 283

1968-1973 Chevy C10 Suburban

Gen 1 L14 Small Block Chevy

1960-1967 Chevy C20

2-Piece Rear Main Chevy 283

1968-1973 Chevy C20

Gen 1 L14 Small Block Chevy

1976-1980 Chevy C20

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1960-1967 Chevy C20 Suburban

2-Piece Rear Main Chevy 283

1968-1973 Chevy C20 Suburban

Gen 1 L14 Small Block Chevy

1976-1980 Chevy C20 Suburban

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1960-1967 Chevy C30

2-Piece Rear Main Chevy 283

1968-1973 Chevy C30

Gen 1 L14 Small Block Chevy

1976-1979 Chevy C30

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1967-1968 Chevy Camaro

Gen 1 DZ Small Block Chevy

1969 Chevy Camaro

Gen 1 DZ Small Block Chevy
Gen 1 L14 Small Block Chevy

1970-1973 Chevy Camaro

Gen 1 L14 Small Block Chevy

1980-1981 Chevy Camaro

2-Piece Rear Main Chevy 267

1966-1967 Chevy Caprice

2-Piece Rear Main Chevy 283

1968-1969 Chevy Caprice

Gen 1 L14 Small Block Chevy

1970-1973 Chevy Caprice

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Caprice

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1980-1982 Chevy Caprice

2-Piece Rear Main Chevy 267

1964-1967 Chevy Chevelle

2-Piece Rear Main Chevy 283

1968-1969 Chevy Chevelle

Gen 1 L14 Small Block Chevy

1970-1973 Chevy Chevelle

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400
Gen 1 L14 Small Block Chevy

1963-1967 Chevy Chevy II

2-Piece Rear Main Chevy 283

1968 Chevy Chevy II

Gen 1 L14 Small Block Chevy

1957-1961 Chevy Corvette

2-Piece Rear Main Chevy 283

1957 Chevy Del Ray

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1958 Chevy Del Ray

2-Piece Rear Main Chevy 283

1959-1960 Chevy El Camino

2-Piece Rear Main Chevy 283

1964-1967 Chevy El Camino

2-Piece Rear Main Chevy 283

1968-1969 Chevy El Camino

Gen 1 L14 Small Block Chevy

1970-1973 Chevy El Camino

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy El Camino

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1979-1982 Chevy El Camino

2-Piece Rear Main Chevy 267

1969 Chevy Estate

Gen 1 L14 Small Block Chevy

1970 Chevy Estate

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400
Gen 1 L14 Small Block Chevy

1976 Chevy G10

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1968-1973 Chevy G10 Van

Gen 1 L14 Small Block Chevy

1975-1980 Chevy G20

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1967 Chevy G20 Van

2-Piece Rear Main Chevy 283

1968-1973 Chevy G20 Van

Gen 1 L14 Small Block Chevy

1975-1980 Chevy G30

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1958-1967 Chevy Impala

2-Piece Rear Main Chevy 283

1968-1969 Chevy Impala

Gen 1 L14 Small Block Chevy

1970-1973 Chevy Impala

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Impala

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1980-1982 Chevy Impala

2-Piece Rear Main Chevy 267

1960-1967 Chevy K10

2-Piece Rear Main Chevy 283

1968-1973 Chevy K10

Gen 1 L14 Small Block Chevy

1975-1980 Chevy K10

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1960-1967 Chevy K10 Suburban

2-Piece Rear Main Chevy 283

1968-1973 Chevy K10 Suburban

Gen 1 L14 Small Block Chevy

1975-1979 Chevy K10 Suburban

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1960-1967 Chevy K20

2-Piece Rear Main Chevy 283

1968-1973 Chevy K20

Gen 1 L14 Small Block Chevy

1975-1980 Chevy K20

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1967 Chevy K20 Panel

2-Piece Rear Main Chevy 283

1960-1967 Chevy K20 Suburban

2-Piece Rear Main Chevy 283

1968-1973 Chevy K20 Suburban

Gen 1 L14 Small Block Chevy

1975-1980 Chevy K20 Suburban

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1968-1973 Chevy K30

Gen 1 L14 Small Block Chevy

1977-1980 Chevy K30

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1975-1979 Chevy K5 Blazer

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1959-1961 Chevy Kingswood

2-Piece Rear Main Chevy 283

1969 Chevy Kingswood

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Kingswood

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400
Gen 1 L14 Small Block Chevy

1973 Chevy Laguna

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Laguna

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1964-1967 Chevy Malibu

2-Piece Rear Main Chevy 283

1973 Chevy Malibu

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Malibu

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1979-1982 Chevy Malibu

2-Piece Rear Main Chevy 267

1970-1976 Chevy Monte Carlo

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1979-1982 Chevy Monte Carlo

2-Piece Rear Main Chevy 267

1975-1976 Chevy Monza

2-Piece Rear Main Chevy 262

1957 Chevy Nomad

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1958-1961 Chevy Nomad

2-Piece Rear Main Chevy 283

1969-1973 Chevy Nova

Gen 1 L14 Small Block Chevy

1975 Chevy Nova

2-Piece Rear Main Chevy 262

1957 Chevy One-Fifty Series

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1976 Chevy P30

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1961-1962 Chevy P30 Series

2-Piece Rear Main Chevy 283

1968-1969 Chevy P30 Van

Gen 1 L14 Small Block Chevy

1973 Chevy P30 Van

Gen 1 L14 Small Block Chevy

1959-1961 Chevy Parkwood

2-Piece Rear Main Chevy 283

1957 Chevy Sedan Delivery

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1958 Chevy Sedan Delivery

2-Piece Rear Main Chevy 283

1947-1959 Chevy Suburban

2-Piece Rear Main Chevy 265

1960-1967 Chevy Suburban

2-Piece Rear Main Chevy 283

1969 Chevy Townsman

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Townsman

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400
Gen 1 L14 Small Block Chevy

1955 Chevy Truck

2-Piece Rear Main Chevy 265

1957 Chevy Truck

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1958 Chevy Truck

2-Piece Rear Main Chevy 283

1960 Chevy Truck

2-Piece Rear Main Chevy 283

1955 Chevy Two-Ten Series

2-Piece Rear Main Chevy 265

1957 Chevy Two-Ten Series

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1958 Chevy Yeoman

2-Piece Rear Main Chevy 283

1966 GMC 1000

2-Piece Rear Main Chevy 283

1960 GMC 1000 Series

2-Piece Rear Main Chevy 283

1962-1965 GMC 1000 Series

2-Piece Rear Main Chevy 283

1960-1965 GMC 1500 Series

2-Piece Rear Main Chevy 283

1966 GMC 2500

2-Piece Rear Main Chevy 283

1960-1965 GMC 2500 Series

2-Piece Rear Main Chevy 283

1960-1966 GMC 3000

2-Piece Rear Main Chevy 283

1960-1966 GMC 3500

2-Piece Rear Main Chevy 283

1967 GMC C25/C2500 Pickup

2-Piece Rear Main Chevy 283

1968-1972 GMC C25/C2500 Pickup

Gen 1 L14 Small Block Chevy

1967 GMC C25/C2500 Suburban

2-Piece Rear Main Chevy 283

1968-1972 GMC C25/C2500 Suburban

Gen 1 L14 Small Block Chevy

1967 GMC C35/C3500 Pickup

2-Piece Rear Main Chevy 283

1968-1972 GMC C35/C3500 Pickup

Gen 1 L14 Small Block Chevy

1973-1974 GMC C35/C3500 Pickup

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1975-1978 GMC K15

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1975-1978 GMC K15 Suburban

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1967-1974 GMC K15/K1500 Pickup

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1967-1974 GMC K15/K1500 Suburban

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1979-1980 GMC K1500 Suburban

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1975-1978 GMC K25

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1975-1978 GMC K25 Suburban

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1967 GMC K25/K2500 Pickup

2-Piece Rear Main Chevy 283

1968-1972 GMC K25/K2500 Pickup

Gen 1 L14 Small Block Chevy

1973-1974 GMC K25/K2500 Pickup

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1967 GMC K25/K2500 Suburban

2-Piece Rear Main Chevy 283

1968-1972 GMC K25/K2500 Suburban

Gen 1 L14 Small Block Chevy

1973-1974 GMC K25/K2500 Suburban

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1979-1986 GMC K2500 Suburban

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1967 GMC K35/K3500 Pickup

2-Piece Rear Main Chevy 283

1968-1972 GMC K35/K3500 Pickup

Gen 1 L14 Small Block Chevy

1973-1974 GMC K35/K3500 Pickup

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1966 GMC P1000

2-Piece Rear Main Chevy 283

1973-1977 GMC Sprint

Chevy Small Block V8 Gen 1 2-Piece Rear Main 400

1955-1959 GMC Suburban

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1960-1966 GMC Suburban

2-Piece Rear Main Chevy 283

1967 GMC Suburban

Gen 1 L14 Small Block Chevy

1955 GMC Truck

2-Piece Rear Main Chevy 265

1956-1960 GMC Truck

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1965-1966 Studebaker Commander

2-Piece Rear Main Chevy 283

1965-1966 Studebaker Cruiser

2-Piece Rear Main Chevy 283

1965-1966 Studebaker Daytona

2-Piece Rear Main Chevy 283

1966 Studebaker Wagonaire

2-Piece Rear Main Chevy 283
