#9704759

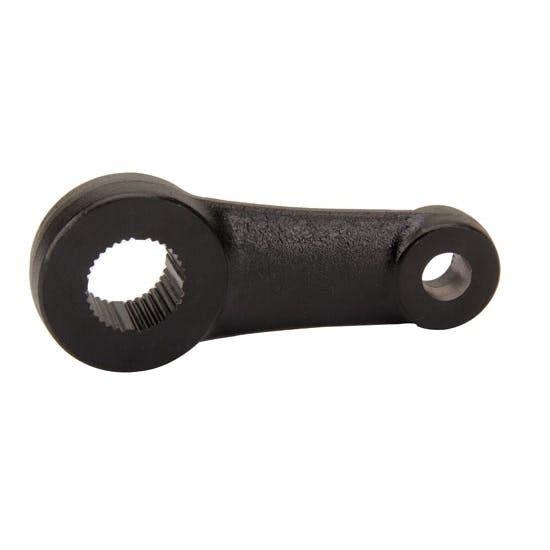

Shortened Reverse Pitman Arm for Lowered 1947-59 Chevy Truck w/PS
1 Review
|
6 Questions
- Makes use of common '69-'87 2WD Chevy truck PS box
- Pitman spline count is 32 with 4 master and taper measures 1.180" to 1.225
- Pitman Arm
See More
$85.99
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
6.00" Overall Length, 4.00" Center to Center, Steel
- Makes use of common '69-'87 2WD Chevy truck PS box
- Pitman spline count is 32 with 4 master and taper measures 1.180" to 1.225
- Pitman Arm
See more details
Key Specs
| MFG. Part # | 9704759 |
| Spline Count | 36 |
| Drop | 0.00" |
| Material Type | Steel |
| Finish | Painted |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9704759 Details
Speedway Motors 9704759 Details
These shortened pitman arms are designed for use with lowered 1947-59 Chevy Trucks that have our 910-32132 Power Steering Kit Conversion.
Note: Lowered vehicles will this 'reversed' pitman arm so that the drag link can be installed on the "top" side of the pitman arm rather than the "bottom" side to help prevent bump steer.
- Shortened reverse pitman arm
- For lowered 47-59 Chevy Pickups
- Use with 91032132 power steering kits
- Pitman spline count is 32 with 4 master and taper measures 1.180" to 1.225
- Accepts typical 7 degree "Ford" style tie rod ends
Speedway Motors 9704759 Specifications
Speedway Motors 9704759 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9704759 |
| Brand | Speedway Motors |
| Spline Count | 36 |
| Drop | 0.00" |
| Material Type | Steel |
| Finish | Painted |
| GENERAL | |
| Speedway Motors Catalog Part # | 970-4759 |
| Overall Length | 6.00" |
| Center to Center | 4.00" |
| Hole Diameter | .63" |
| Spline I.D. | 1.16" |
| Sold in Quantity | Each |
