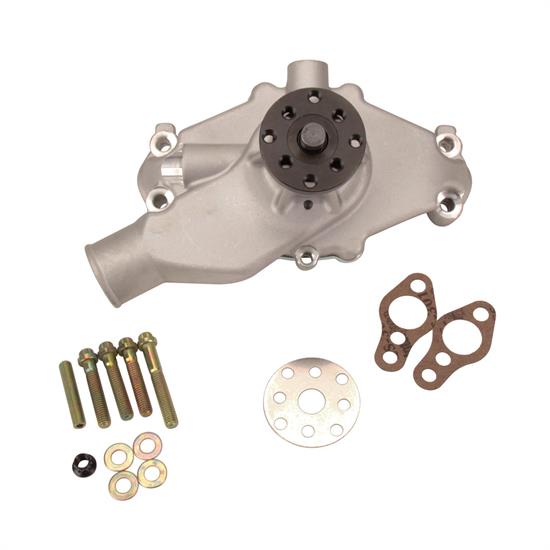

Short Water Pump for Small Block Chevy, Satin Finish, Aluminum
Short Water Pump for Small Block Chevy, Satin Finish, Aluminum
Chevy Small Block V8, Mechanical Water Pump Type, Short Water Pump Style, Satin, Natural
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Limited Qty
Phoenix, AZ -
Select Vehicle
Short Water Pump for Small Block Chevy, Satin Finish, Aluminum
X
Part # 91015577
$94.99
$129.99
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- Lightweight aluminum construction
- 5/8" shaft with 5/8" fan pilot snout
- All hardware and gaskets are included
- Precision machined impeller
- For small block Chevy V8
Details
Water Pump Type:
Mechanical
Water Pump Style:
Short
Rotation:
Clockwise/Standard
Housing Material:
Aluminum
Housing Finish:
Satin
Housing Color:
Natural
Block to Hub Distance:
5.625 Inch (5-5/8")
Heater Inlet Size:
1/2" NPT
Hose ID:
1.80"
Shaft Length:
.50"
Pilot Shaft Diameter:
0.63 Inch
Gasket(s) Included:
Yes
Hardware Included:
Yes
Weight:
6.5 lbs.
MFG. Part #:
91015577
Sold in Quantity:
Each
Notes:
Includes gaskets, mounting bolts, and shim.
Info
Each pump is manufactured from T6 aluminum and features an impeller with curved vanes for maximum flow, pressure and equal distribution to both sides of the block. It also features a unique seal assembly for leak proof operation.
- 5/8" shaft with 5/8" fan pilot snout
- 1/2" NPT hole on passenger side (for heater hose) and on top (for bypass hose)
- Stamped steel rear plate
- Extra thick fan hub
- 5/8" bearings
- Adjustable cam stop
- State of the art aluminum castings
- Equal flow to both cylinder banks
- Precision impeller
- Higher flow rate and pressure rate
- Weighs 6 lbs.
- Does not have a set screw retaining the fan hub
- Includes gaskets and hardware
NOTE: This pump is designed for street use and is not to be run on a motor which exceeds 5,500 RPM.
Learn how to choose the correct water pump for your application by reading our tech article. SBC - Short vs Long Water Pump.
