#917172

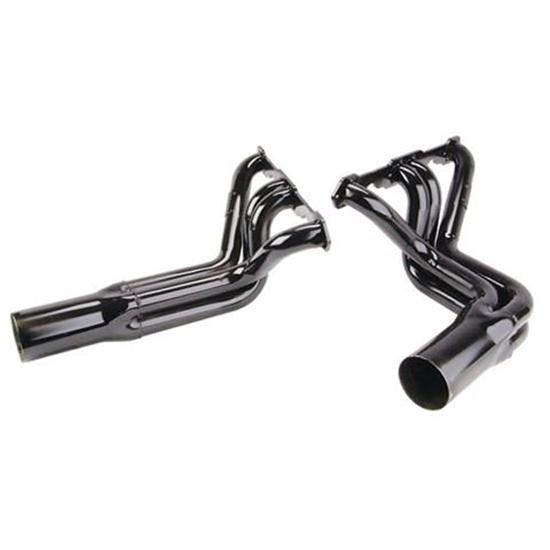

Schoenfeld 172 IMCA Modified Headers - Fits Dirtworks and D&M Chassis
- Features 1-3/4" tube with 3-1/2" collector
- Headers are non-adjustable and not a step design
- Port dimensions are 1.7" all and 1.5" wide
See More
$288.95
pair
In Stock
Order soon, only 1 left in stock!
Garage Sale alternatives: from $229.99
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Chevy Small Block V8, Chassis Header Tube Type, Painted
- Features 1-3/4" tube with 3-1/2" collector
- Headers are non-adjustable and not a step design
- Port dimensions are 1.7" all and 1.5" wide
- Made from steel and has a black painted finish
- Total collector length is 7-3/4"
See more details
Key Specs
Header Tube Type | Chassis |
Finish | Painted |
Flange Style | Standard |
Primary Tube Diameter | 1-3/4" |
Material Type | Steel |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySchoenfeld 172 Details
Schoenfeld 172 Details
Schoenfeld IMCA modified headers for DirtWorks, D&M, and other chassis. 1-3/4" tube with 3-1/2" collector. Not a step design. Non-adjustable.
Item Details
Not step design, 1-3/4" primary, 3-1/2" collectorCharts

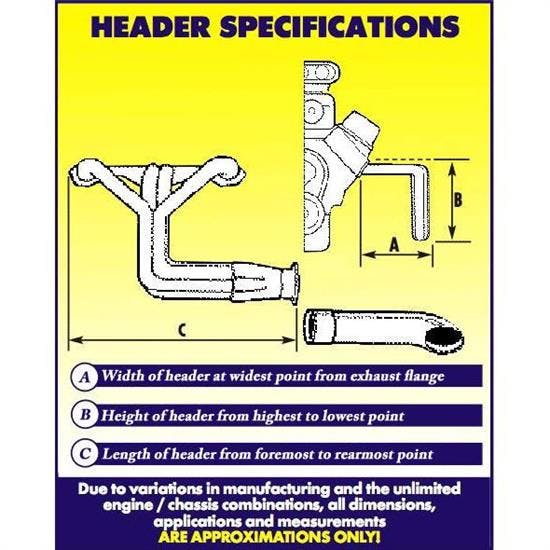

Header Dimension Chart (JPG)
Guides & Documents
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
Schoenfeld 172 Specifications
Schoenfeld 172 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 172 |
Brand | Schoenfeld |
Header Tube Type | Chassis |
Finish | Painted |
Flange Style | Standard |
Primary Tube Diameter | 1-3/4" |
Material Type | Steel |
Color | Black |
Weld-Up | No |
Exhaust Port Shape | Square |
Collector Diameter | 3-1/2 Inch |
Hardware Included | Yes |
Gasket(s) Included | Yes |
Collector Attachment Type | Slip fit |
Collector Reducers Included | No |
GENERAL | |
Collector Length | 7.75" |
Flange Thickness | .25" |
Port Height | 1.7" |
Port Width | 1.5" |
Drivers Side Dimension A | 22.75" |
Drivers Side Dimension B | 9.5" |
Drivers Side Dimension C | 18.25" |
Passenger Side Dimension A | 15" |
Passenger Side Dimension B | 8.6" |
Passenger Side Dimension C | 24.13" |
Sold in Quantity | Pair |
