Product Summary

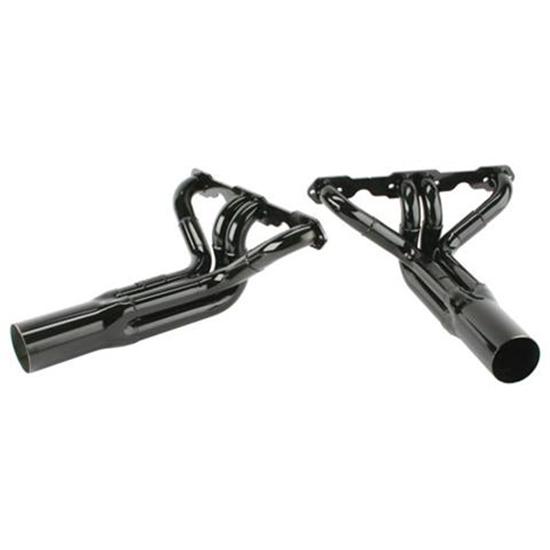

Chevy Small Block V8, Chassis Header Tube Type, Steel

  • Designed to fit most IMCA modified chassis running a Small Block Chevy Engine
  • Can be run upside down to gain clearance
  • Ideal choice for tracks requiring mufflers
  • Will work with standard port S/B Chevy heads
  • Collector diameter measures 3-1/2" and they are 8" in length

Key Specs

Header Tube TypeChassis
Exhaust Port ShapeSquare
Flange StyleStandard
Primary Tube Diameter1-3/4"
Material TypeSteel

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Schoenfeld 162 Details

These S/B Chevy IMCA headers fit most IMCA modified chassis. Can be run upside down to gain clearance. Good choice for tracks requiring mufflers. For standard port S/B Chevy heads. Gaskets and bolts included.

1-3/4" Primary, 3-1/2" Collector



Charts

Guides & Documents

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Schoenfeld 162 Specifications

KEY SPECS
MFG. Part #162
BrandSchoenfeld
Header Tube TypeChassis
Exhaust Port ShapeSquare
Flange StyleStandard
Primary Tube Diameter1-3/4"
Material TypeSteel
ColorBlack
Weld-UpNo
Collector Diameter3-1/2 Inch
FinishPainted
Collector Attachment TypeSlip fit
Hardware IncludedYes
Gasket(s) IncludedYes
Collector Reducers IncludedNo
GENERAL
Collector Length8"
Flange Thickness.25"
Port Height1.67"
Port Width1.53"

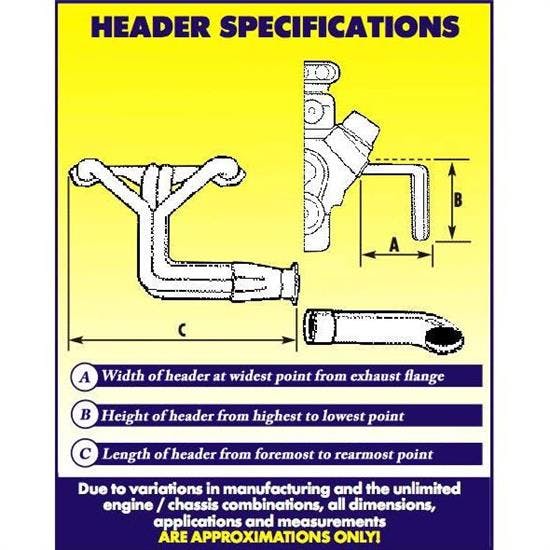

Header Dimension A19.75"
Header Dimension B8.63"
Header Dimension C18.25"
Sold in QuantityPair
