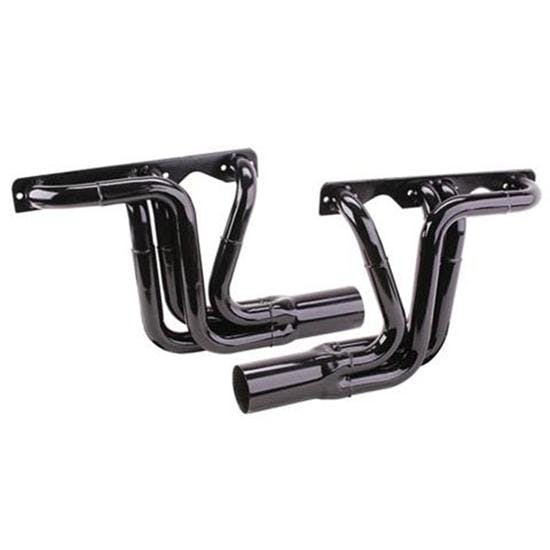

Schoenfeld 152V High Velocity Chassis Headers, 1-3/4 - 1-7/8, 3-1/2
Schoenfeld 152V High Velocity Chassis Headers, 1-3/4 - 1-7/8, 3-1/2

Schoenfeld 152V High Velocity Chassis Headers, 1-3/4 - 1-7/8, 3-1/2

Chevy Small Block V8, Chassis Header Tube Type, Temporary Paint, Standard Flange Style, Steel

1 Review | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Schoenfeld 152V High Velocity Chassis Headers, 1-3/4 - 1-7/8, 3-1/2
Schoenfeld 152V High Velocity Chassis Headers, 1-3/4 - 1-7/8, 3-1/2
Schoenfeld 152V High Velocity Chassis Headers, 1-3/4 - 1-7/8, 3-1/2
Schoenfeld 152V High Velocity Chassis Headers, 1-3/4 - 1-7/8, 3-1/2
X
Schoenfeld 152V High Velocity Chassis Headers, 1-3/4 - 1-7/8, 3-1/2
Schoenfeld 152V High Velocity Chassis Headers, 1-3/4 - 1-7/8, 3-1/2
Zoomed In Image
Part # 917152V
$259.95
pair
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Header Tube Type:
Chassis
Finish:
Temporary Paint
Flange Style:
Standard
Primary Tube Diameter:
1-3/4 to 1-7/8"
Material Type:
Steel
Color:
Black
Weld-Up:
No
Exhaust Port Shape:
Rectangle
MFG. Part #:
152V
Collector Diameter:
3-1/2 Inch
Collector Length:
8.5"
Flange Thickness:
.25"
Port Height:
1.66"
Port Width:
1.51"
Drivers Side Dimension A:
5.38"
Drivers Side Dimension B:
15.10"
Drivers Side Dimension C:
26.25"
Passenger Side Dimension A:
14.80"
Passenger Side Dimension B:
6.10"
Passenger Side Dimension C:
26.13"
Hardware Included:
Yes
Gasket(s) Included:
Yes
Sold in Quantity:
Pair

Info

Races are won by the guy who gets off the corner best. Torque is what gets that car moving and the right header is one key ingredient. These high velocity header are designed to boost Small Block Chevy torque.

These high velocity chassis headers require a minimum 3-5" engine set back. Fits angle plug or straight plug heads.

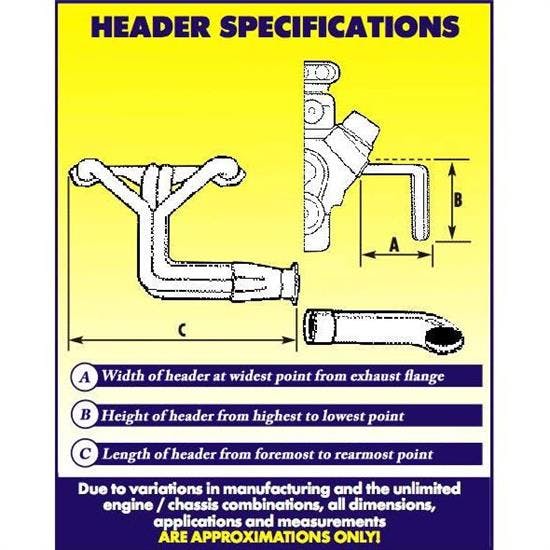

Header Dimension Chart

Item Details

1-3/4" - 1-7/8", 3-1/2" collector

Notes

The paint on Schoenfeld headers protects them after the manufacturing process and during shipping - it is not designed as a final finish. It is recommended that this protective paint be stripped and a high heat coating/paint designed for use on headers.
