$329.95

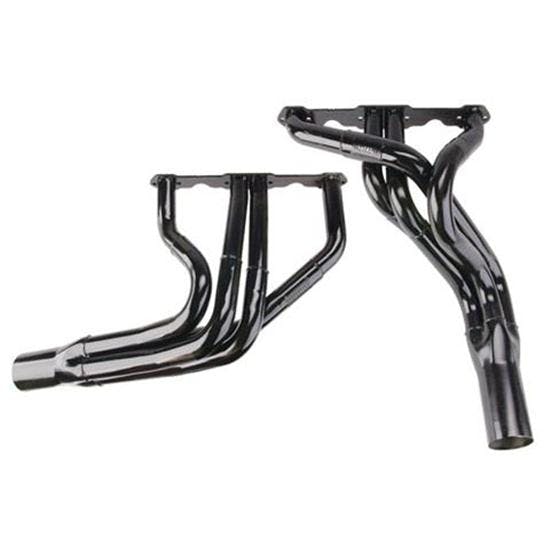

Schoenfeld 141-525LVCM-3 Late Mod Chevy Crate Headers, Rocket
Schoenfeld 141-525LVCM-3 Late Mod Chevy Crate Headers, Rocket

Schoenfeld 141-525LVCM-3 Late Mod Chevy Crate Headers, Rocket

Chevy Small Block V8, Chassis Header Tube Type, Temporary Paint, Crate Flange Flange Style

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Schoenfeld 141-525LVCM-3 Late Mod Chevy Crate Headers, Rocket
Schoenfeld 141-525LVCM-3 Late Mod Chevy Crate Headers, Rocket
Schoenfeld 141-525LVCM-3 Late Mod Chevy Crate Headers, Rocket
Schoenfeld 141-525LVCM-3 Late Mod Chevy Crate Headers, Rocket
X
Schoenfeld 141-525LVCM-3 Late Mod Chevy Crate Headers, Rocket
Schoenfeld 141-525LVCM-3 Late Mod Chevy Crate Headers, Rocket
Zoomed In Image
Part # 917525
$329.95
pair
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • Designed specifically for the Vortec/Fastburn S/B Chevy crate motors
  • Tube diameter measures form 1-5/8" - 1-3/4"
  • Collectors have a 3" diameter and are approximately 8" long
  • Heavy-duty flange has D-style ports
  • Features an all steel construction and are powder coated black for added corrosion protection

Details

Header Tube Type:
Chassis
Finish:
Temporary Paint
Flange Style:
Crate Flange
Primary Tube Diameter:
1-5/8 to 1-3/4"
Material Type:
Steel
Color:
Black
Weld-Up:
No
Exhaust Port Shape:
D-port
MFG. Part #:
141-525LVCM-3
Collector Diameter:
3 Inch
Collector Length:
7.25"
Drivers Side Dimension A:
20.80"
Drivers Side Dimension B:
12.00"
Drivers Side Dimension C:
20.75"
Passenger Side Dimension A:
16.50"
Passenger Side Dimension B:
9.50"
Passenger Side Dimension C:
30.50"
Hardware Included:
Yes
Gasket(s) Included:
Yes
Sold in Quantity:
Pair

Info

These late model crate motor headers are for the Vortec/Fastburn S/B Chevy crate motors that are popular in most areas. Feature 1-5/8" - 1-3/4" tube diameter and 3" x 8" collectors.  We list the Schoenfeld part number for easy reference.

917-525: Fits Rocket Chassis.

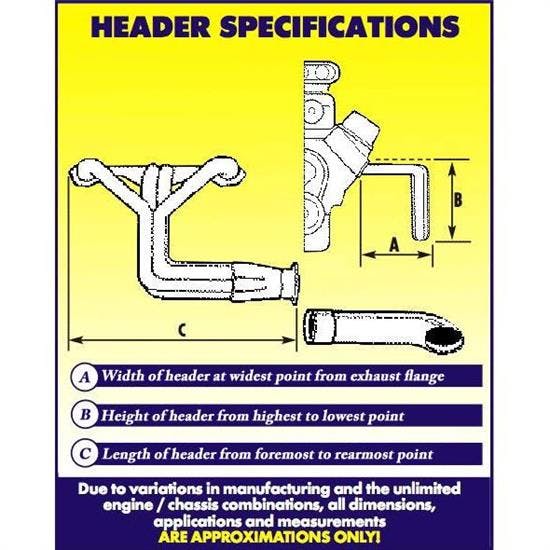

Header Dimension Chart

Item Details

Schoenfeld Part #141-525LVCM-3

Notes

The paint on Schoenfeld headers protects them after the manufacturing process and during shipping - it is not designed as a final finish. It is recommended that this protective paint be stripped and a high heat coating/paint designed for use on headers.
