Product Summary

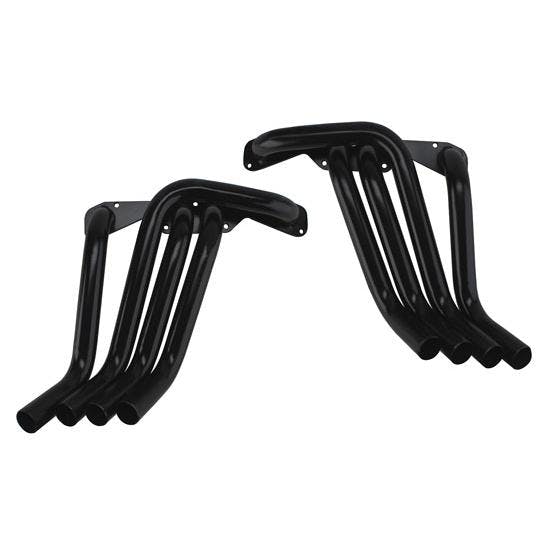

Chevy Small Block V8, Zoomie Header Tube Type, Steel

    Key Specs

    Header Tube TypeZoomie
    Flange StyleSpread Port
    Primary Tube Diameter1-3/4"
    Material TypeSteel
    ColorBlack

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Schoenfeld 130SP Details

    For late models, IMCA modifieds. Also fits Camaro and Chevelle. Extra-thick flanges, 1-3/4" tubes.

    Can only be used with Brodix heads, not for use with "normal" small block Chevy.

    Bolts and gaskets included.  Can only be used with Brodix Heads, not for use with normal S/B chevy.

    Specs


    Guides & Documents

    CARB Warning

    For race/ off road use only

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    Schoenfeld 130SP Specifications

    KEY SPECS
    MFG. Part #130SP
    BrandSchoenfeld
    Header Tube TypeZoomie
    Flange StyleSpread Port
    Primary Tube Diameter1-3/4"
    Material TypeSteel
    ColorBlack
    Weld-UpNo
    Collector DiameterNot Applicable
    FinishPainted
    Hardware IncludedYes
    Gasket(s) IncludedYes
    GENERAL
    Flange Thickness.25"
    Port Height1.74"
    Port Width1.71"
    Drivers Side Dimension A6"
    Drivers Side Dimension B15.35"
    Drivers Side Dimension C20"
    Passenger Side Dimension A6.1"
    Passenger Side Dimension B15"
    Passenger Side Dimension C21"
    Sold in QuantityPair
