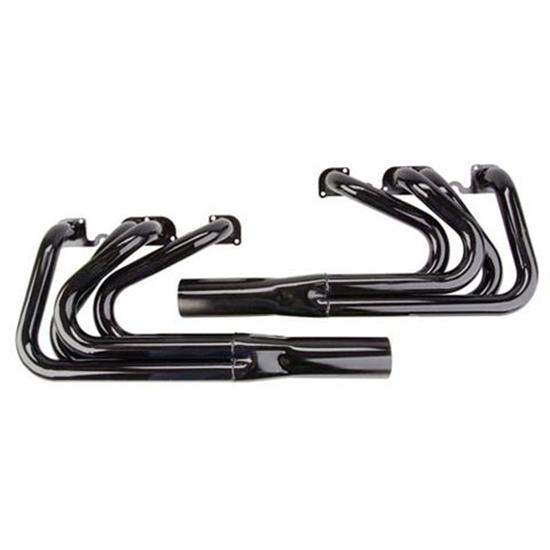

Schoenfeld 1025LVDN Sprint Car Headers, 1-7/8 - 2, 3-1/2, Spread Port
Schoenfeld 1025LVDN Sprint Car Headers, 1-7/8 - 2, 3-1/2, Spread Port
Chevy Small Block V8, Full-length Header Tube Type, Temporary Paint, Spread Port Flange Style
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Schoenfeld 1025LVDN Sprint Car Headers, 1-7/8 - 2, 3-1/2, Spread Port
X
Part # 9171025LVDN
$299.95
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- Headers feature laser cut flanges to clear down nozzles
- Welded to clear 4" from head to inside tube
- Collectors are 3-1/2" in diameter and are 12-3/4" long
- Made from 18-gauge steel and have a black painted finish
- Engineered to bolt directly to your head and comes with bolts and gaskets
Details
Header Tube Type:
Full-length
Finish:
Temporary Paint
Flange Style:
Spread Port
Primary Tube Diameter:
1-7/8 to 2"
Material Type:
Steel
Color:
Black
Weld-Up:
No
MFG. Part #:
1025LVDN
Collector Diameter:
3-1/2 Inch
Collector Length:
12.75"
Flange Thickness:
.25"
Port Height:
1.67"
Port Width:
1.82"
Drivers Side Dimension A:
10.70"
Drivers Side Dimension B:
13.40"
Drivers Side Dimension C:
31.25"
Passenger Side Dimension A:
10.20"
Passenger Side Dimension B:
13.30"
Passenger Side Dimension C:
30.75"
Hardware Included:
Yes
Gasket(s) Included:
Yes
Sold in Quantity:
Pair
Info
Swept forward for muffler clearance. Fits Chevy, Brodix Spread Port and now all Pro Spread Port pattern heads. Laser cut flanges to clear down nozzles. Headers welded to clear 4" from head to inside tube. Approximately 32" 18 ga. primary tubes and 3-1/2" x 14" collectors, may be shortened. Bolts directly to your head and comes with bolts and gaskets.
Notes
The paint on Schoenfeld headers protects them after the manufacturing process and during shipping - it is not designed as a final finish. It is recommended that this protective paint be stripped and a high heat coating/paint designed for use on headers.Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
