Scat 2-302-5400-2100-927 Ford 302 4340 5.4 In H-Beam Rod Chevy Bearing
Scat 2-302-5400-2100-927 Ford 302 4340 5.4 In H-Beam Rod Chevy Bearing
Scat

|

#91015337

Scat 2-302-5400-2100-927 Ford 302 4340 5.4 In H-Beam Rod Chevy Bearing

Out of Stock


This item is currently not available

Shop all Scat H-Beam Connecting Rods

Product Summary

H-Beam Connecting Rod Type, Floating Wrist Pin Style

    See more details

    Key Specs

    MFG. Part #2-302-5400-2100-927
    Connecting Rod TypeH-Beam
    Connecting Rod MaterialForged 4340 Steel
    Connecting Rod Length5.400"
    Wrist Pin StyleFloating
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Scat 2-302-5400-2100-927 Details

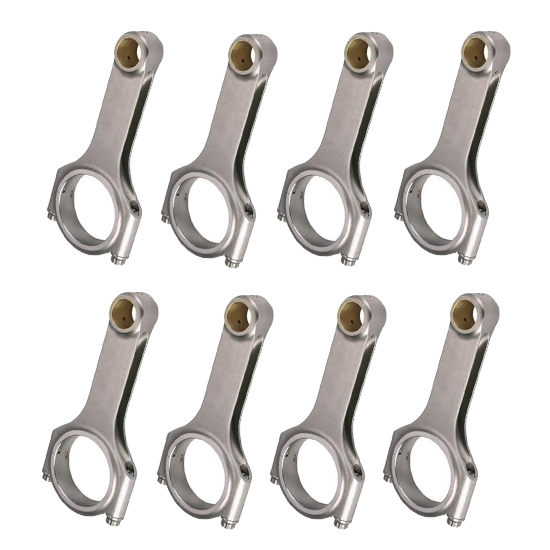

    High strength 4340 H-beam rod for use in 347 cubic inch stroker motors. Features bronze bushings and high strenth ARP 8740 cap screws.

    • 2.10" crankpin
    • .927" wristpin
    • .830" big end width

    Set of 8 rods.

    Item Details

    Chevy bearing, .927" wristpin

    CARB Warning

    For race/ off road use or for use on pre-1966 vehicles.

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
    CA Prop 65
    CARB warning

    Scat 2-302-5400-2100-927 Specifications

    KEY SPECS
    MFG. Part #2-302-5400-2100-927
    BrandScat
    Connecting Rod TypeH-Beam
    Connecting Rod MaterialForged 4340 Steel
    Connecting Rod Length5.400"
    Wrist Pin StyleFloating
    GENERAL
    Wrist Pin Diameter0.927"
    Rod Journal Diameter2.100"
    Connecting Rod Bolt Diameter7/16"
    Sold in QuantitySet
    Rod Crank End Width0.830"
    GTIN Code846091010081
    Connecting Rod FinishShot-peened and tumbled
    Clearanced for StrokerYes
    Cap Retention StyleCap Screw
    Connecting Rod Bolt BrandARP
    Connecting Rod Bolt Material8740 Chromoly Steel
    Fastener Yield Strength180,000 psi
    Connecting Rod Bolt Head Style12-Point
    Big End Bore Diameter2.225"
    Weight Matched SetYes
    New or RemanufacturedNew
