SBC Remote Oil Filter Relocation Kit, Horizontal Inlet/Outlet
Chevy Small Block V8, Chevy Big Block V8, 13/16"-16 Thread Pitch
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.

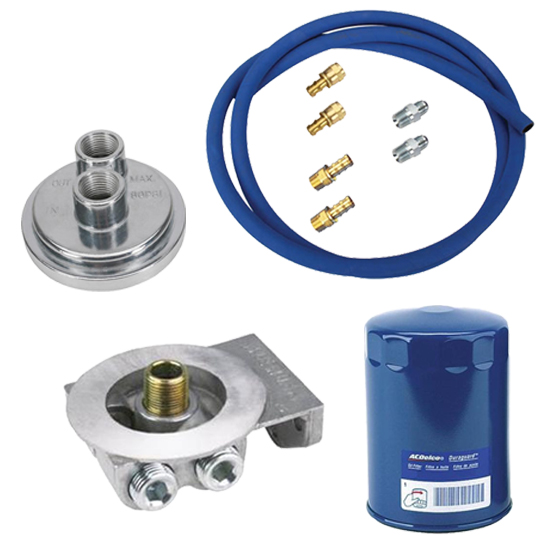

Whether youre in need of an oil system that works with a tight engine compartment or you simply wish to upgrade your block mount oil filter housing, we have you covered with these remote bypass adapter kits from Speedway Motors.
- (1) Trans-Dapt 1022 1968-Up Chevy Spin-On Oil Filter Bypass
- (1) Neoprene Hose and Fitting Kit
- (1) Single Remote Oil Filter Bracket, Horizontal Outlet
- (1) AC Delco PF1218 Duraguard Chevy Engine Oil Filter
Spin-On Bypass Adapter
Remote bypass adapters replace the bolt-on oil filter housing or the spin-on oil filter. Adapters feature 1/2" NPT female inlet/outlet threads.
- Fits 13/16"-16 threads.
- Designed to fit Small and Big Block Chevy V8''s
- 3-1/8" O-ring included
- Aluminum construction
- 1/2" NPT Female port size
Neoprene Hose and Fitting Kit
Kit includes enough -8 AN push-on neoprene/rubber hose (1/2" I.D.) to run two 48" lines from your oil filter block adapter to your remote oil filter bracket. Also includes two 1/2" NPT hose ends, two -8 AN hose ends and two 1/2" NPT to -8 AN steel fittings.
- One 8 ft. hose length
- Two 1/2" NPT hose ends
- Two -8 AN hose ends
- Two 1/2" NPT to -8 AN fittings
Single Remote Oil Filter Bracket
Aluminum remote oil filter bracket with vertical hose inlet/outlet. Has 1/2" NPT female hose inlet/outlet threads. This oil filter relocator is used with Chevy filters with 13/16"-16 thread (AC Delco PF35, PF932 or Fram HP4 filters).
- Horizontal hose inlet/outlet
- 1/2" NPT female hose inlet/outlet threads
- Spin-on type element
- Accepts Chevy filters with 13/16"-16 thread
Engine Oil Filter
Protect your Chevy V8 engine with this premium quality oil filter. Outstanding filter capacity, enhanced efficiency, consistent flow management and high-durability design help provide exceptional filtering performance.
- 98% single-pass efficiency at 25-30 microns
- Patented cellulose media traps particles 1/3 the width of a human hair
- Designed with 5x greater burst strength than most engine oil operating pressures
What's In The Kit
Trans-Dapt 1022 1968-Up Chevy Spin-On BypassPart # 7201022Qty x 1
Neoprene Hose and Fitting Kit for Remote Oil Filter, 48 InchPart # 7201048Qty x 1
Single Remote Oil Filter Bracket, Chevy FilterPart # 7201056Qty x 1
AC Delco PF1218 Duraguard Engine Oil Filter, ChevyPart # 91015175Qty x 1
