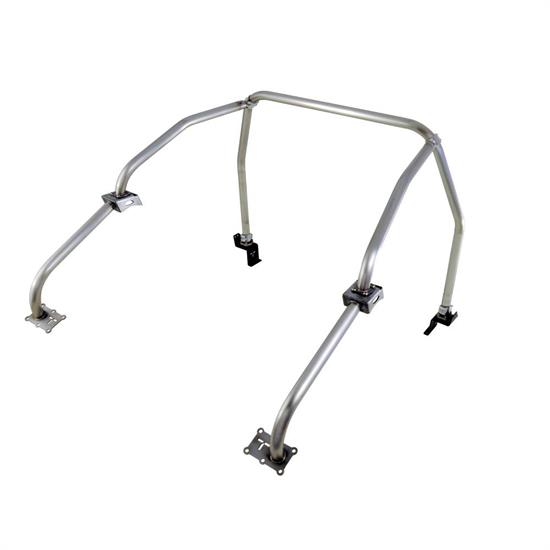

RideTech 41240000 68-72 GM A-Body Basic Tiger Cage
68-72 Buick, 68-72 Chevy, 68-72 Oldsmobile, 68-72 Pontiac, 1.75" Tube O.D., Stainless Steel
As with any "rollcage," the main function and ultimate purpose of the TigerCage is to protect the occupants in case of a crash. However, its usefulness is more often expressed in stiffening and strengthening the car's chassis.
The TigerCage is specifically designed to interface with the structural strength points of the OEM unibody (or frame) to tie them together & increase torsional rigidity within the chassis.
The main hoop of the TigerCage connects to the area behind the front seats where the rocker boxes intersect the floorboard.
The 'back bars' run from the top corners of the main hoop to the rear package tray, which is an important structural reinforcement in most cars, and is secured in both the horizontal plane and the vertical plane to optimize rigidity. The mating trunk bars join with the back bars underneath the package tray and are fastened with reinforced brackets to the rear framerail to complete the base structure.

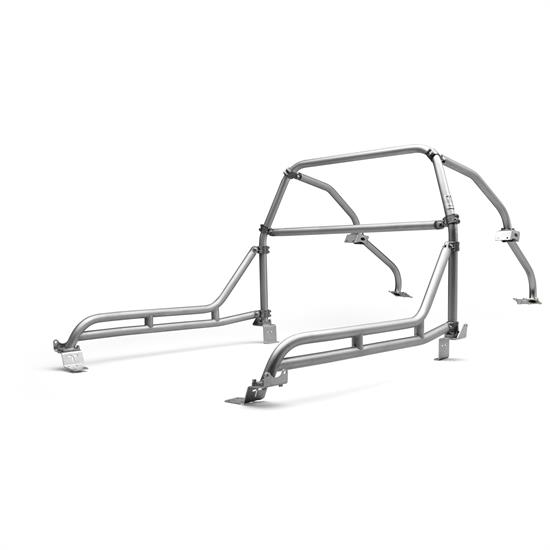

The optional door bars connect the main hoop to the toeboard/ floorboard/ rockerbox/'A' pillar area at the base of the 'A' pillar. The complete TigerCage structure lends a huge amount of structural rigidity to a unibody or a full frame vehicle.
Not only does this increased rigidity allow extra crash protection, it will allow the vehicles suspension to react more predictably to driver input.
Although every effort is made to optimize the crash protection benefits, please be aware that any crash protection that a TigerCage (or any other rollcage) may offer is strictly coincidental. It is impossible to guarantee any specific level of protection in a crash situation.
The Tigercage is specifically designed for each application, which is easy to install. It's patented clamp collar components tie the structural strength points of the car together to increase chassis rigidity. It can also be installed in a finished car in about 6 hours with common hand tools.
This product is built to order.
- This item ships directly from the manufacturer. It may take an additional 15 business days for RideTech to ship this item.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
