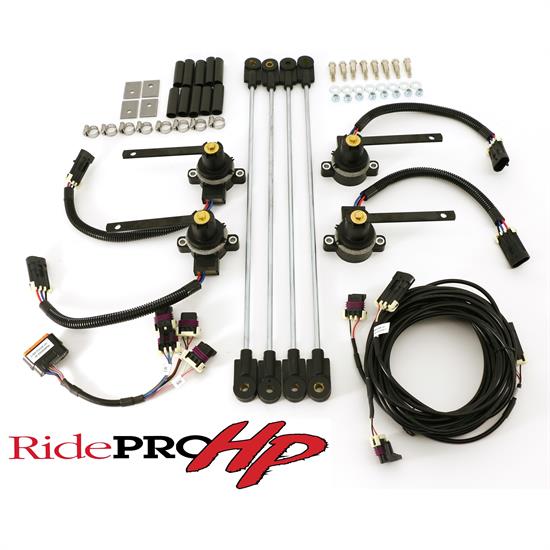

RidePro-HP Ride Height Sensors upgrade your existing RidePro-X pressure-based system. The ultimate air suspension management system measures BOTH pressure and ride height. With the addition of RidePro-HP, ride height and spring balance (loads) are established by comparing the position of the ride height sensor to the air pressure within each air spring. Your car is leveled with no cross loading. This is especially important for dynamic driving scenarios where quick transitions occur. Examples include high performance driving, sudden directional changes and panic stops. Pressure-only systems are good at handling these load changes, but combined pressure and height systems work best. The complete RidePro-Hp kit is easy to install. The complete RidePro-Hp kit includes: 4 ride height sensors with stainless steel arms, 4 ride height sensor linkage kits (with bendable linkage rods and rubber rod ends), group harness, 1/4? sensor bolts w/ Nyloc nuts and flat washers, mounting tabs, Heat shrink tubes and Installation Guide.

NOTE: RidePro-Hp sensors can only be used in conjunction with RidePro-X Digital Control System.

Features:

Works with RidePRO-X pressure measurement for ultimate Pressure and Height accuracy.

Heavy-duty Ride Height Sensors with stainless steel arms.

Sensor Arms feature six linkage rod holes to fine-tune motion ratio – No need for drilling.

Ride Height Sensors rotate through full 360 degrees to eliminate over-travel damage.

Bendable Linkage Rods with Rubberized Rod Ends. Maximum articulation and service life.

Weatherproof connectors and wiring harnesses.

Can be added onto existing pressure-only system installations

Charts

Installation Instructions (PDF)

Guides & Documents

Air Suspension Sensors and Relays Installation Instructions (76830400035)

CA Prop 65

Ridetech 30400035 Specifications

KEY SPECS
MFG. Part #	30400035
Brand	Ridetech

GENERAL
GTIN Code	840123509871
