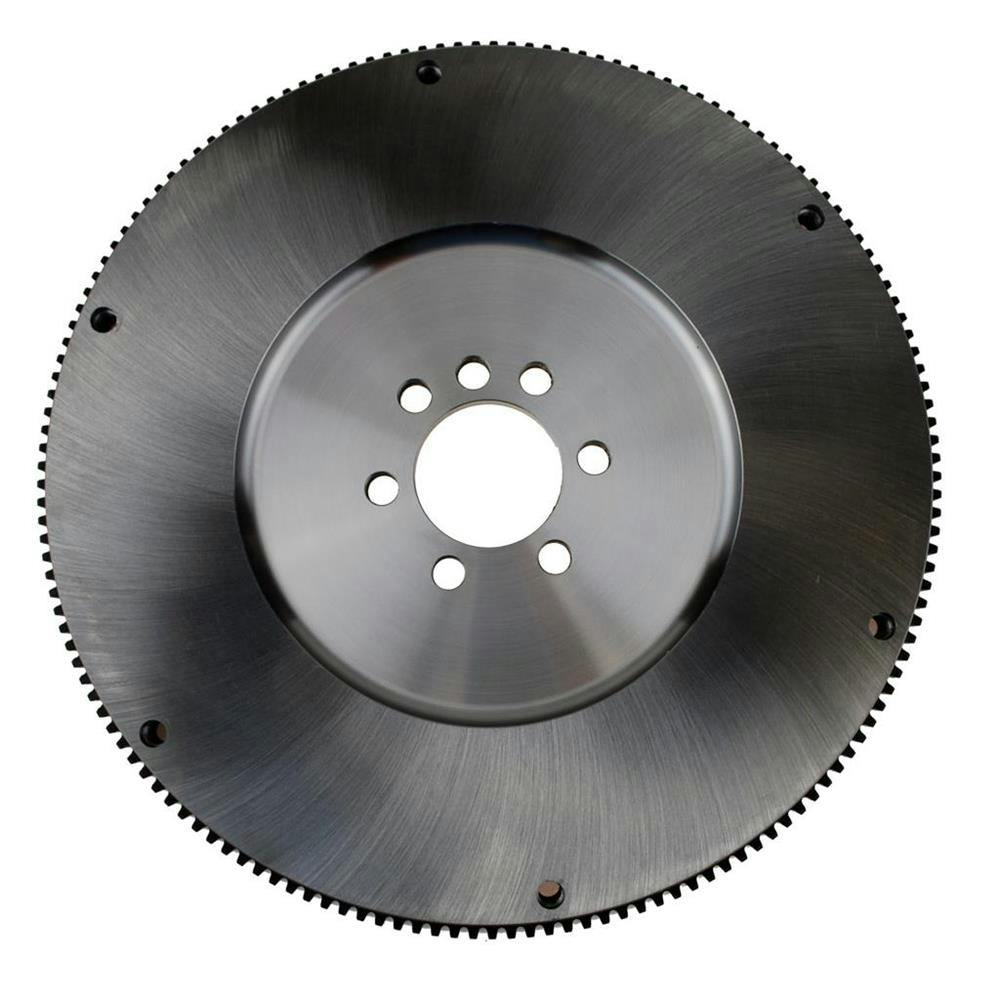

Ram Clutches 1514 Chevrolet 86-Up '0' Balance 153 Tooth Flywheel

#6051514

Ram Clutches 1514 Chevrolet 86-Up '0' Balance 153 Tooth Flywheel

Name: Ram Clutches 1514 Chevrolet 86-Up '0' Balance 153 Tooth Flywheel
Brand: Ram Clutches
SKU: 6051514
Price: 269 USD
Availability: InStock

Write a Review

Ask a Question

$269.00

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

12.75" Outside Diameter, 153 Tooth Count, Steel

See more details

Key Specs

MFG. Part #	1514
Tooth Count	153
SFI Rating	1.1
Material Type	Steel
Engine Balance	Internal

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Ram Clutches 1514 Details

The flywheel is the foundation of the clutch system, and because it is an energy storage device, also determines the amount of power available to launch the car. A heavy flywheel stores more energy as it spins than a light flywheel. If your engine and gearing combination requires more power or inertia to make the car launch without bogging the motor, you will want a heavier flywheel. Keep in mind, though, that a heavier flywheel will be slower to accelerate through the gears. A lighter flywheel creates less inertia at launch, but will accelerate quicker through the gears. In order to effectively use a lighter flywheel, you must consider the car weight, operating RPM of the engine, and most importantly, the gearing. Too little gear will cause the engine to nose over or ‘bog’ on launch.

RAM billet steel flywheels are recommended as a replacement for factory cast flywheels in high performance and racing vehicles. Cast flywheels are not explosion proof and can be dangerous when used in high performance applications at higher RPMs. RAM billet steel flywheels are CNC machined from certified materials and exceed SFI specifications. After machining, the flywheels are blanchard ground parallel to the crankshaft mounting surface ensuring minimum runout and the optimum mating surface for the clutch disc. Use steel flywheels in heavier drag race cars or for the best driveability in street driven vehicles.

Fits GM 10.5" pattern
15 pounds
Internal balance
153 tooth ring gear
Meets SFI 1.1 specifications
Made in the USA
Requires bolt set 530

Clutches, Flywheels and release bearings are STRICTLY FACTORY WARRANTY ONLY. Customer must return the unit to RAM for evaluation and inspection.

For a full list of warranty information please see our warranty information here

Application

Chevrolet 86-Up '0' Balance 153 Tooth

Warranty Information

Click for details

Speedway Motors cannot facilitate the return of defective Ram Automotive Co. products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Ram Automotive Co. at 1-803-788

CA Prop 65

Ram Clutches 1514 Specifications

KEY SPECS
MFG. Part #	1514
Brand	Ram Clutches
Tooth Count	153
SFI Rating	1.1
Material Type	Steel
Engine Balance	Internal

GENERAL
Outside Diameter	12.75"
Weight	18 lbs.
Sold in Quantity	Each
GTIN Code	809009243759
Rear Main Seal Style	1-piece
Flywheel Material	Billet steel
Replaceable Friction Surface	No
Pressure Plate Style	Borg & Beck/Diaphragm

Ratings & Reviews

Be the first to write a review.

Fitment

1991-1993 Buick Roadmaster

Gen 1 L03 Small Block Chevy

1994 Buick Roadmaster

Gen 1 L05 Small Block Chevy

1995-1996 Buick Roadmaster

Gen 2 LT1 Small Block Chevy

1991-1992 Cadillac Brougham

1-Piece Rear Main 305 LB9

1990-1992 Cadillac Fleetwood

Gen 1 L05 Small Block Chevy

1993-1996 Cadillac Fleetwood

Gen 2 LT1 Small Block Chevy

1987 Chevy Blazer

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988-1994 Chevy Blazer

Gen 1 L05 Small Block Chevy

1986 Chevy C10

1-Piece Rear Main 305 LG4
Gen 1 L05 Small Block Chevy

1986 Chevy C10 Suburban

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988 Chevy C15

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988-1996 Chevy C1500

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1997-1999 Chevy C1500

Gen 1 L05 Small Block Chevy

1992-1999 Chevy C1500 Suburban

Gen 1 L05 Small Block Chevy

1986-1987 Chevy C20

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1986 Chevy C20 Suburban

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988-1996 Chevy C2500

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1997-1999 Chevy C2500

Gen 1 L05 Small Block Chevy

1992-1999 Chevy C2500 Suburban

Gen 1 L05 Small Block Chevy

1986 Chevy C30

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988-1999 Chevy C35

Gen 1 L05 Small Block Chevy

1988-1999 Chevy C3500

Gen 1 L05 Small Block Chevy

1986 Chevy Camaro

1-Piece Rear Main 305 LB9

1987-1991 Chevy Camaro

1-Piece Rear Main 305 LB9
Gen 1 L98 Small Block Chevy

1992 Chevy Camaro

1-Piece Rear Main 305 LB9
Gen 1 L98 Small Block Chevy
Gen 2 LT1 Small Block Chevy

1993-1999 Chevy Camaro

Gen 2 LT1 Small Block Chevy

1986-1993 Chevy Caprice

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1994-1996 Chevy Caprice

Gen 2 LT1 Small Block Chevy

1986-1991 Chevy Corvette

Gen 1 L98 Small Block Chevy

1992-1996 Chevy Corvette

Gen 2 LT1 Small Block Chevy

1986-1987 Chevy El Camino

Gen 1 L03 Small Block Chevy

1996-1999 Chevy Express 1500

Gen 1 L05 Small Block Chevy

1996 Chevy Express 2500

Gen 1 L05 Small Block Chevy

1997 Chevy Express 2500

Gen 2 LT1 Small Block Chevy

1998-1999 Chevy Express 2500

Gen 1 L05 Small Block Chevy

1996-1999 Chevy Express 3500

Gen 1 L05 Small Block Chevy

1986-1993 Chevy G10

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1994-1995 Chevy G10

Gen 1 L03 Small Block Chevy

1986-1995 Chevy G20

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1986-1996 Chevy G30

Gen 1 L05 Small Block Chevy

1994-1996 Chevy Impala

Gen 2 LT1 Small Block Chevy

1986 Chevy K10

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1986 Chevy K10 Suburban

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988-1995 Chevy K1500

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1996-1999 Chevy K1500

Gen 1 L05 Small Block Chevy

1992-1999 Chevy K1500 Suburban

Gen 1 L05 Small Block Chevy

1986 Chevy K20

Gen 1 L05 Small Block Chevy

1986 Chevy K20 Suburban

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988-1995 Chevy K2500

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1996-1999 Chevy K2500

Gen 1 L05 Small Block Chevy

1992-1999 Chevy K2500 Suburban

Gen 1 L05 Small Block Chevy

1986 Chevy K30

Gen 1 L05 Small Block Chevy

1988-1999 Chevy K3500

Gen 1 L05 Small Block Chevy

1986 Chevy K5 Blazer

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1986-1988 Chevy Monte Carlo

Gen 1 L03 Small Block Chevy

1986-1999 Chevy P30

Gen 1 L05 Small Block Chevy

1987 Chevy R10

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1987 Chevy R10 Suburban

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988 Chevy R10 Suburban

Gen 1 L05 Small Block Chevy

1989-1991 Chevy R1500 Suburban

Gen 1 L05 Small Block Chevy

1987 Chevy R20

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988 Chevy R20

Gen 1 L05 Small Block Chevy

1987-1988 Chevy R20 Suburban

Gen 1 L05 Small Block Chevy

1995-1999 Chevy R25

Gen 1 L05 Small Block Chevy

1989 Chevy R2500

Gen 1 L05 Small Block Chevy

1989-1991 Chevy R2500 Suburban

Gen 1 L05 Small Block Chevy

1987-1988 Chevy R30

Gen 1 L05 Small Block Chevy

1989-1991 Chevy R3500

Gen 1 L05 Small Block Chevy

1995-1999 Chevy Silverado

Gen 1 L05 Small Block Chevy

1987-1994 Chevy Suburban

Gen 1 L05 Small Block Chevy

1995-1999 Chevy Suburban 1500

Gen 1 L05 Small Block Chevy

1995-1999 Chevy Tahoe

Gen 1 L05 Small Block Chevy

1987 Chevy V10

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1987-1988 Chevy V10 Suburban

Gen 1 L05 Small Block Chevy

1989-1991 Chevy V1500 Suburban

Gen 1 L05 Small Block Chevy

1987 Chevy V20

Gen 1 L05 Small Block Chevy

1987-1988 Chevy V20 Suburban

Gen 1 L05 Small Block Chevy

1989-1991 Chevy V2500 Suburban

Gen 1 L05 Small Block Chevy

1987-1988 Chevy V30

Gen 1 L05 Small Block Chevy

1989-1991 Chevy V3500

Gen 1 L05 Small Block Chevy

1987-1995 GMC G1500

Gen 1 L05 Small Block Chevy

1987-1995 GMC G2500

Gen 1 L05 Small Block Chevy

1987-1994 GMC G3500

Gen 1 L05 Small Block Chevy

1995-1996 GMC G3500

Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1986 GMC Jimmy

Gen 1 L05 Small Block Chevy

1987 GMC Jimmy

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1988-1990 GMC Jimmy

Gen 1 L05 Small Block Chevy

1981-1986 GMC K1500 Suburban

Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1986 GMC K2500

Gen 1 L05 Small Block Chevy

1992-1993 GMC K2500 Suburban

Gen 1 L05 Small Block Chevy

1988-1991 GMC R1500 Suburban

Gen 1 L98 Small Block Chevy

1987-1991 GMC V1500 Suburban

Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1987 GMC V2500

Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1987-1991 GMC V2500 Suburban

Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy
