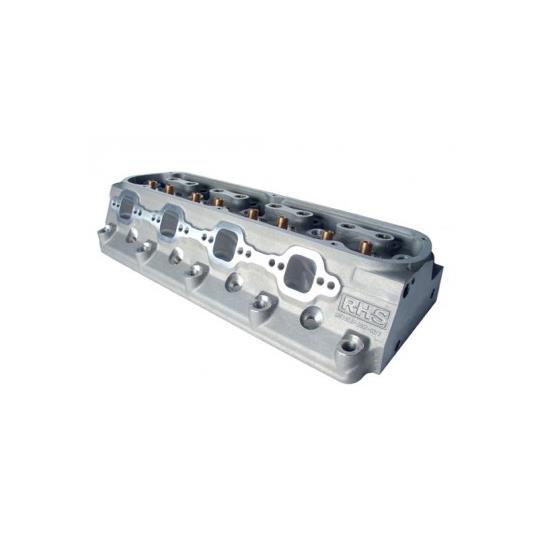

RHS 35025 Pro Elite SBF 20 Deg. CNC-Ported Bare Aluminum Cylinder Head
Bare Cylinder Head Style, Aluminum, Natural, 60cc - 69cc Combustion Chamber Volume Range
- This item ships directly from the manufacturer. It may take an additional 3 business days for Racing Head Service to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
221cc Intake Runners & 62cc Chambers
2.080" +.100" Long Intake Valves & 1.625" +.100" Long Exhaust Valves
Single Aluminum Head
Angled Spark Plugs
Pro Elite Small Block Ford 289-351c.i. Aluminum Heads
Designed with Small Block Ford racing enthusiast in mind, these heads give you all of the benefits of professional CNC porting straight from the factory! However, the CNC porting is done off of a known port, providing more airflow consistency than hand-ported runners. In addition to the CNC-ported intake and exhaust runners, the combustion chambers are also CNC-ported to moderate valve shrouding and maximize airflow efficiency. Prior to porting, the heads are given a multi-angle valve job for up to 5% more airflow right from the start!
Designed for Small Block Ford 289, 302 & 351W drag & circle track racing applications
CNC-ported 62cc combustion chamber moderates valve shrouding & improves airflow efficiency
Thick deck surface allows angle milling & increases rigidity; Improves head gasket retention
Multi-angle intake & radiused exhaust seats for superior flow & increased horsepower
